Troubleshooting (A/T): Notes

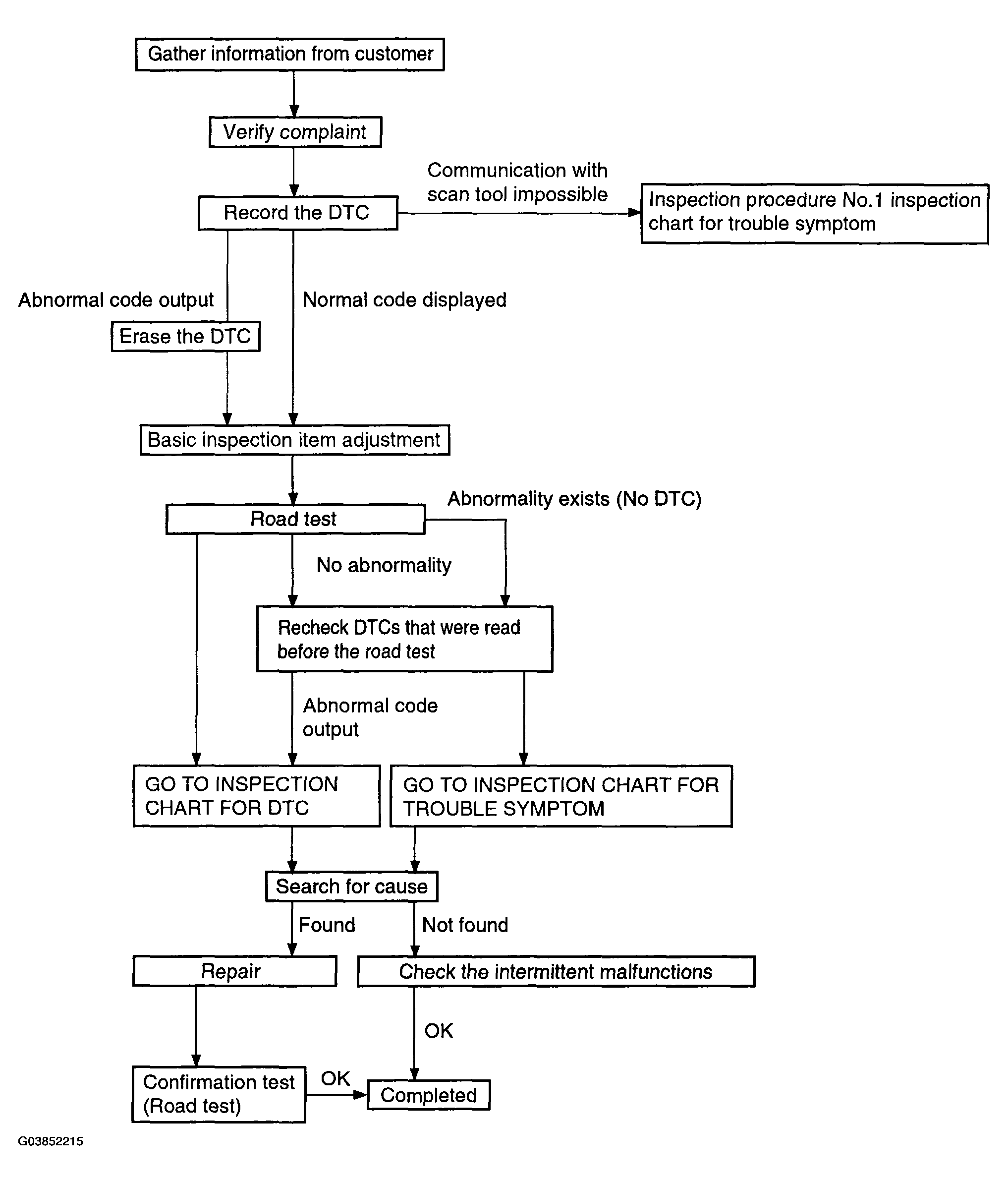

Fig 1: Automatic Transaxle System Troubleshooting Flow Chart

G03852215

Courtesy of HYUNDAI MOTOR CO.
