Inspection Procedure 8

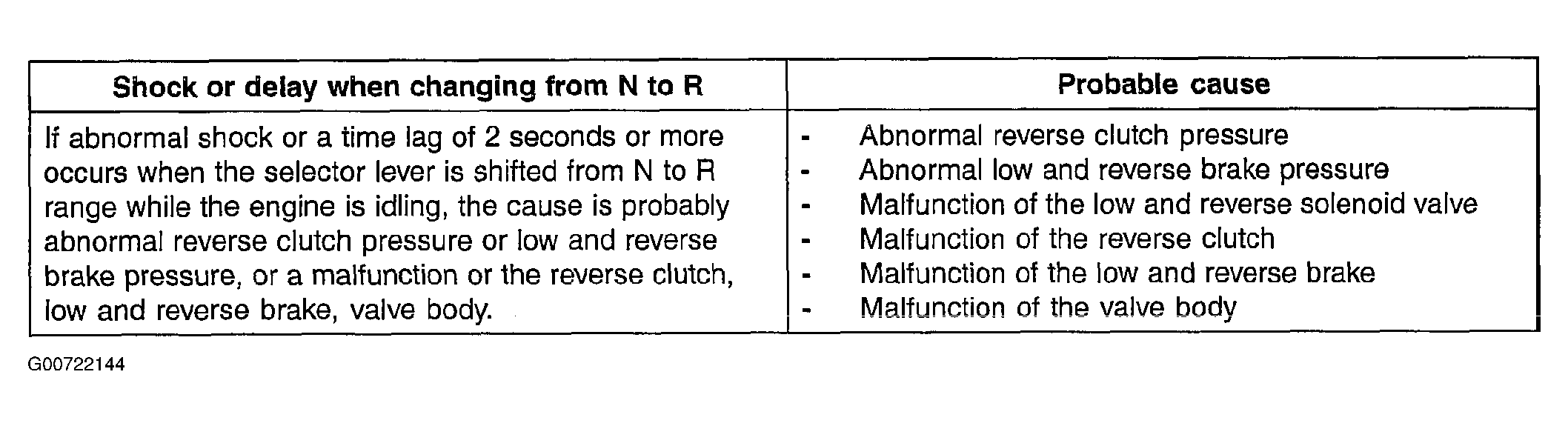

Fig 1: Inspection Procedure 8 (1 Of 2)
G00722144Courtesy of HYUNDAI MOTOR CO.

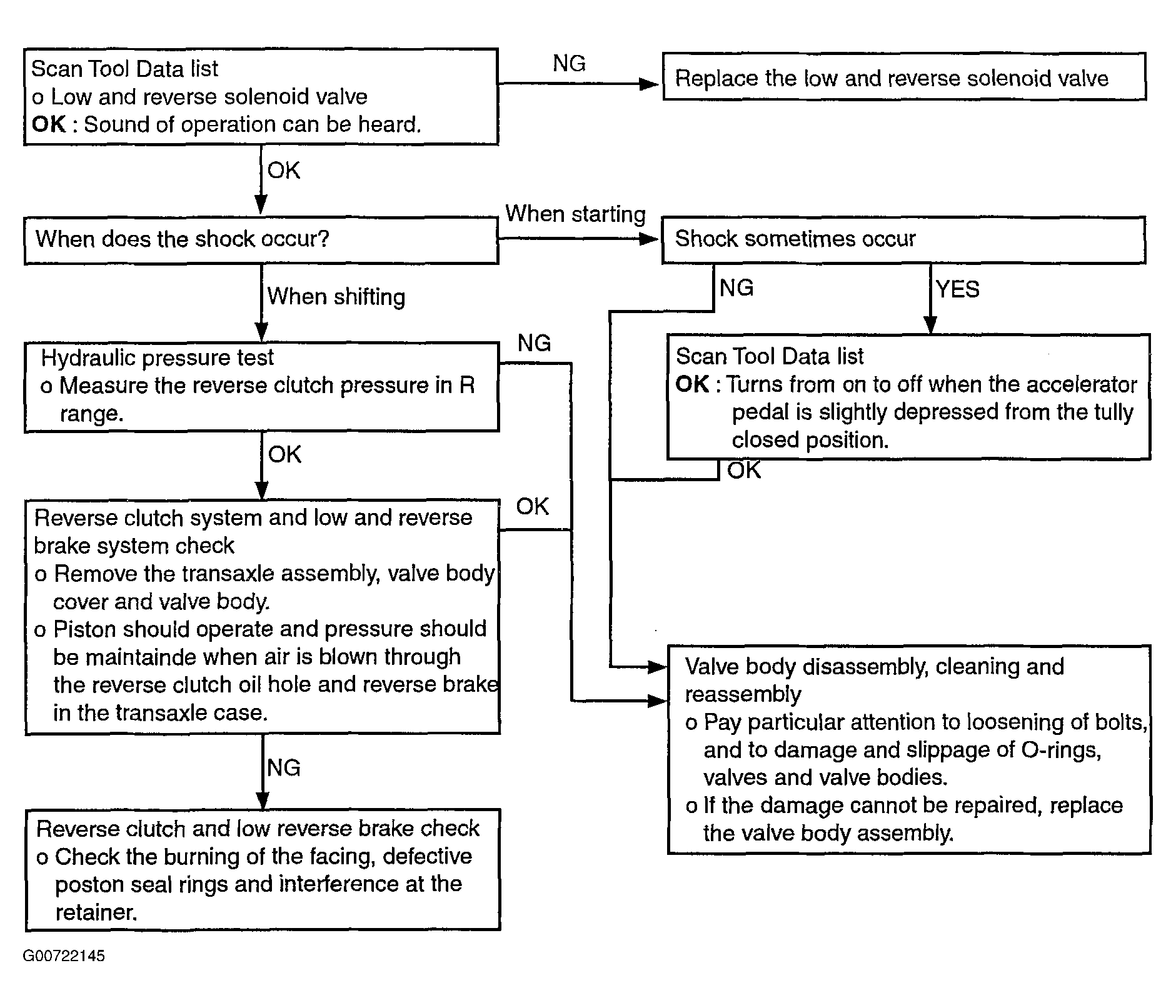

Fig 2: Inspection Procedure 8 (2 Of 2)
G00722145Courtesy of HYUNDAI MOTOR CO.
