Inspection Chart For Trouble Symptoms

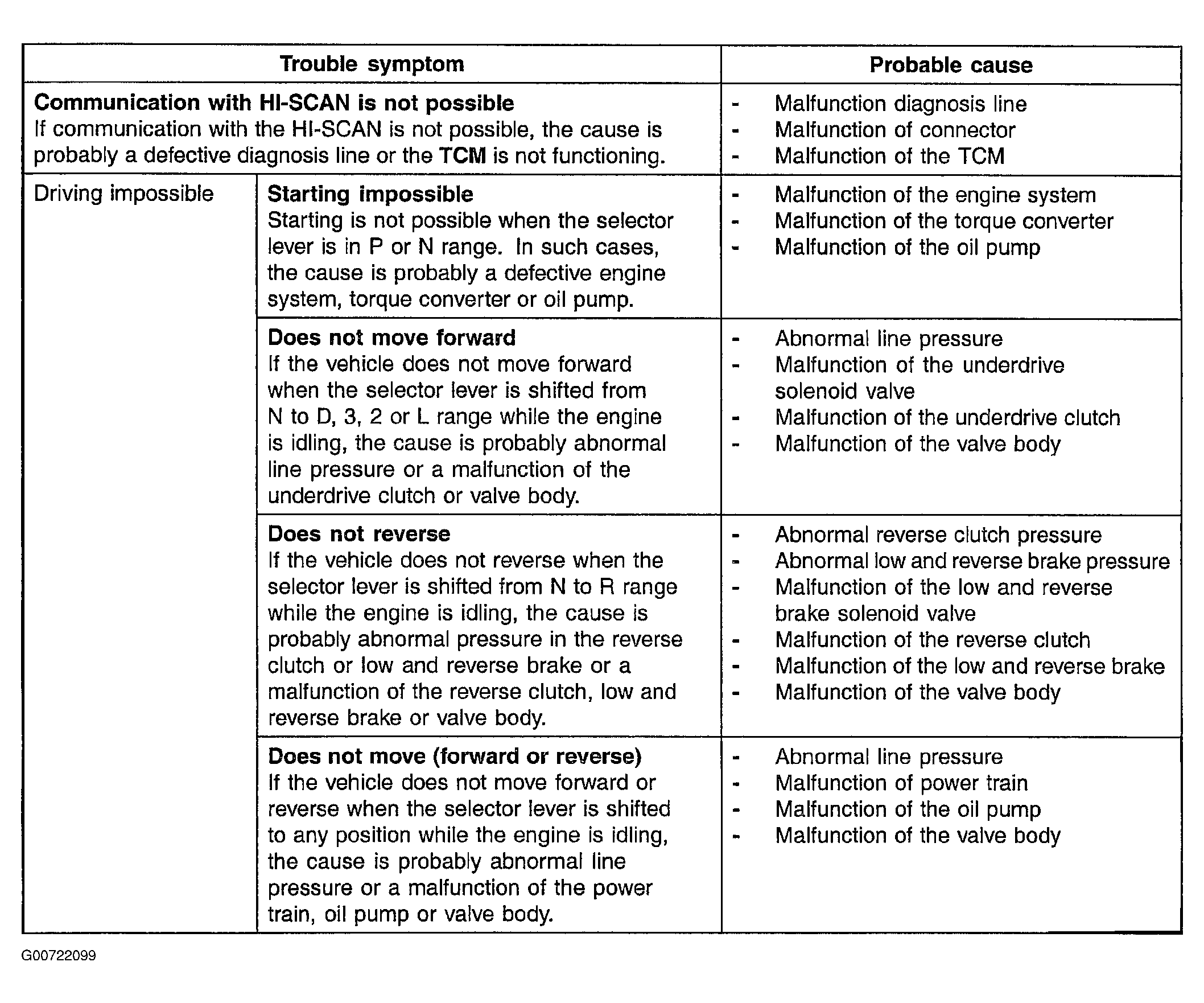

Fig 1: Inspection Chart For Trouble Symptoms (1 Of 3)
G00722099Courtesy of HYUNDAI MOTOR CO.

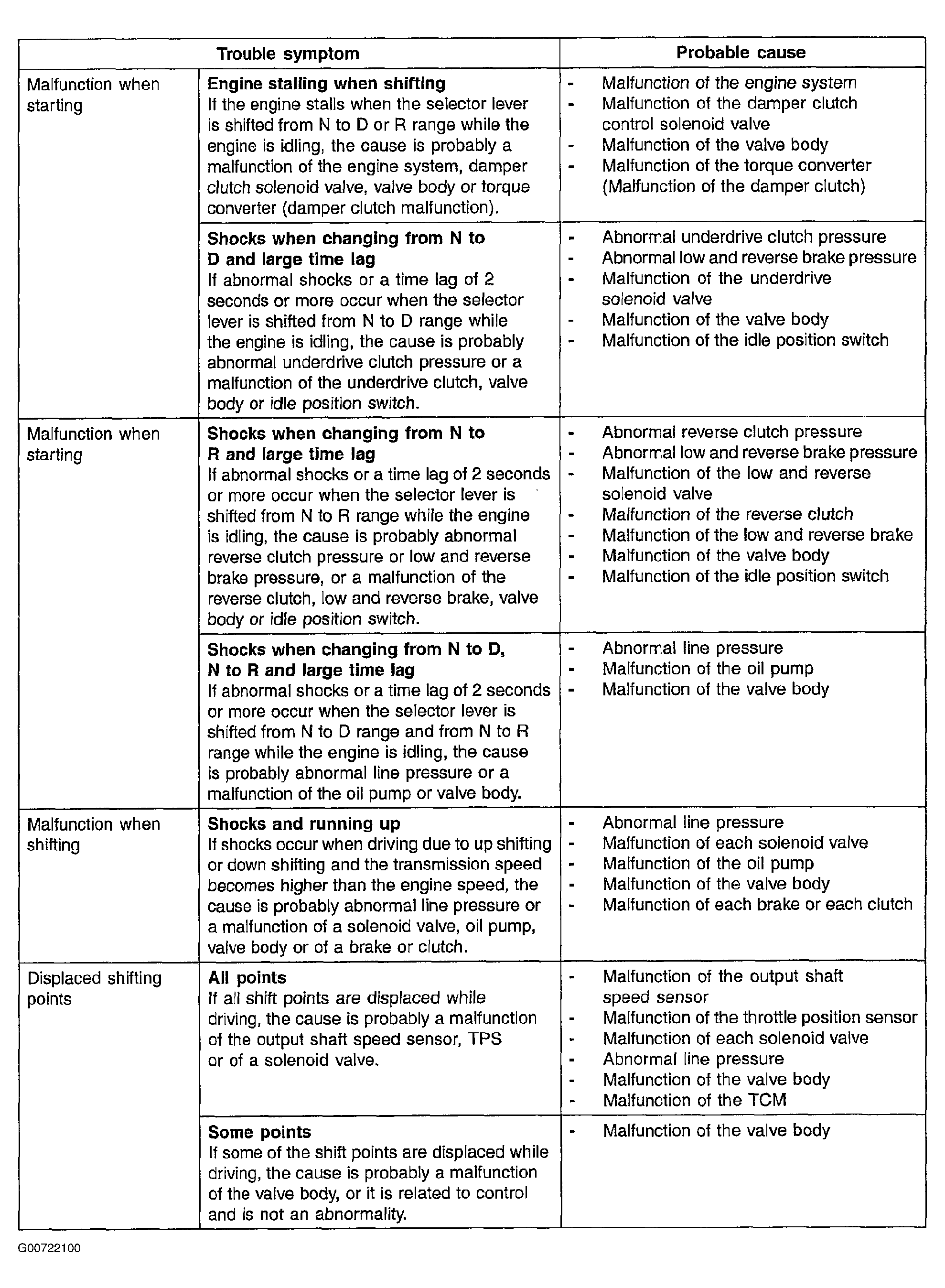

Fig 2: Inspection Chart For Trouble Symptoms (2 Of 3)
G00722100Courtesy of HYUNDAI MOTOR CO.

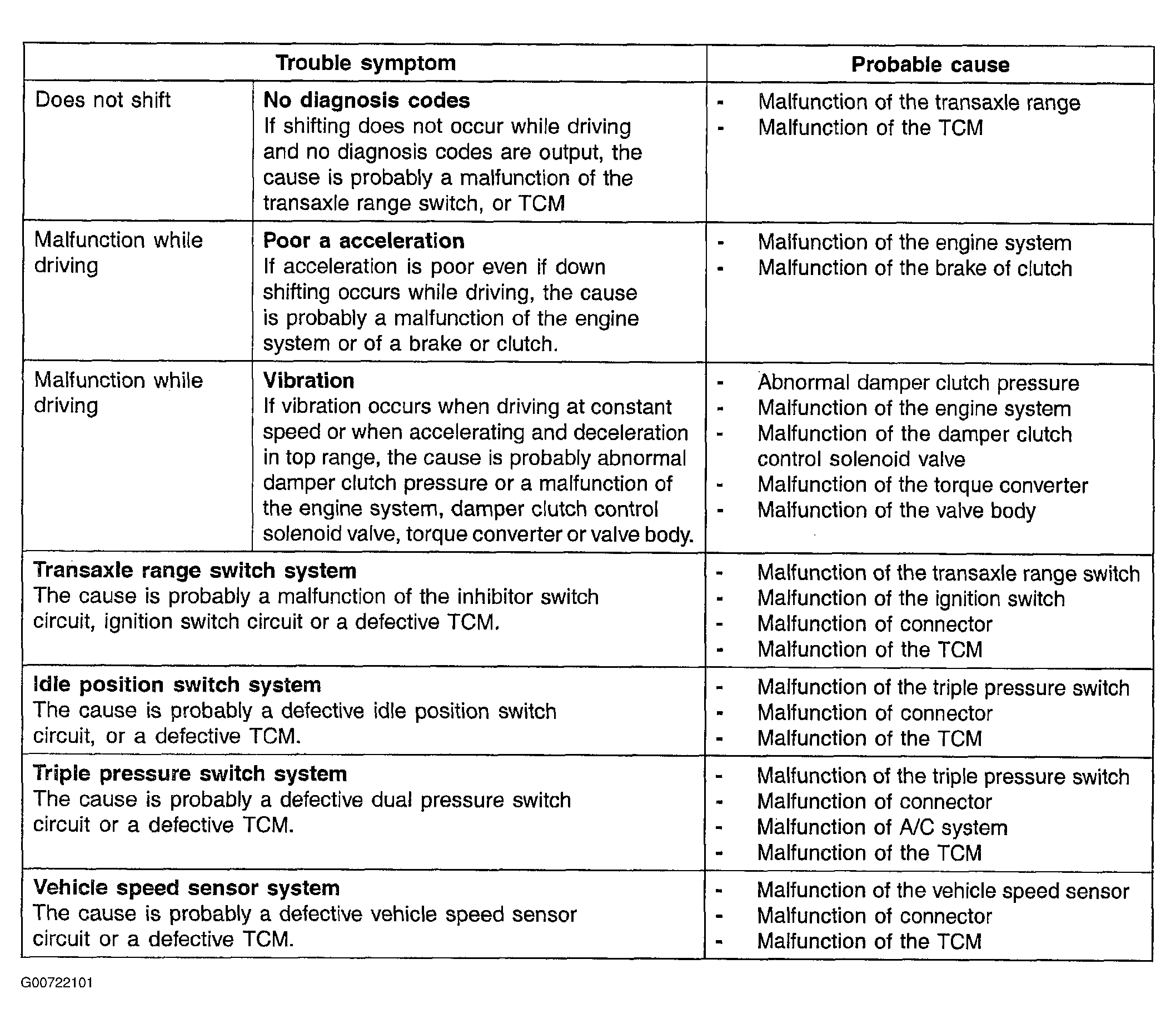

Fig 3: Inspection Chart For Trouble Symptoms (3 Of 3)
G00722101Courtesy of HYUNDAI MOTOR CO.
