Automatic Transaxle Shift Control: Components

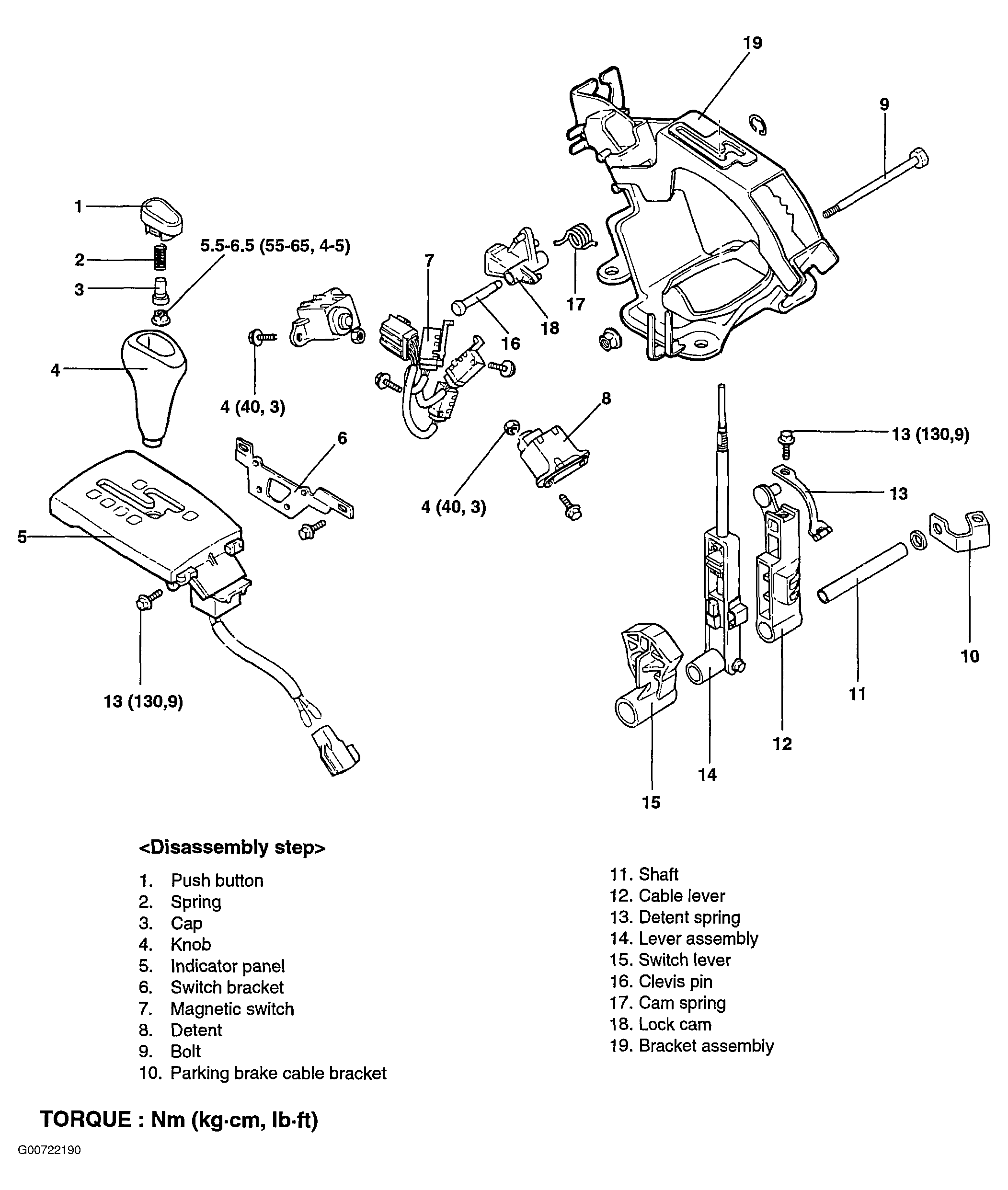

Fig 1: Identifying Shift Control Components

G00722190

Courtesy of HYUNDAI MOTOR CO.
