Fuel Tank: Components

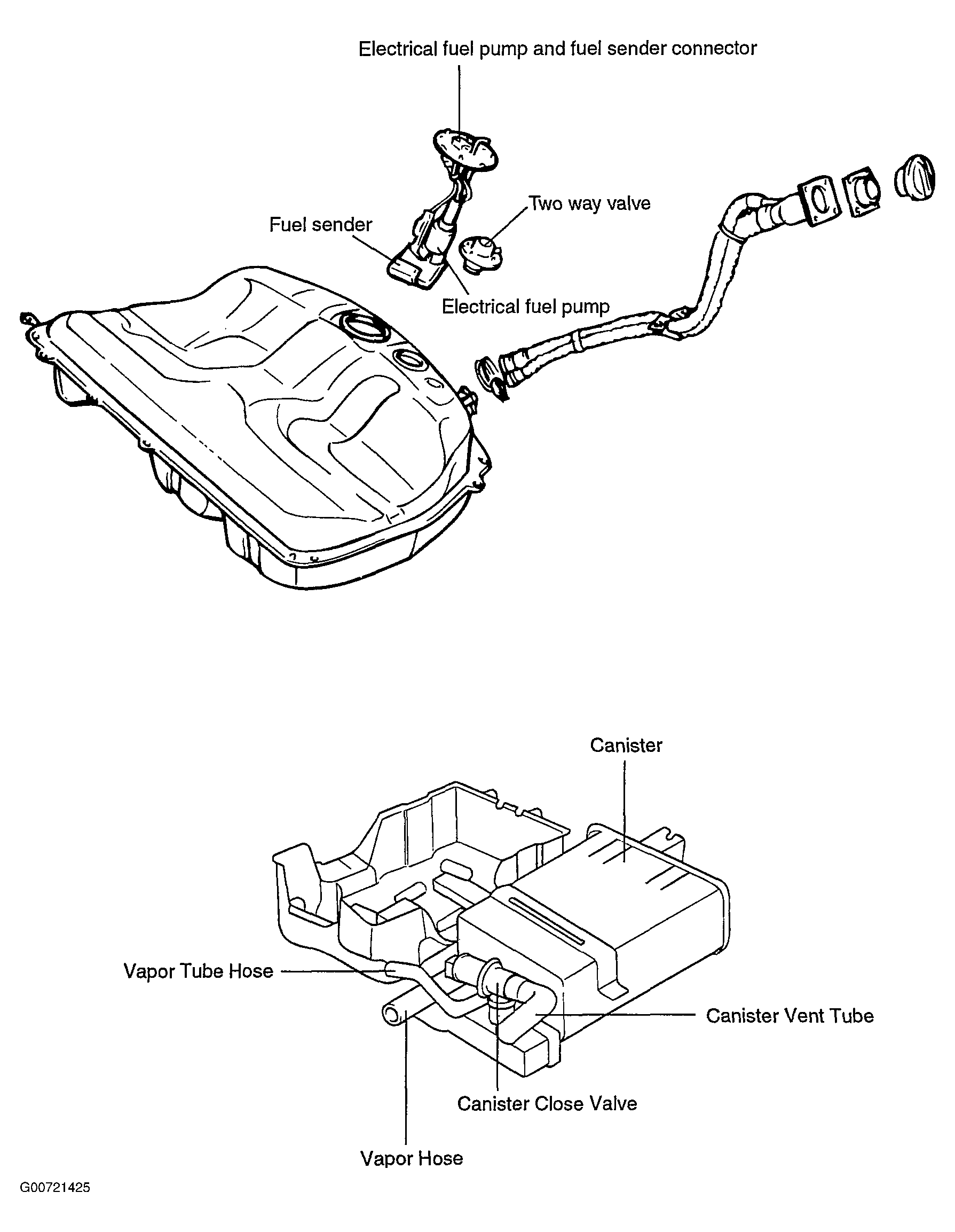

Fig 1: Identifying Fuel Tank Components
G00721425Courtesy of HYUNDAI MOTOR CO.
