Sunroof / Moonroof Module: Testing and Inspection

SUNROOF CONTROLLER

INSPECTION
1. Pull down the rear headliner.




2. Disconnect the sunroof switch side connector from the sunroof controller.

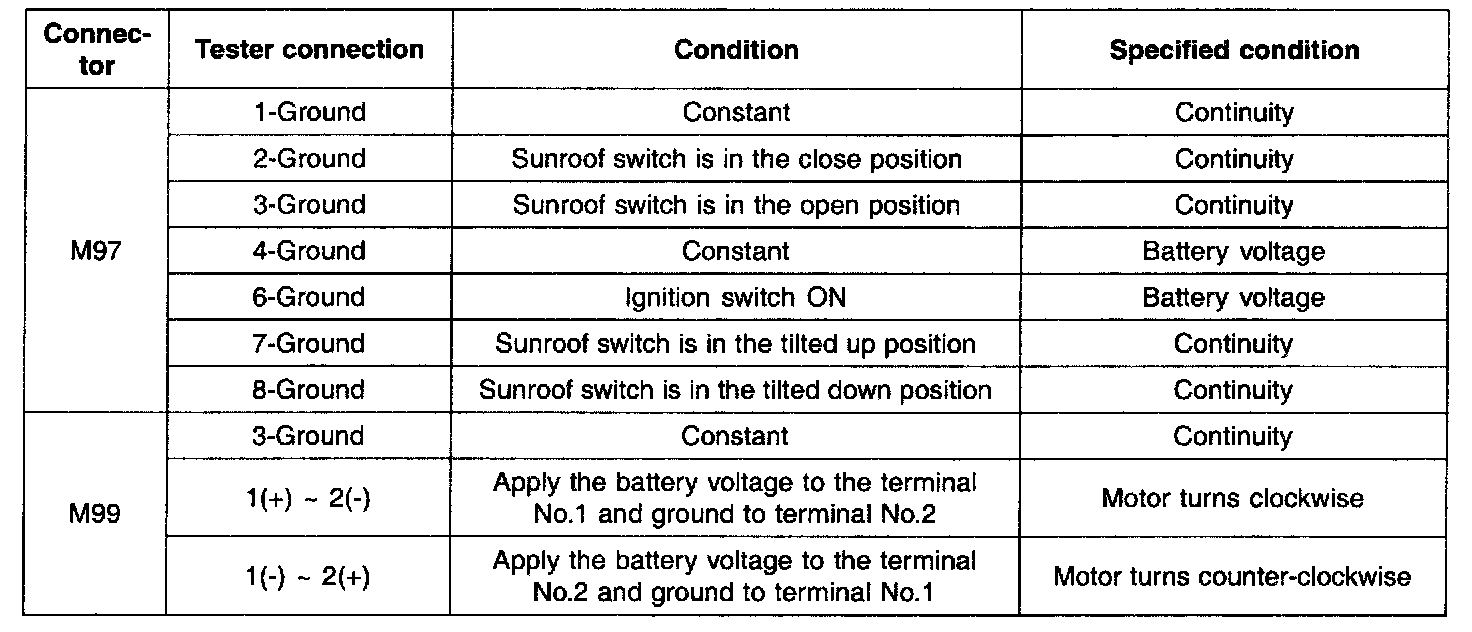

3. Inspect the connectors on the wire harness side from the controller, as shown in the table.
