Automatic Transaxle System
>>
Automatic Transaxle System
>>
Inspection Process For Diagnostic Trouble Codes
>>
P1723: A/T Control Relay System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
P1723: A/T Control Relay System

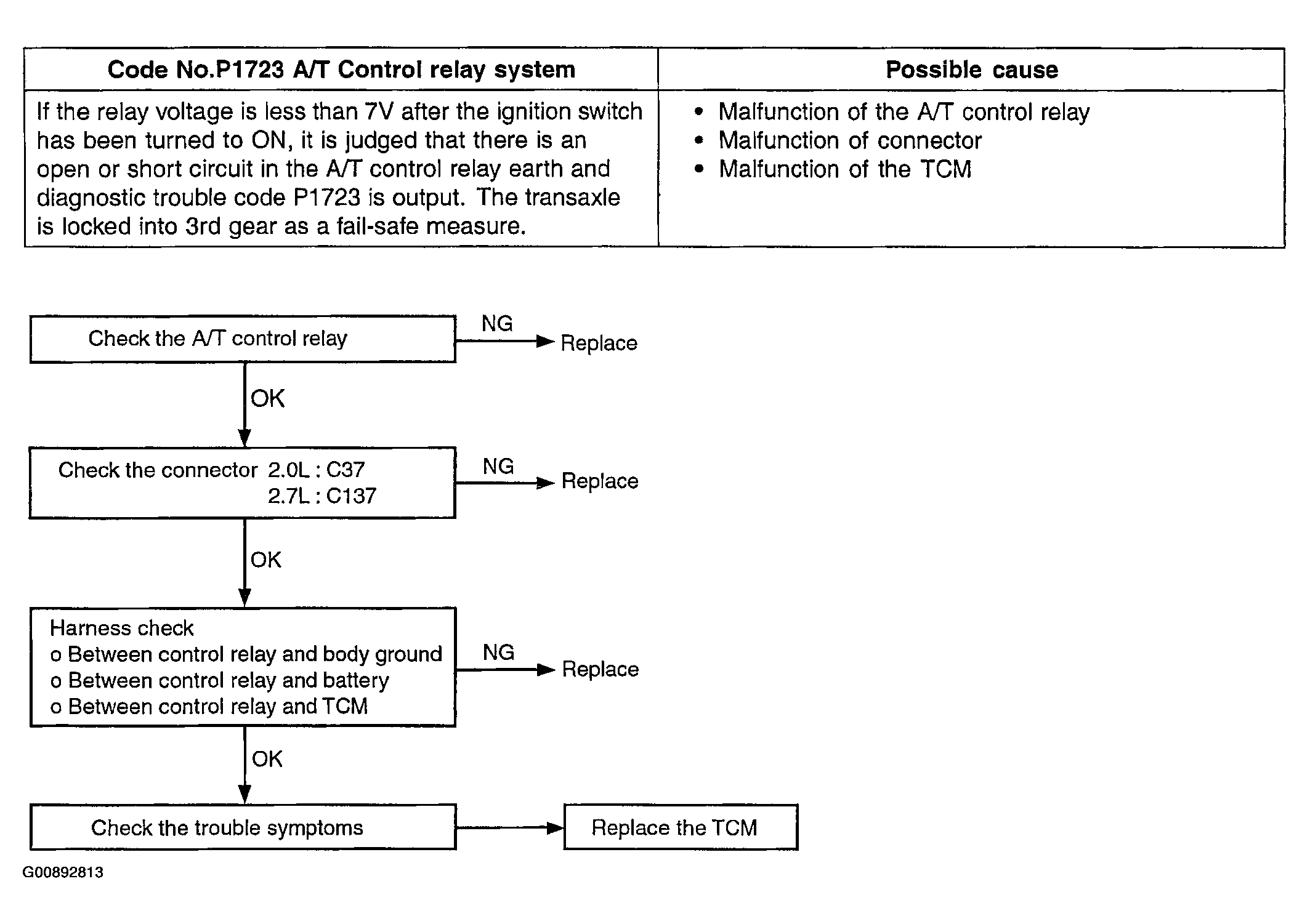

Fig 1: P1723: A/T Control Relay System
Courtesy of HYUNDAI MOTOR CO.
