DTC P0036: O2 Sensor Heater Control Circuit (Bank 1, Sensor 2): DTC Detecting Condition

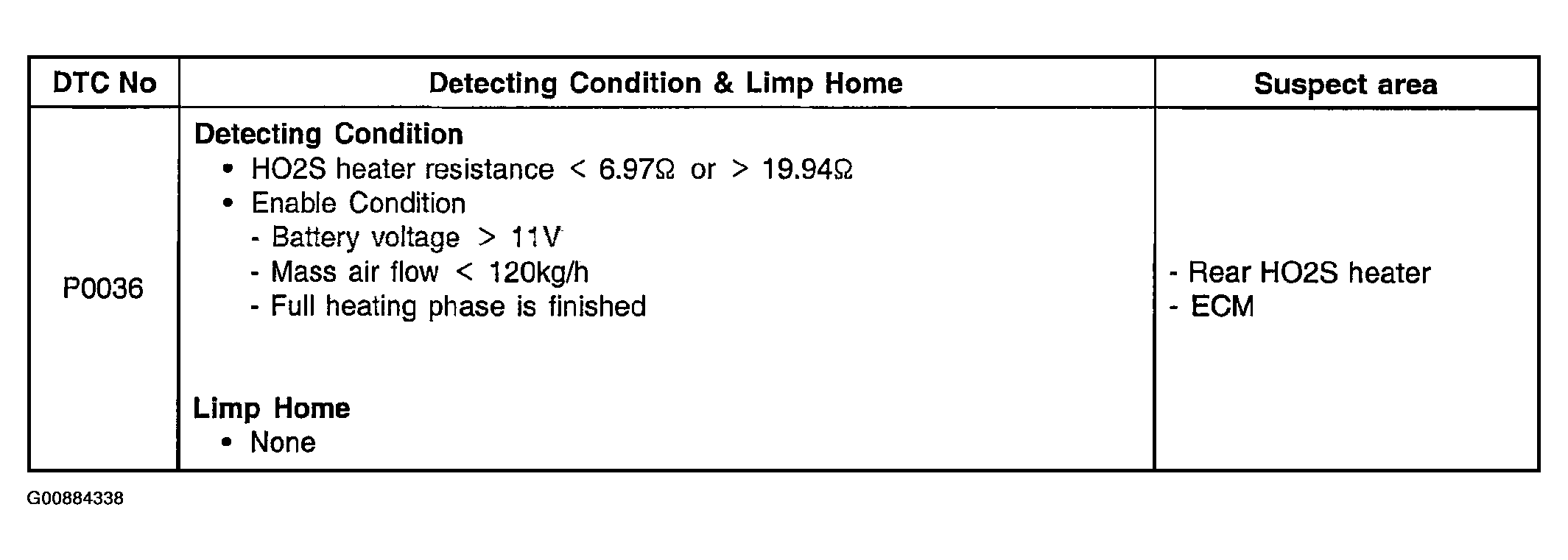

Fig 1: DTC Detecting Condition
G00884338Courtesy of HYUNDAI MOTOR CO.
