Circuit Diagram For Cruise Control System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram For Cruise Control System

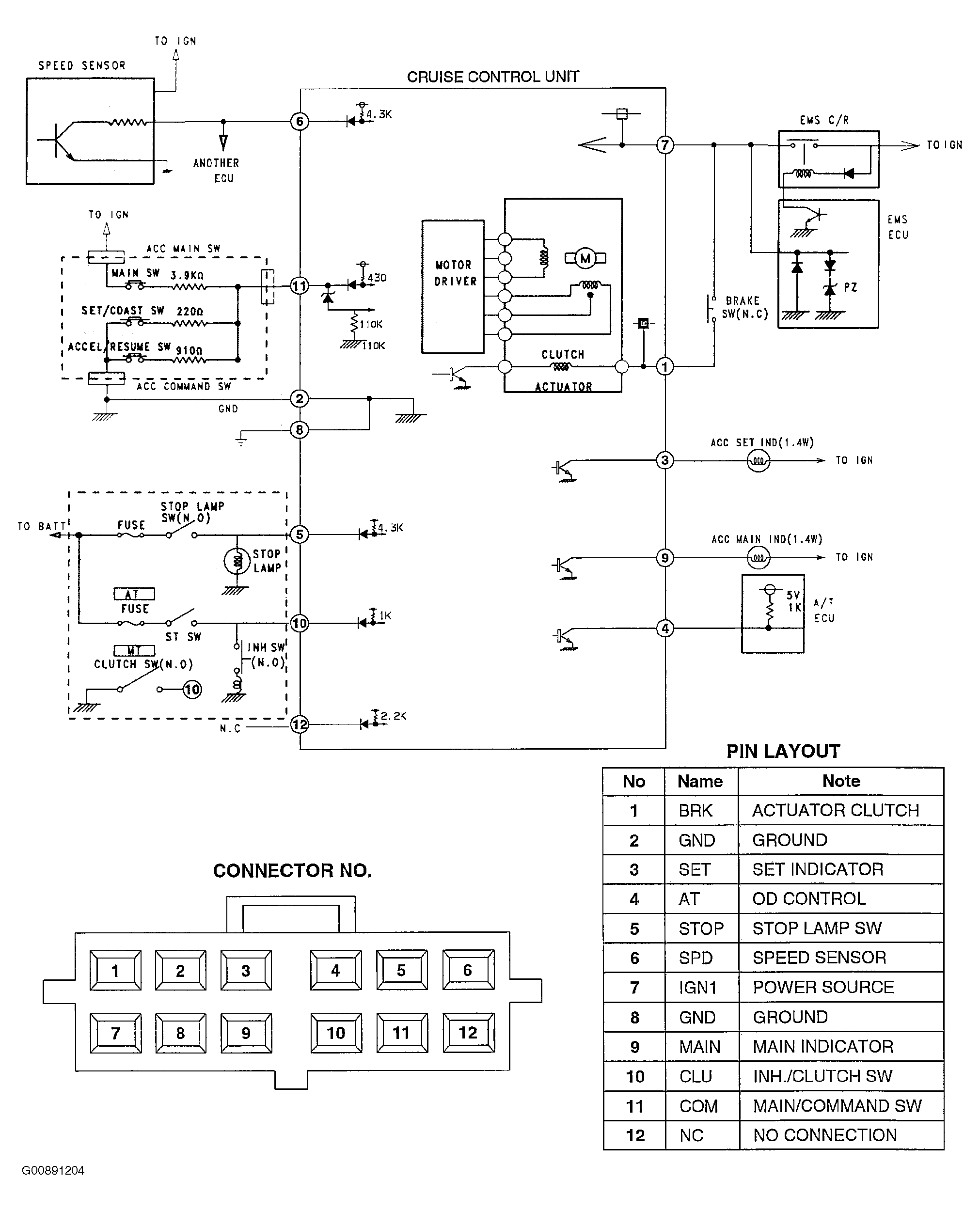

Fig 1: Circuit Diagram For Cruise Control System
Courtesy of HYUNDAI MOTOR CO.
