Engine Mounting

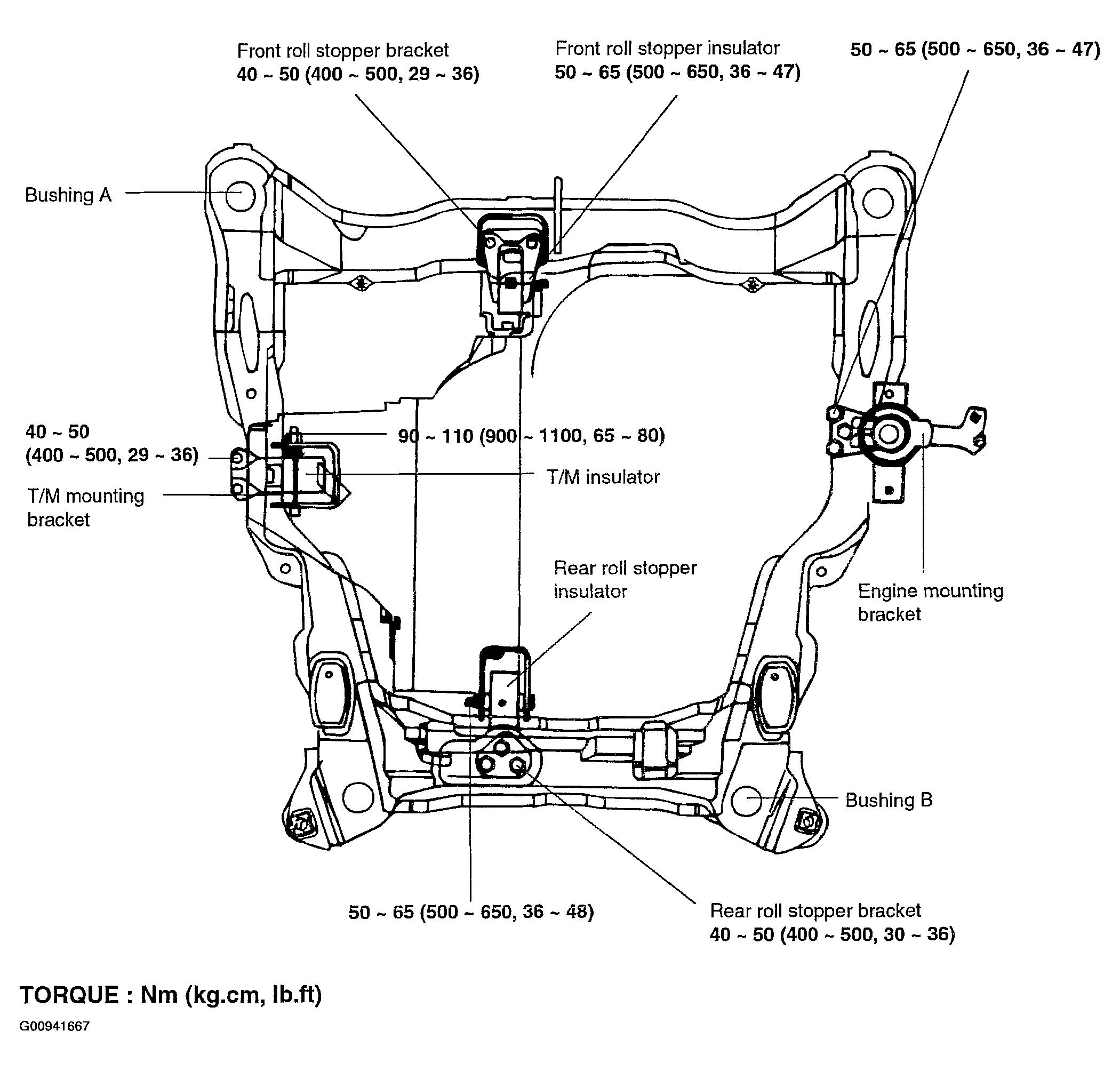

Fig 1: Locating Engine Mounts
G00941667Courtesy of HYUNDAI MOTOR CO.


  1. Remove the engine mounting insulator bolts.
  2. Remove the engine mounting bracket from the engine.

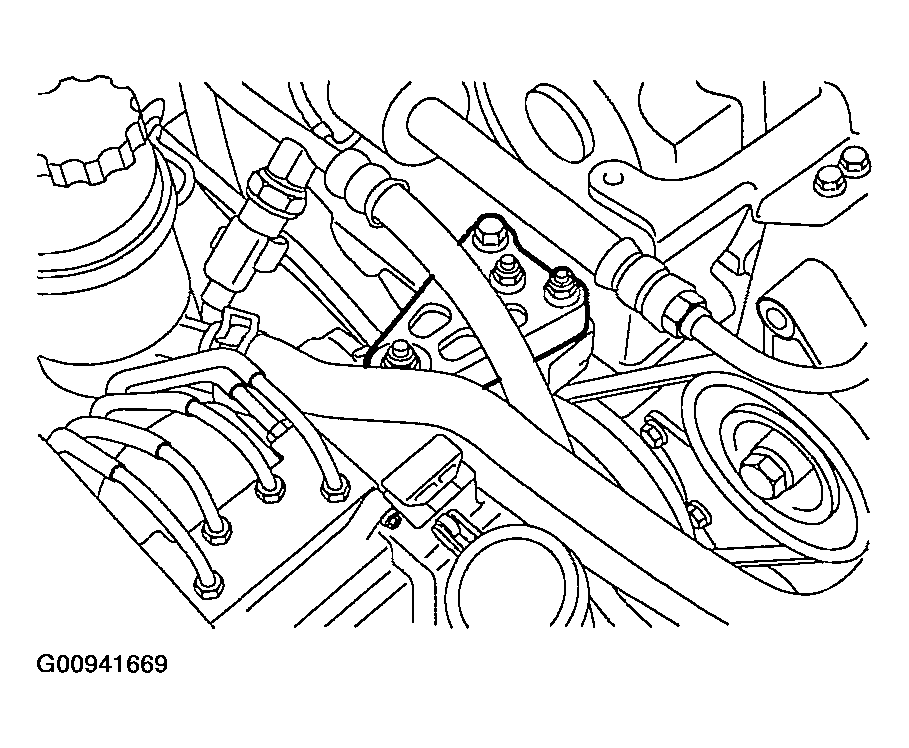

Fig 1: Locating Engine Mounting Bracket
G00941669Courtesy of HYUNDAI MOTOR CO.
