System Block Diagram: Notes

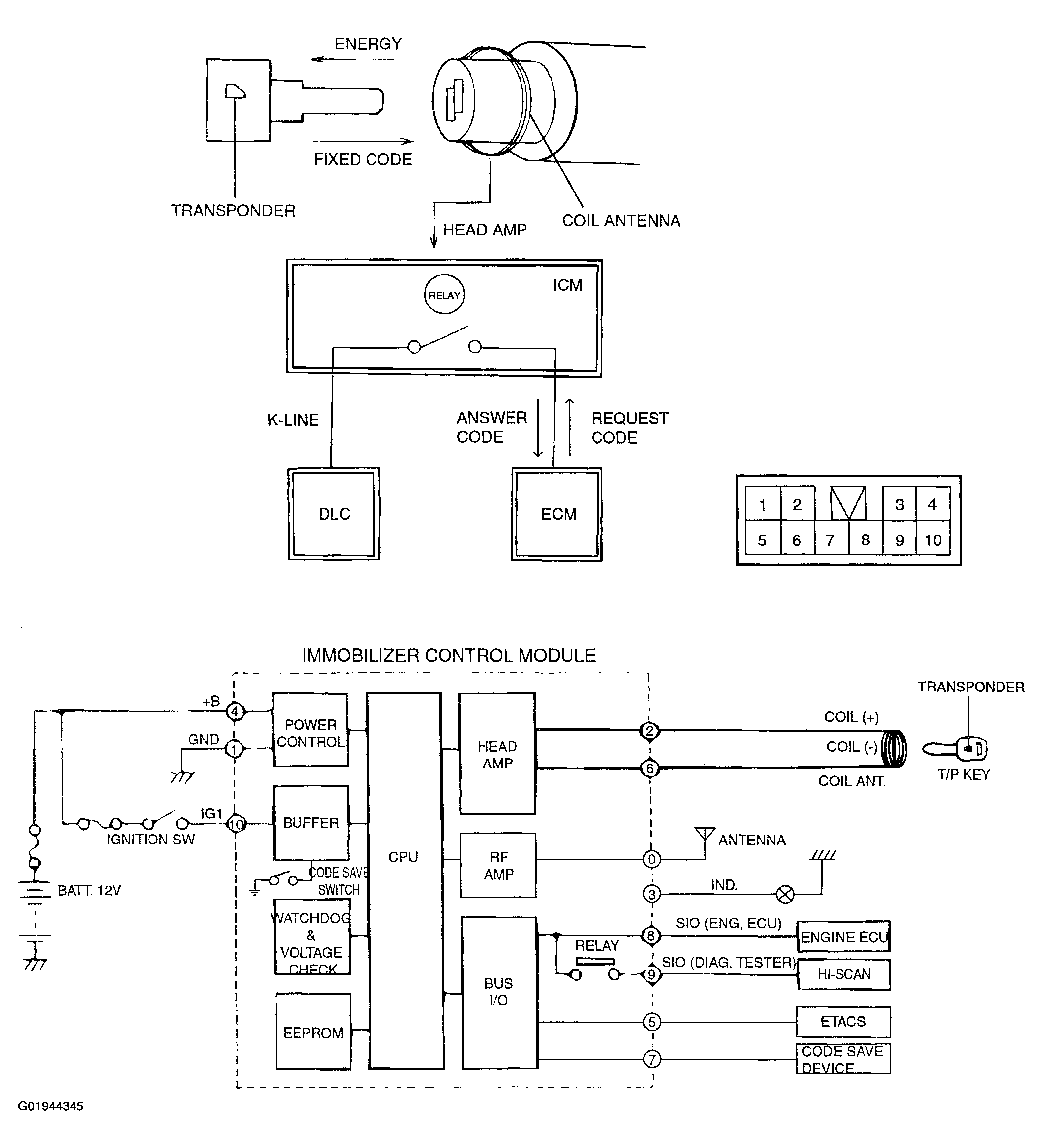

Fig 1: Immobilizer Control Module System Block Diagram

G01944345

Courtesy of HYUNDAI MOTOR CO.
