Automatic Transaxle System
>>
Inspection Procedure For Trouble Symptoms
>>
Inspection Procedure 7
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 7

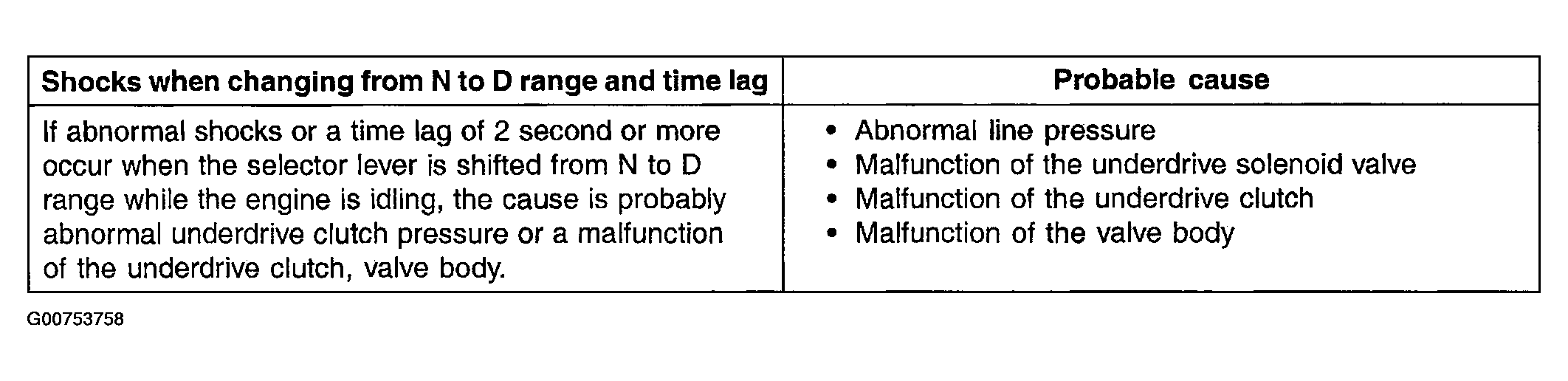

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag, Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

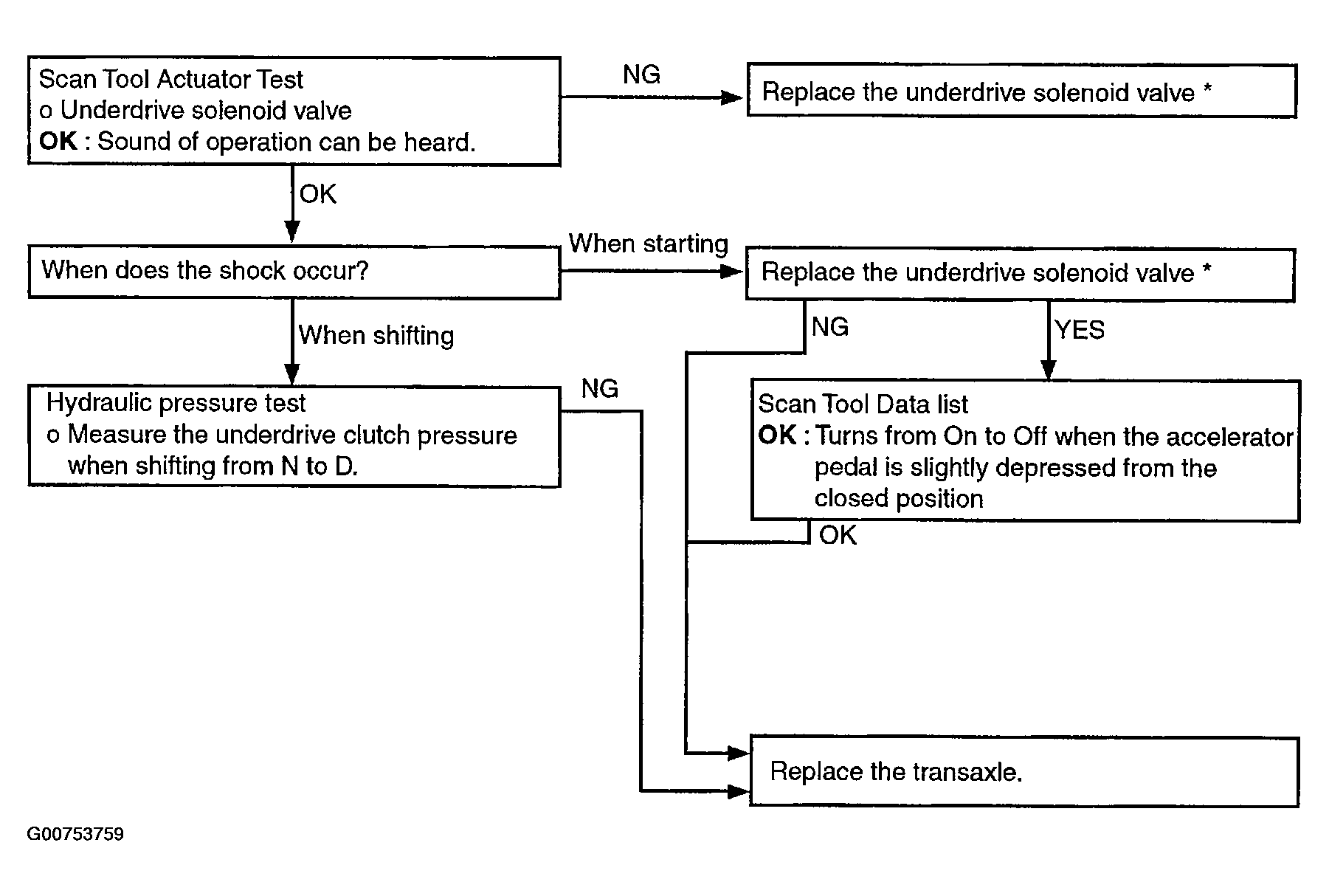

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag, Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
