Location Of MFI Components

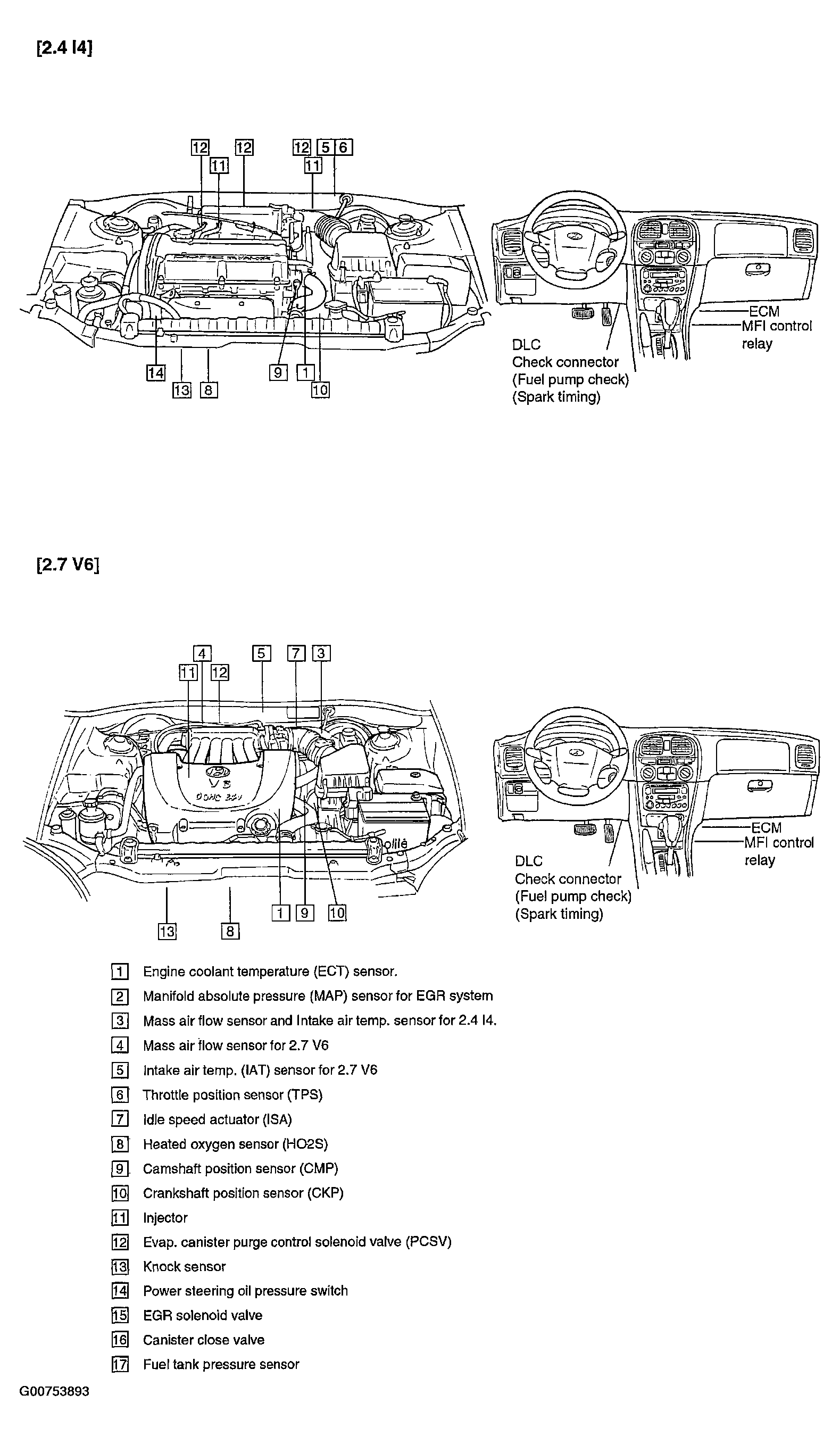

Fig 1: Identifying Location Of MFI Components

Courtesy of HYUNDAI MOTOR CO.

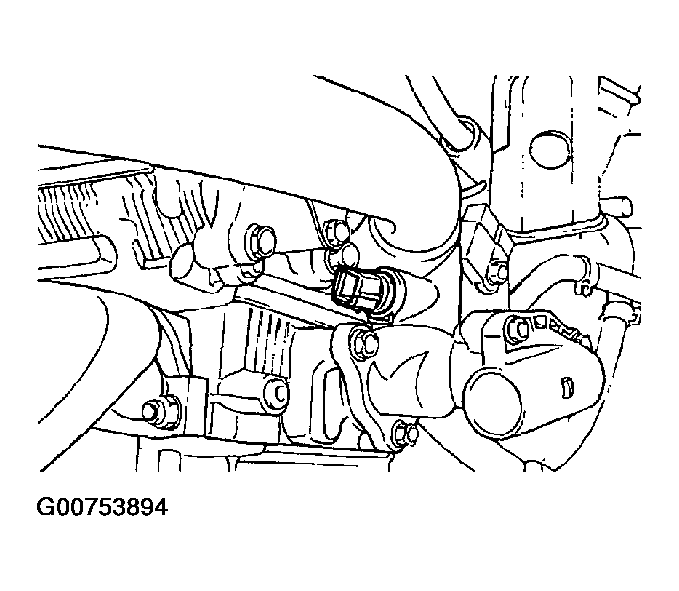

Fig 2: Identifying ECT Sensor

Courtesy of HYUNDAI MOTOR CO.

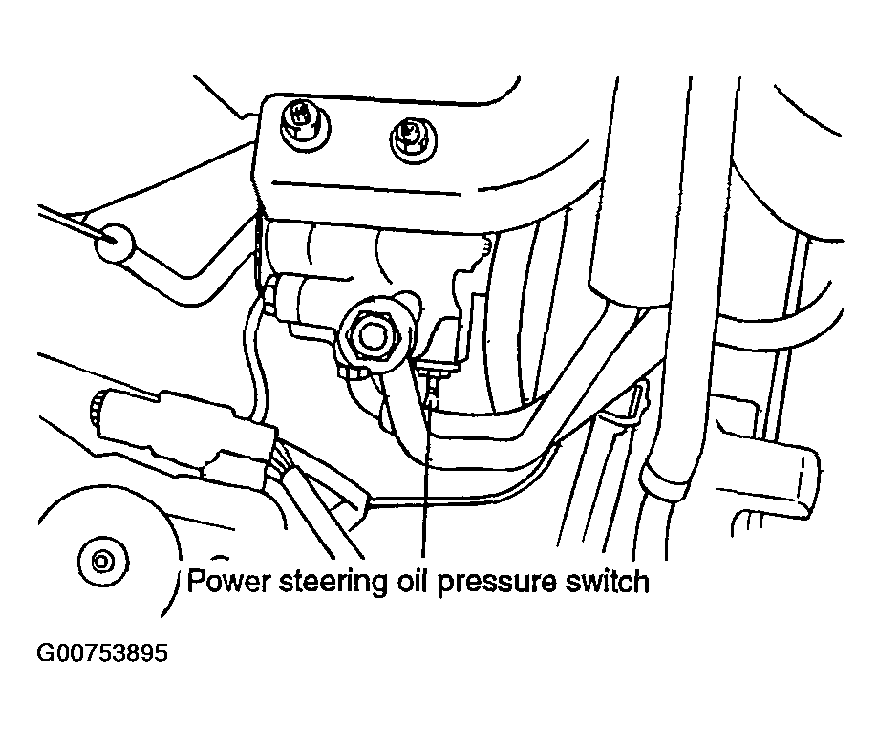

Fig 3: Identifying Power Steering Oil Pressure Switch

Courtesy of HYUNDAI MOTOR CO.

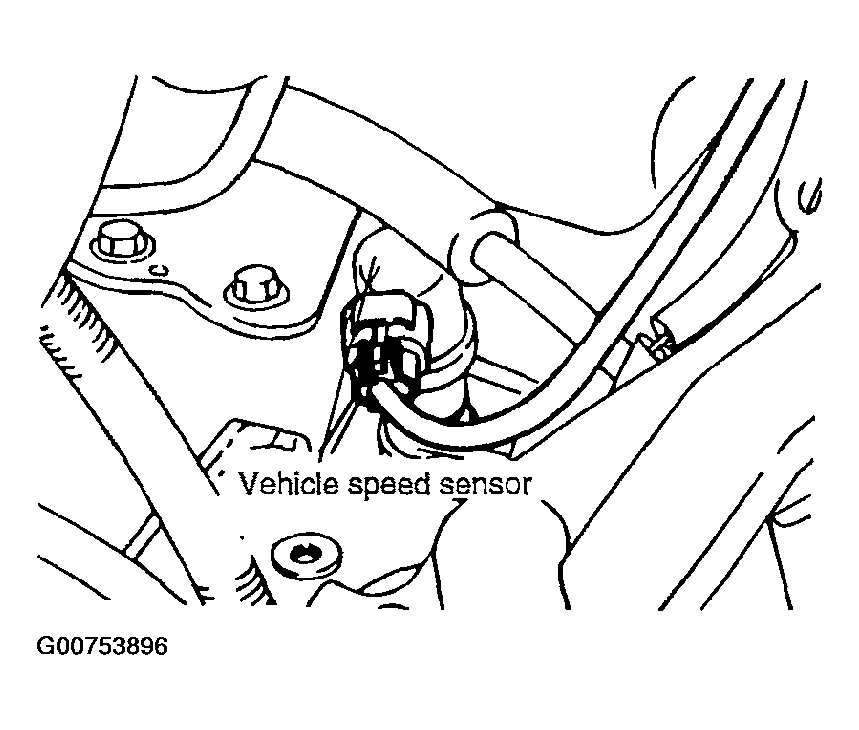

Fig 4: Identifying Vehicle Speed Sensor

Courtesy of HYUNDAI MOTOR CO.

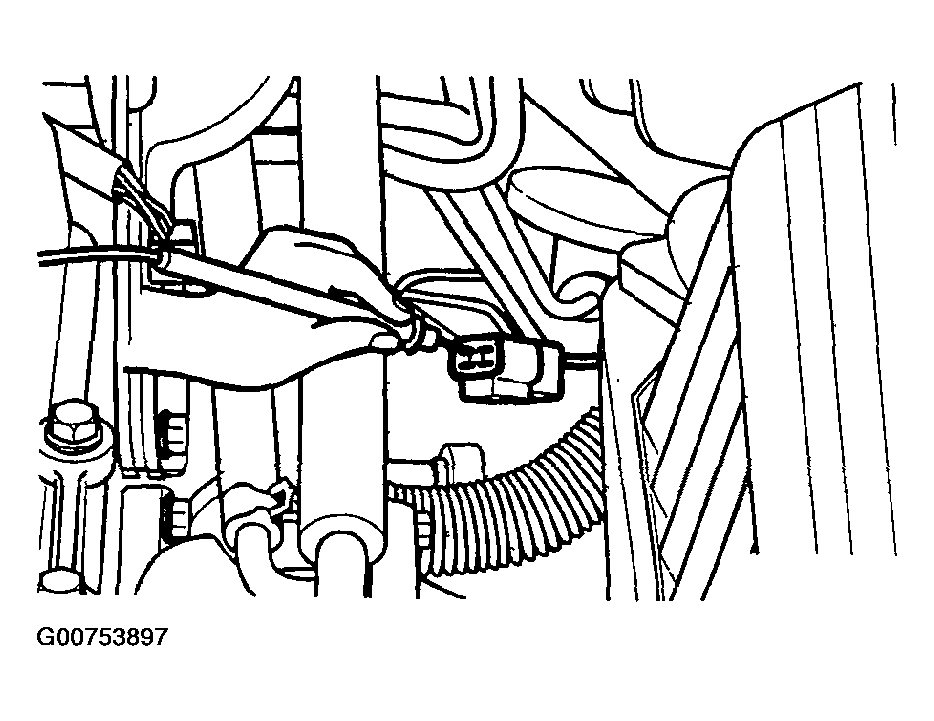

Fig 5: Identifying Ignition Timing Adjustment Terminal

Courtesy of HYUNDAI MOTOR CO.

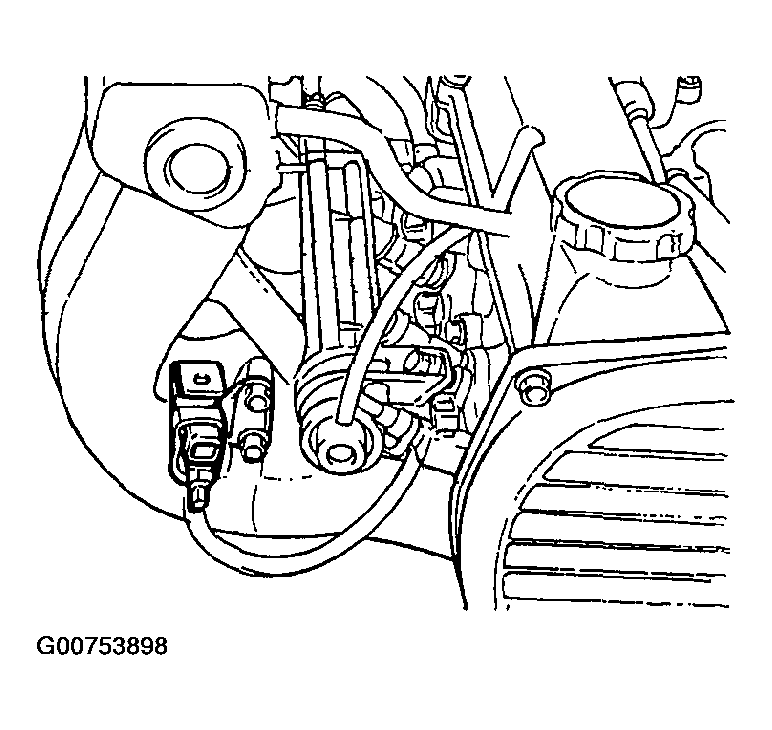

Fig 6: Identifying EVAP Solenoid Valve

Courtesy of HYUNDAI MOTOR CO.

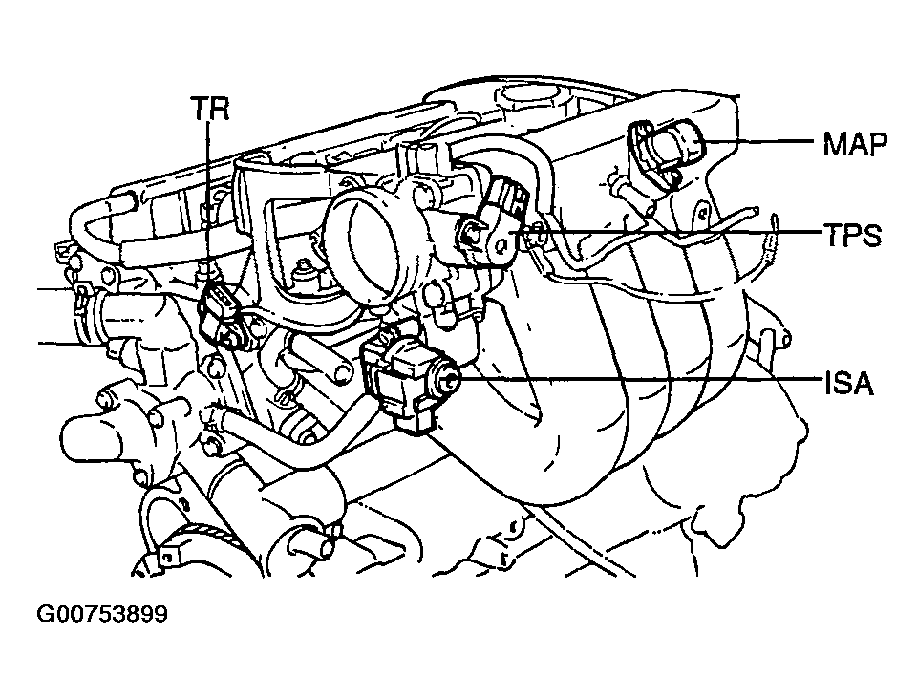

Fig 7: Identifying MAP, TPS, ISA, TRY

Courtesy of HYUNDAI MOTOR CO.

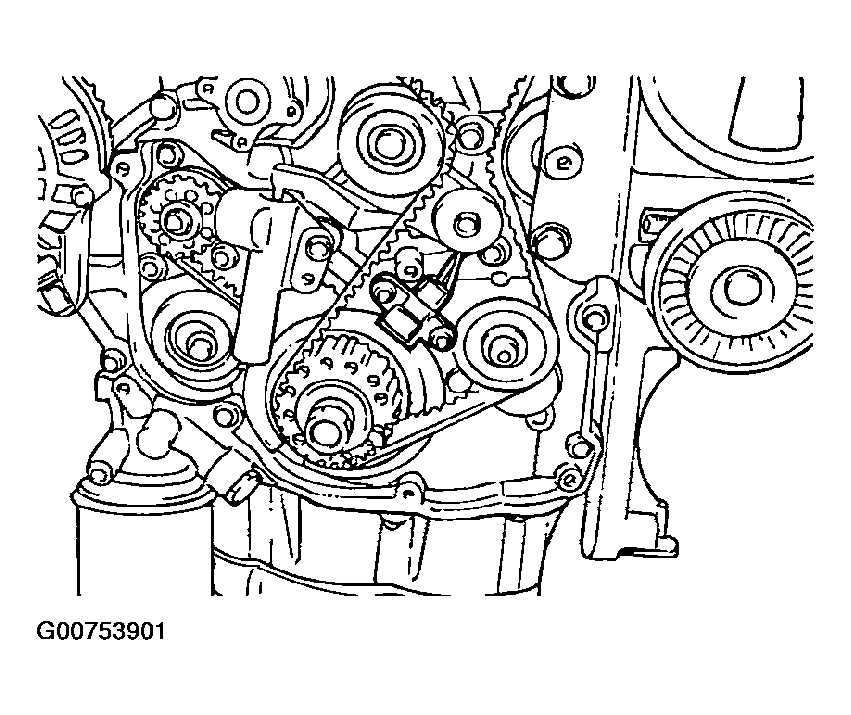

Fig 8: Identifying CMP Sensor

Courtesy of HYUNDAI MOTOR CO.

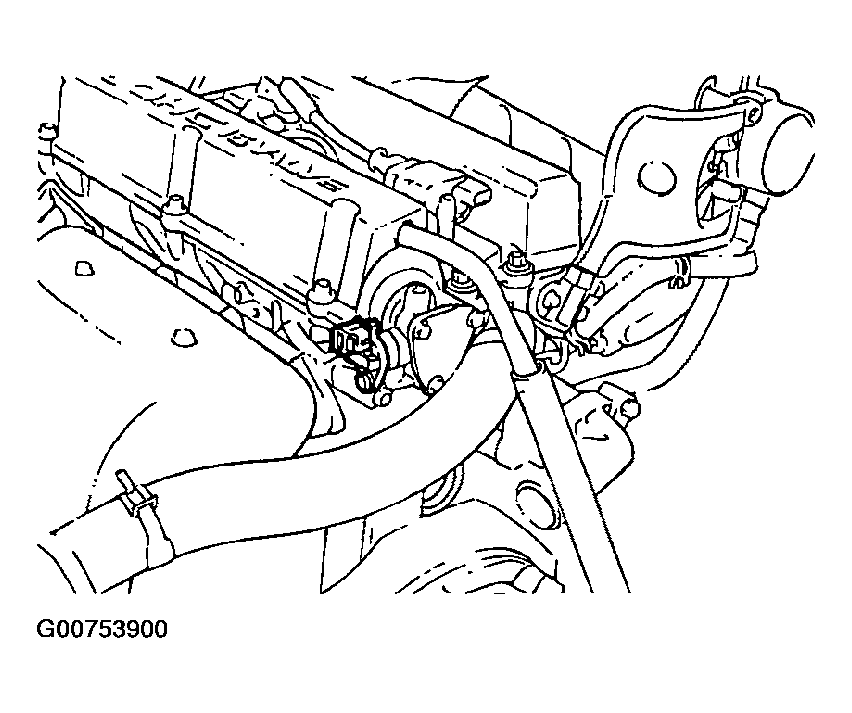

Fig 9: Identifying CKP

Courtesy of HYUNDAI MOTOR CO.

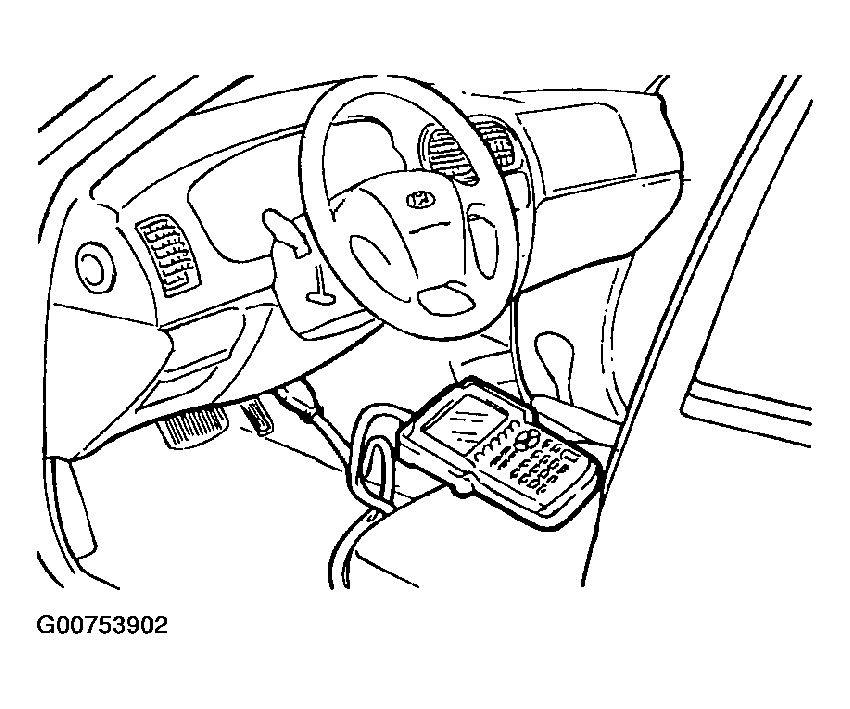

Fig 10: Identifying Data Link Connector

Courtesy of HYUNDAI MOTOR CO.

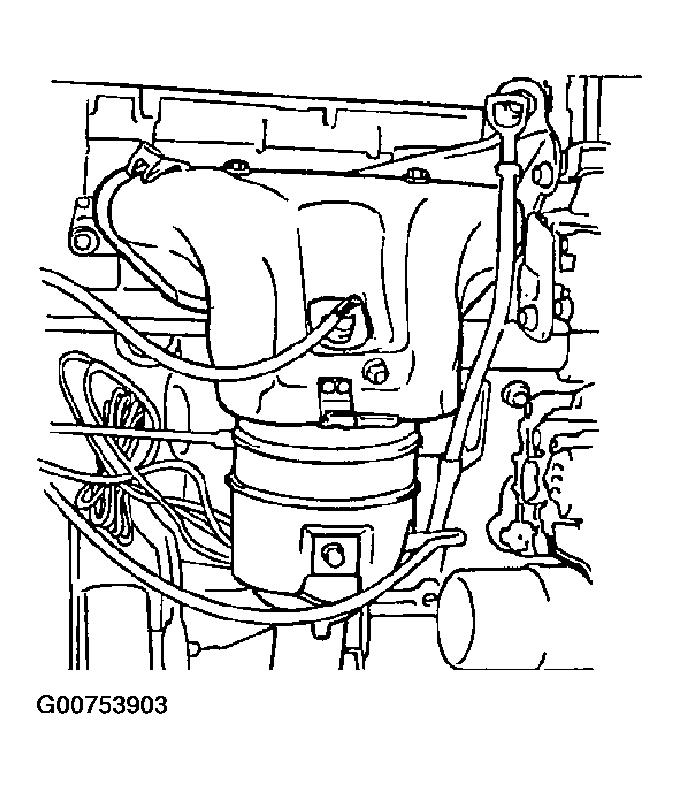

Fig 11: Identifying Heated Oxygen Sensor (HO2S)

Courtesy of HYUNDAI MOTOR CO.

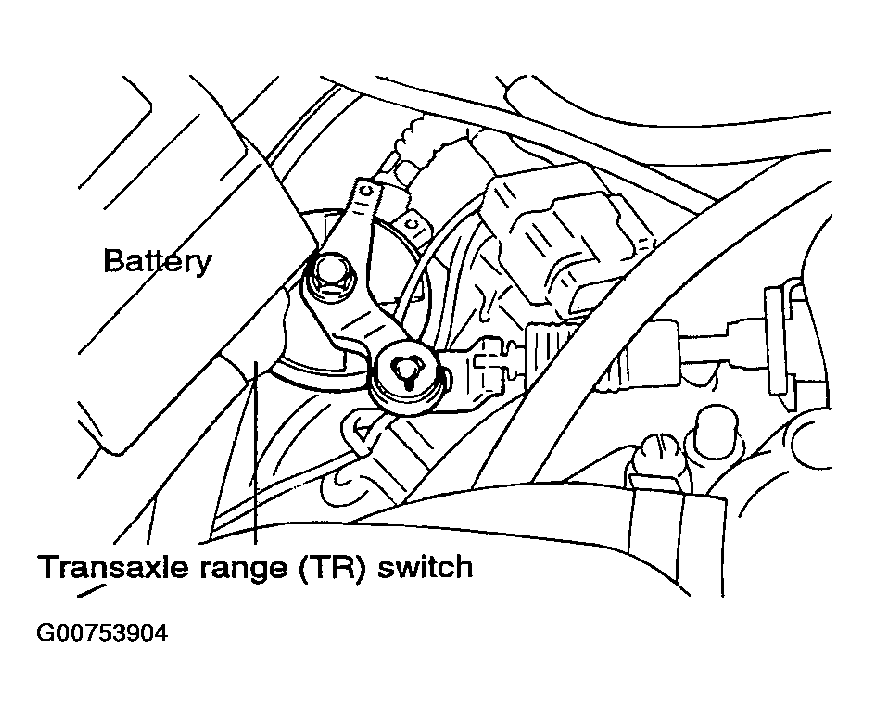

Fig 12: Identifying Transaxle Range (TRY) Switch

Courtesy of HYUNDAI MOTOR CO.

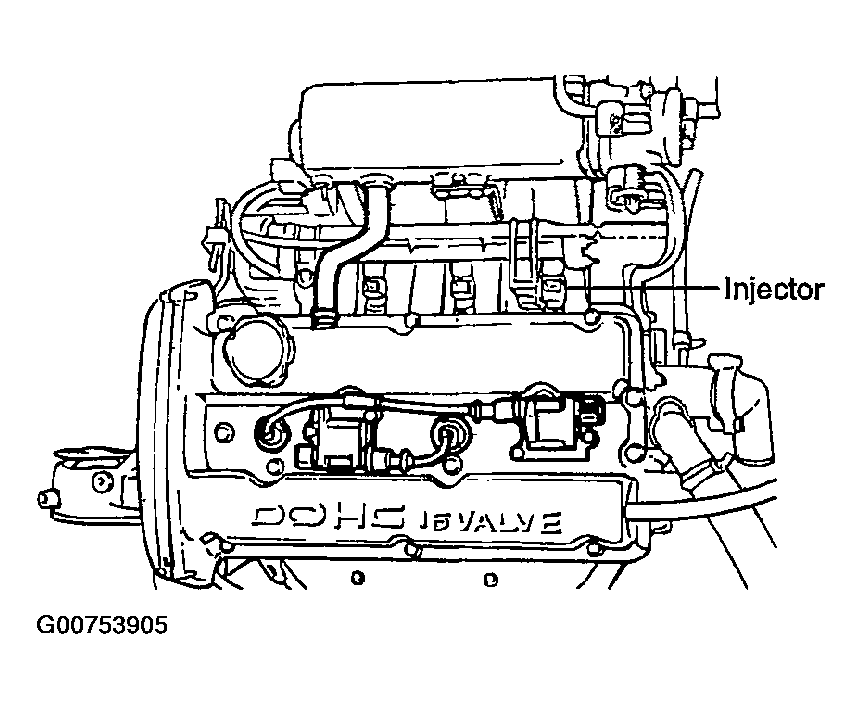

Fig 13: Identifying Injectors

Courtesy of HYUNDAI MOTOR CO.

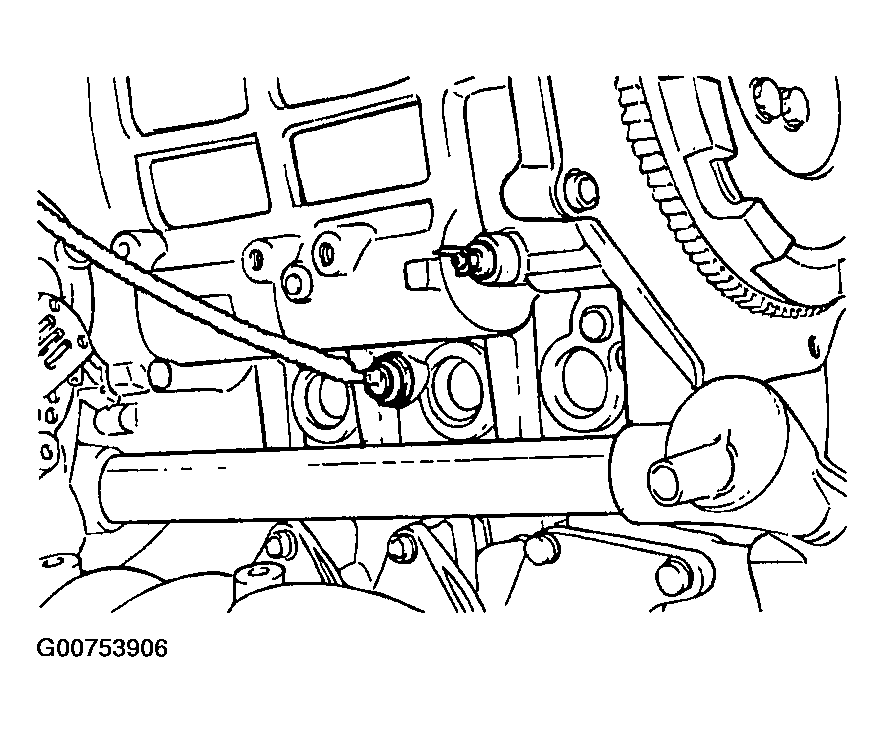

Fig 14: Identifying Knock Sensor

Courtesy of HYUNDAI MOTOR CO.
