Manual Transaxle Shift Control: Removal

  1. Remove the console assembly.
    1. Pry the rear upper cover from the floor console with a flat-tip screwdriver.
      Fig 1: View Of Rear Upper Cover Removed From Floor Console
      G01831273Courtesy of HYUNDAI MOTOR CO.
    2. Remove the front upper cover from the floor console after removing 2 screws.
      Fig 2: Identifying Front Upper Cover Screws
      G01831274Courtesy of HYUNDAI MOTOR CO.
    3. Remove the floor console mounting screws (2EA) and bolts (2EA).

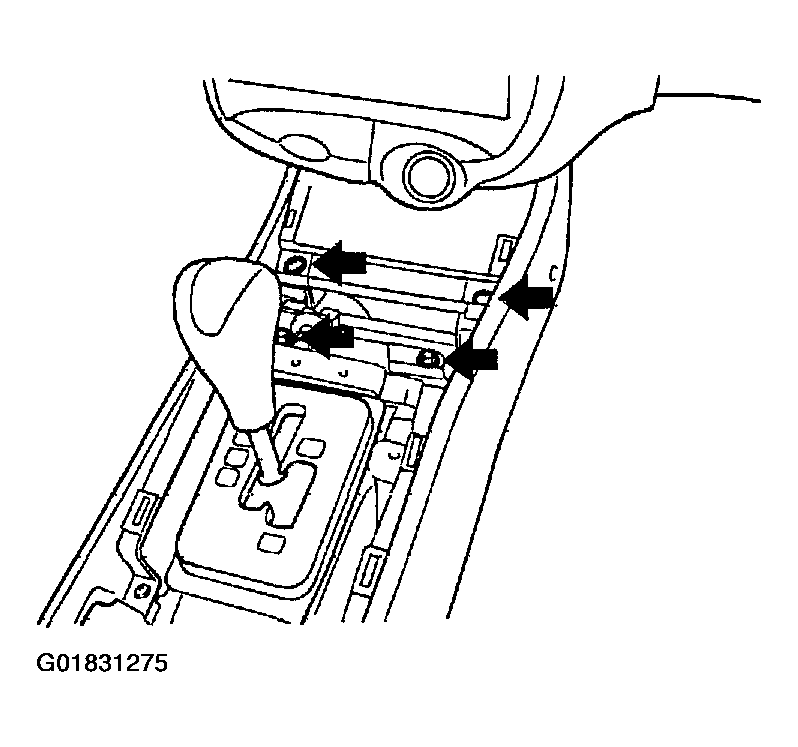

      Fig 3: Identifying Floor Console Mounting Screws
      G01831275Courtesy of HYUNDAI MOTOR CO.
    4. Remove the floor console assembly after removing 4 screws.
      Fig 4: Identifying Floor Console Side Screws
      G01831276Courtesy of HYUNDAI MOTOR CO.
  2. Remove the cotter pins and clips (shift lever side).
  3. Remove the shift lever assembly.
  4. Remove the retainer and bolts.
  5. Remove the cotter pins and clips (Transaxle side).
  6. Remove the shift cable and select cable.

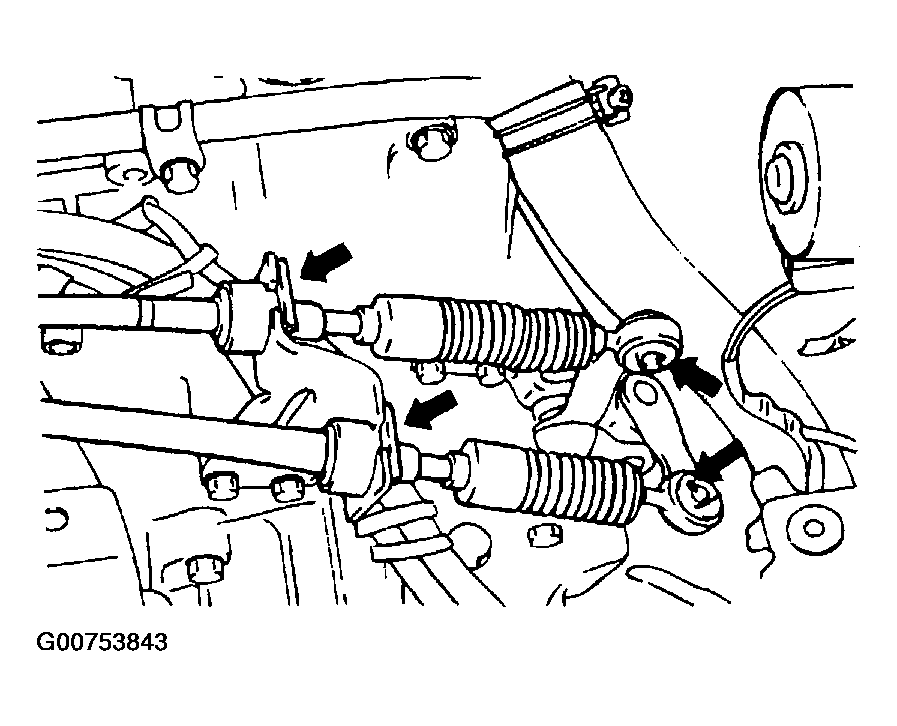

Fig 5: Identifying Shift Cable & Select Cable
G00753843Courtesy of HYUNDAI MOTOR CO.
