Procedure To Install The Lock Cam

WARNING: This page is about a different variant/trim than selected.

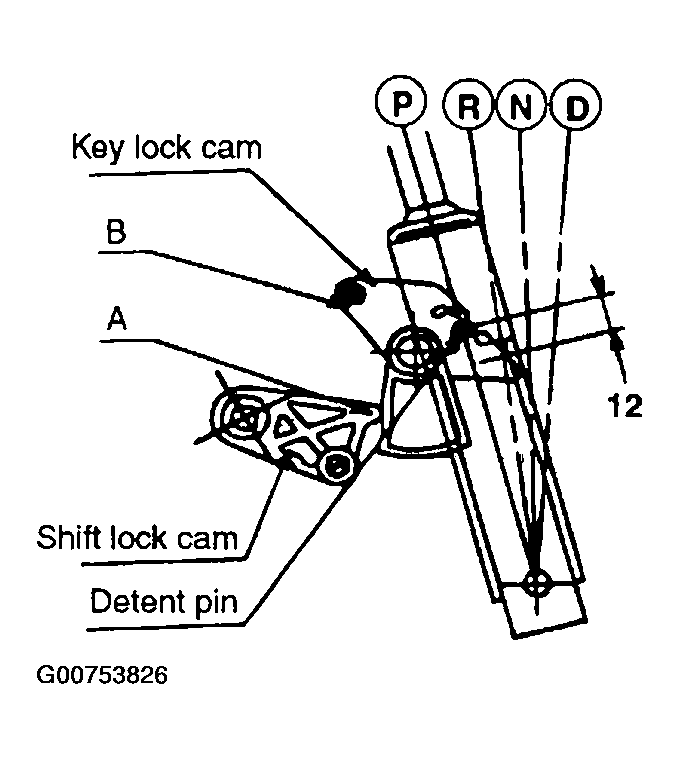

Fig 1: Identifying Shift Lever Positions

Courtesy of HYUNDAI MOTOR CO.

Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in the figure.
- Check that the key lock cam is located at "B" by the detent pin.
- Check that the shift lock cam is located at "A".

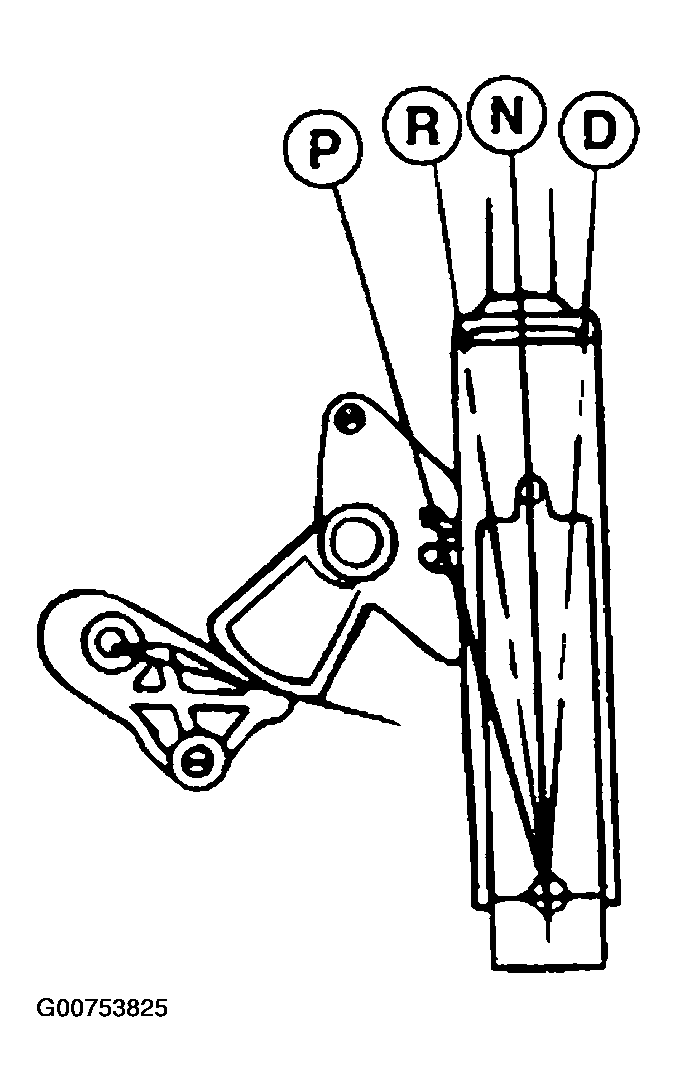

Fig 2: Setting Lock Cam & Shift Lock Cam
Courtesy of HYUNDAI MOTOR CO.
Check that the key cylinder is at "LOCK".
