Disassembly and Assembly

LIMITED SLIP DIFFERENTIAL (LSD)
REASSEMBLY

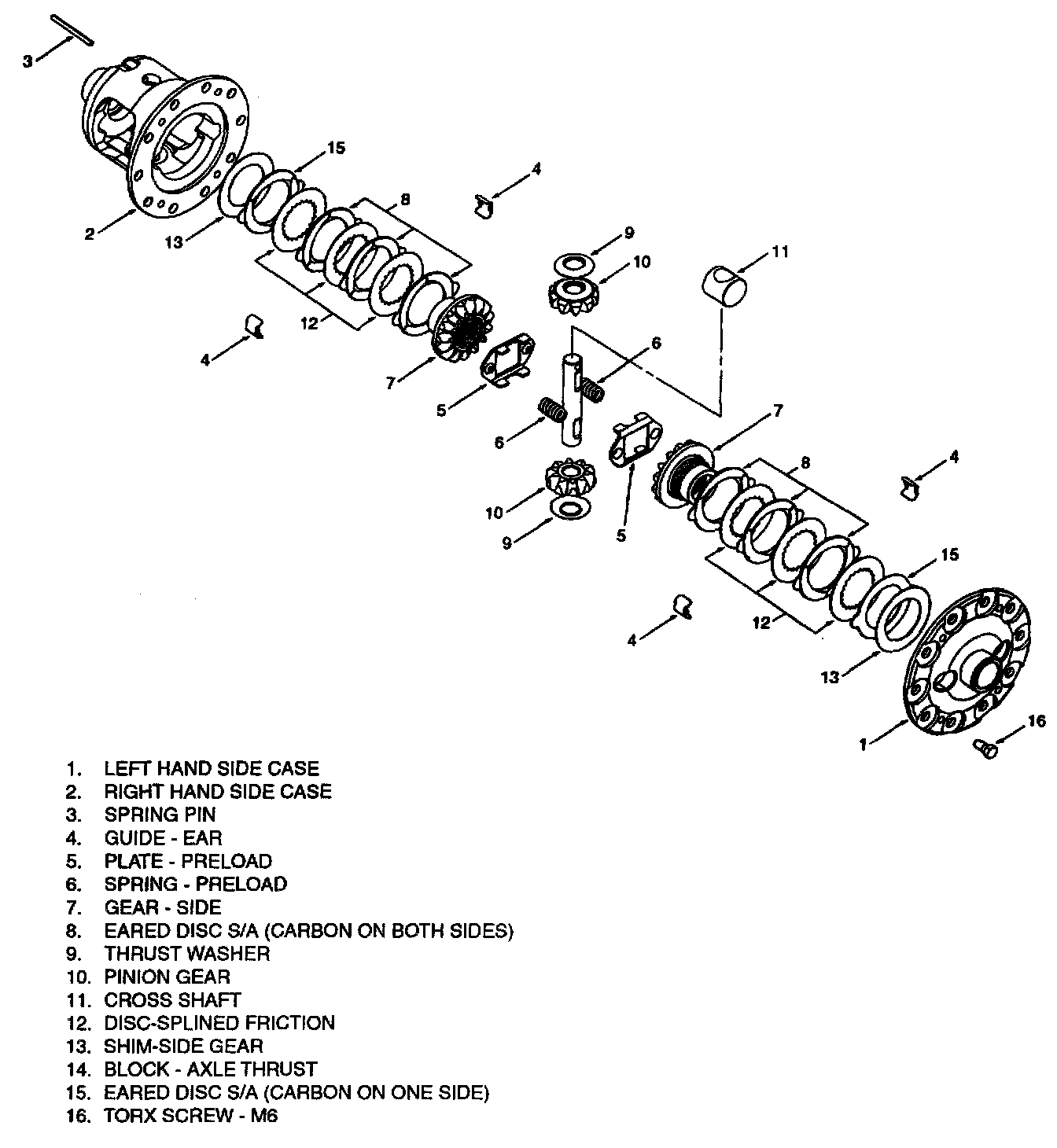

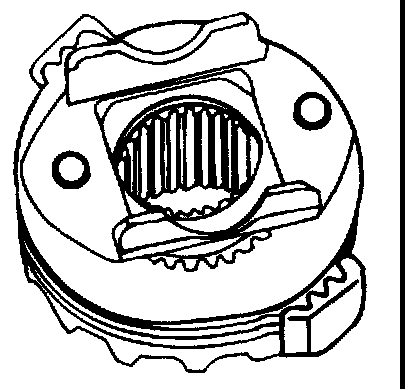

1. Install the clutch disc guide and clutch disc in order.





NOTE: Apply grease to the clutch disc guide and clutch disc before reassembly.

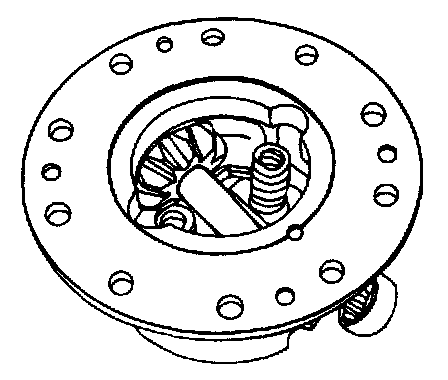

2. Install the clutch preload plate and side gear.

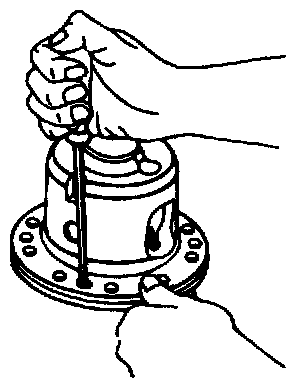

3. After assembling the pinion shaft, pinion gear and washer, fix the pinion shaft lock pin with a hammer.

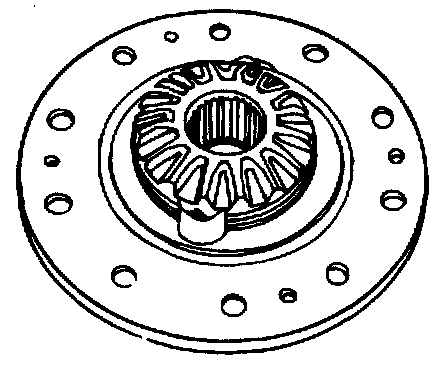

4. Install the preload spring and spring plate in the opposite side.

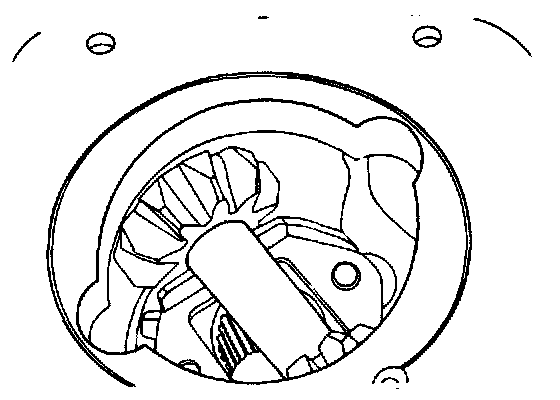

5. After assembling the clutch disc and side gear in the opposite case, assemble the two cases.





6. Assemble the case by tightening the torx screws.
