Santa Fe LX, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (3.5L)
>>
MFI Control System
>>
Canister Close Valve
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

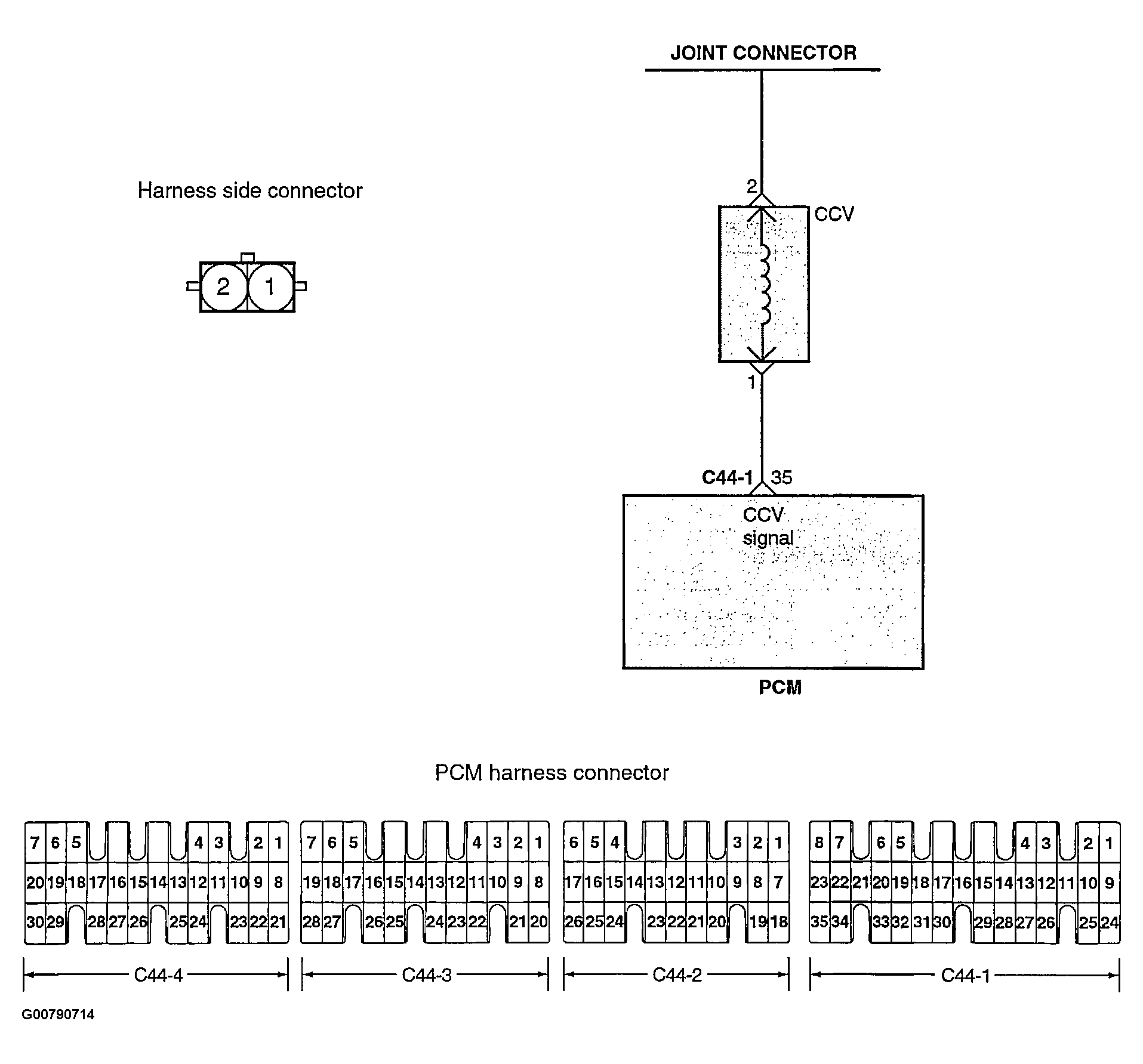

Fig 1: Canister Close Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
