Transfer Case Assembly
>>
Transfer Case
>>
System Description
>>
Outside View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Outside View

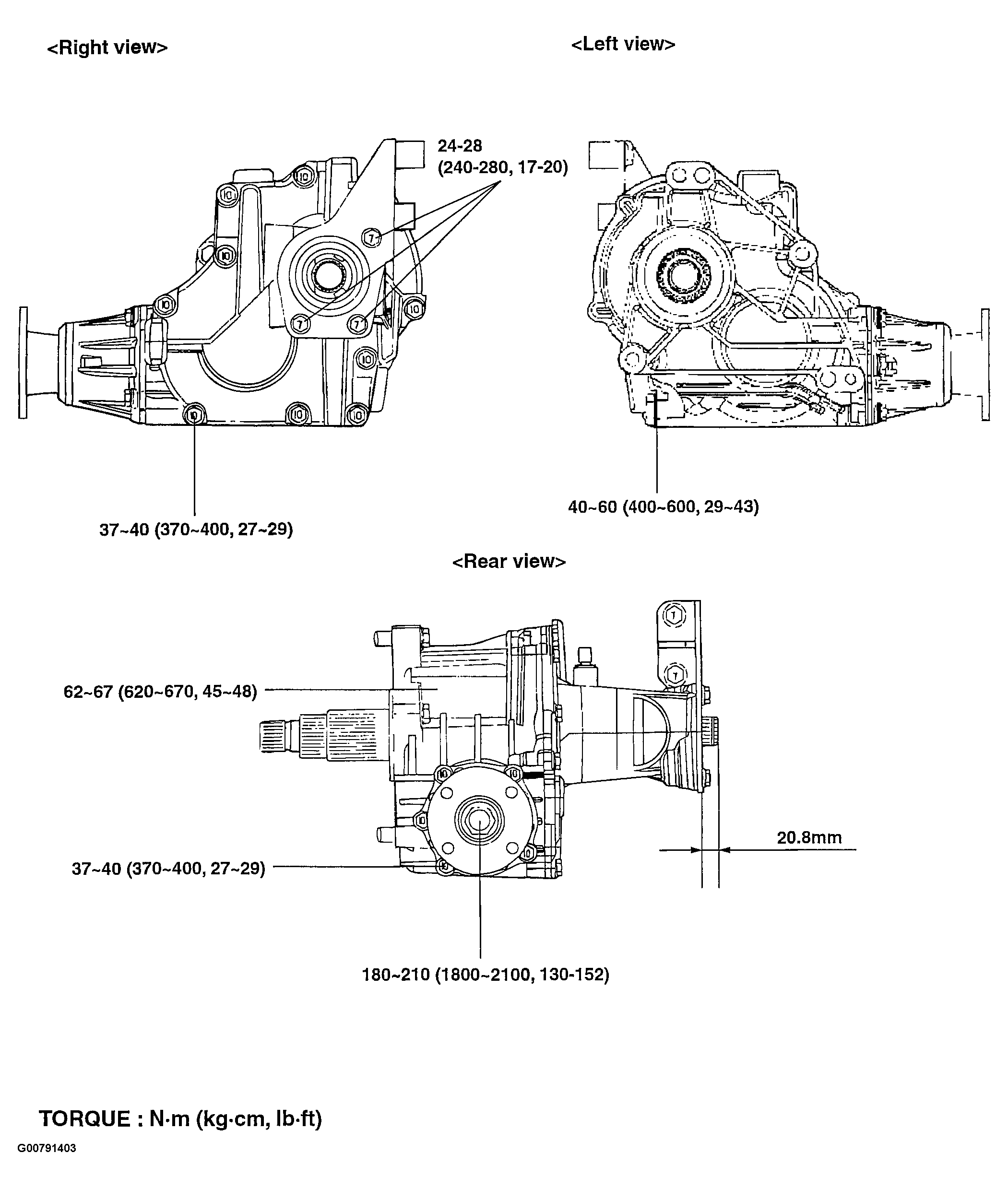

Fig 1: Outside View
Courtesy of HYUNDAI MOTOR CO.
