Special Tools

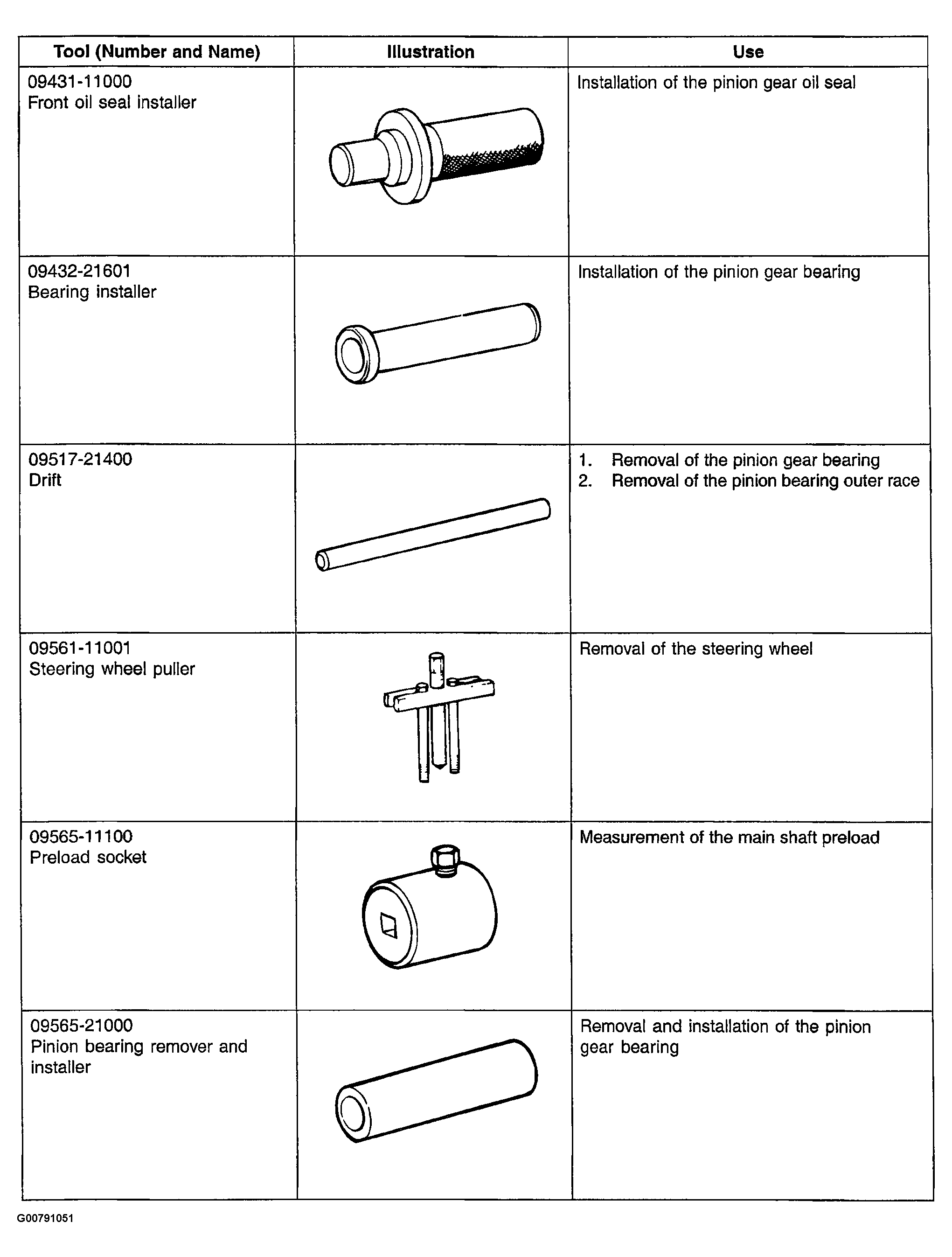

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

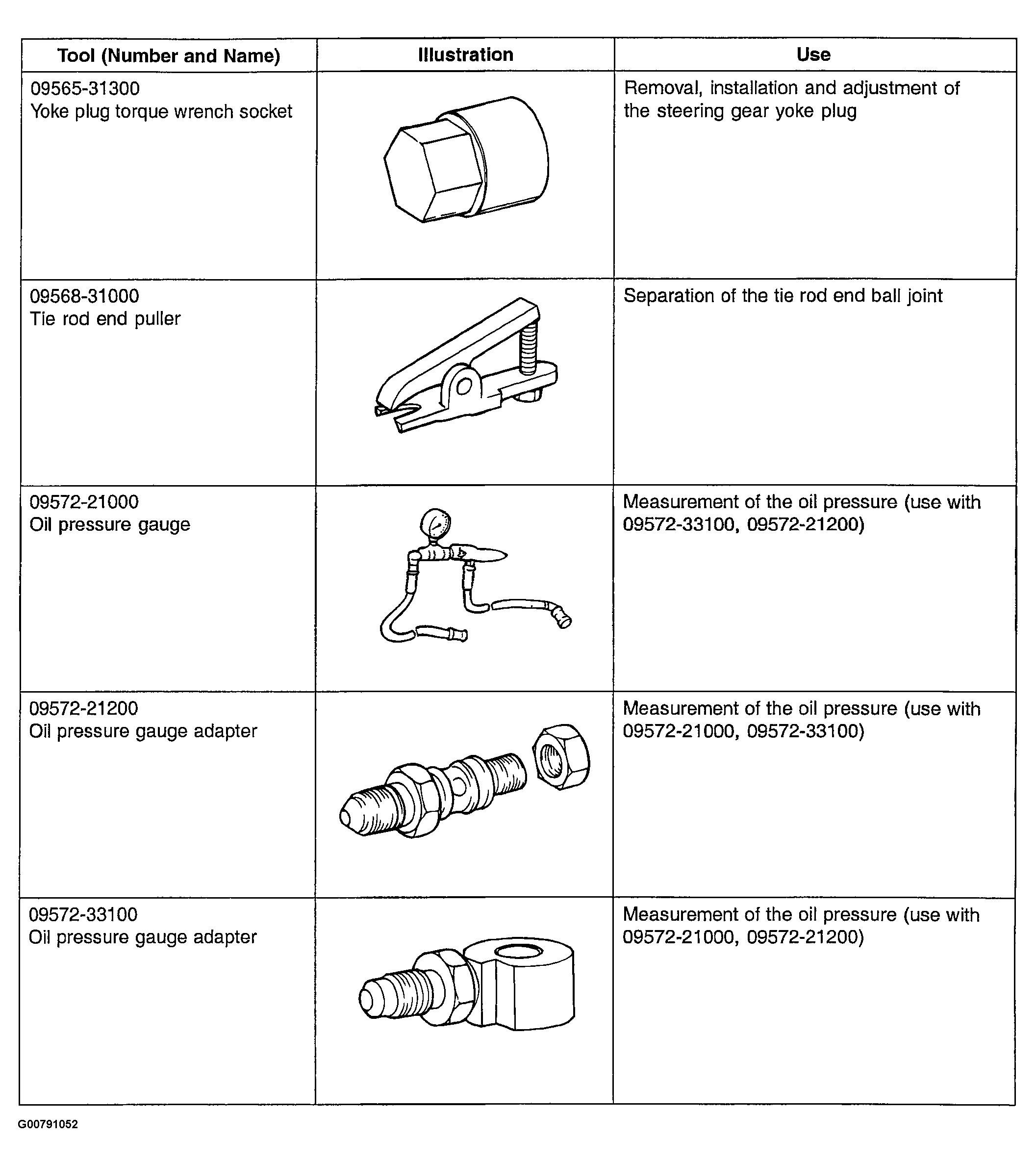

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

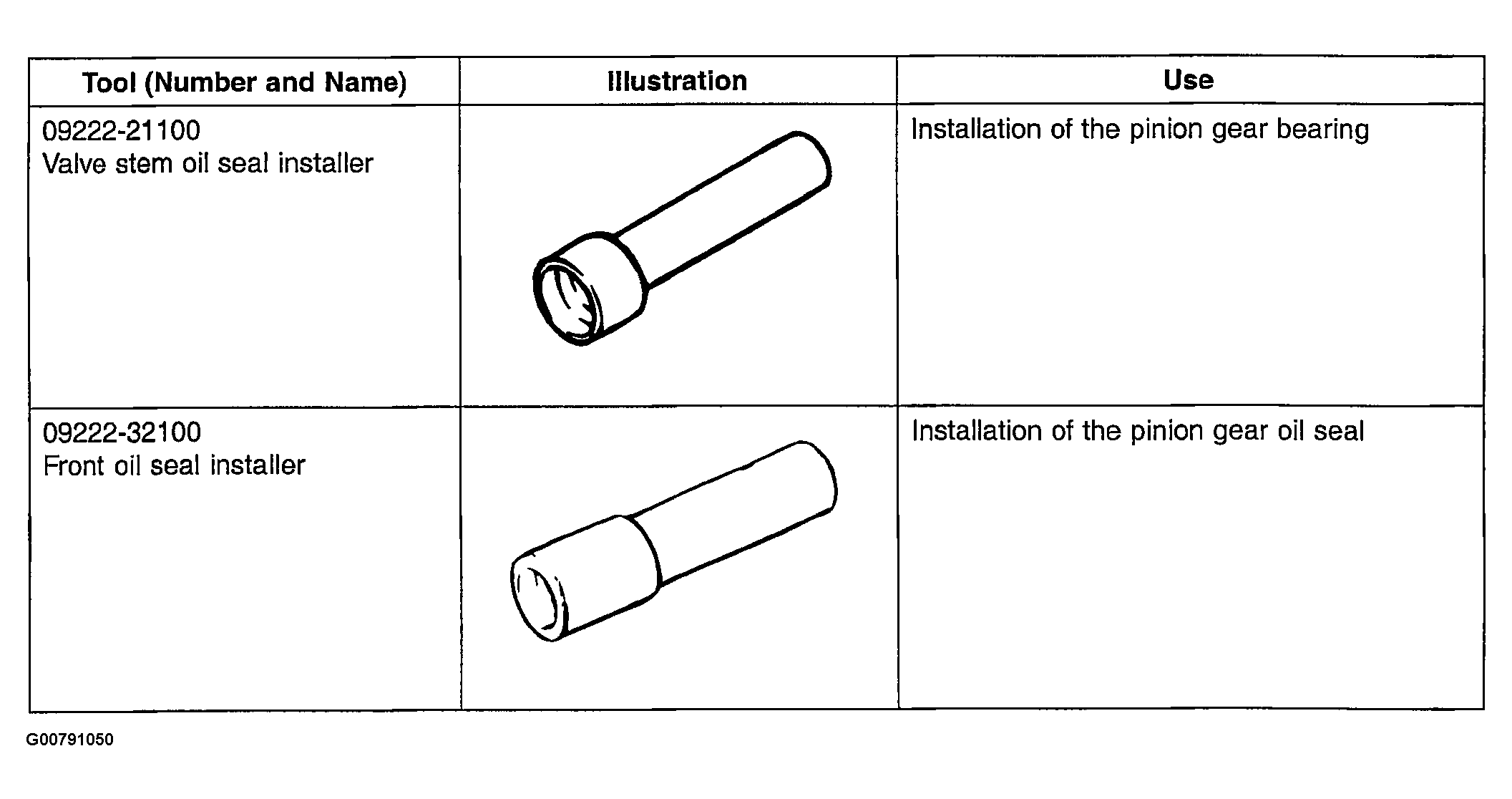

Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
