Circuit Diagram For Cruise Control System

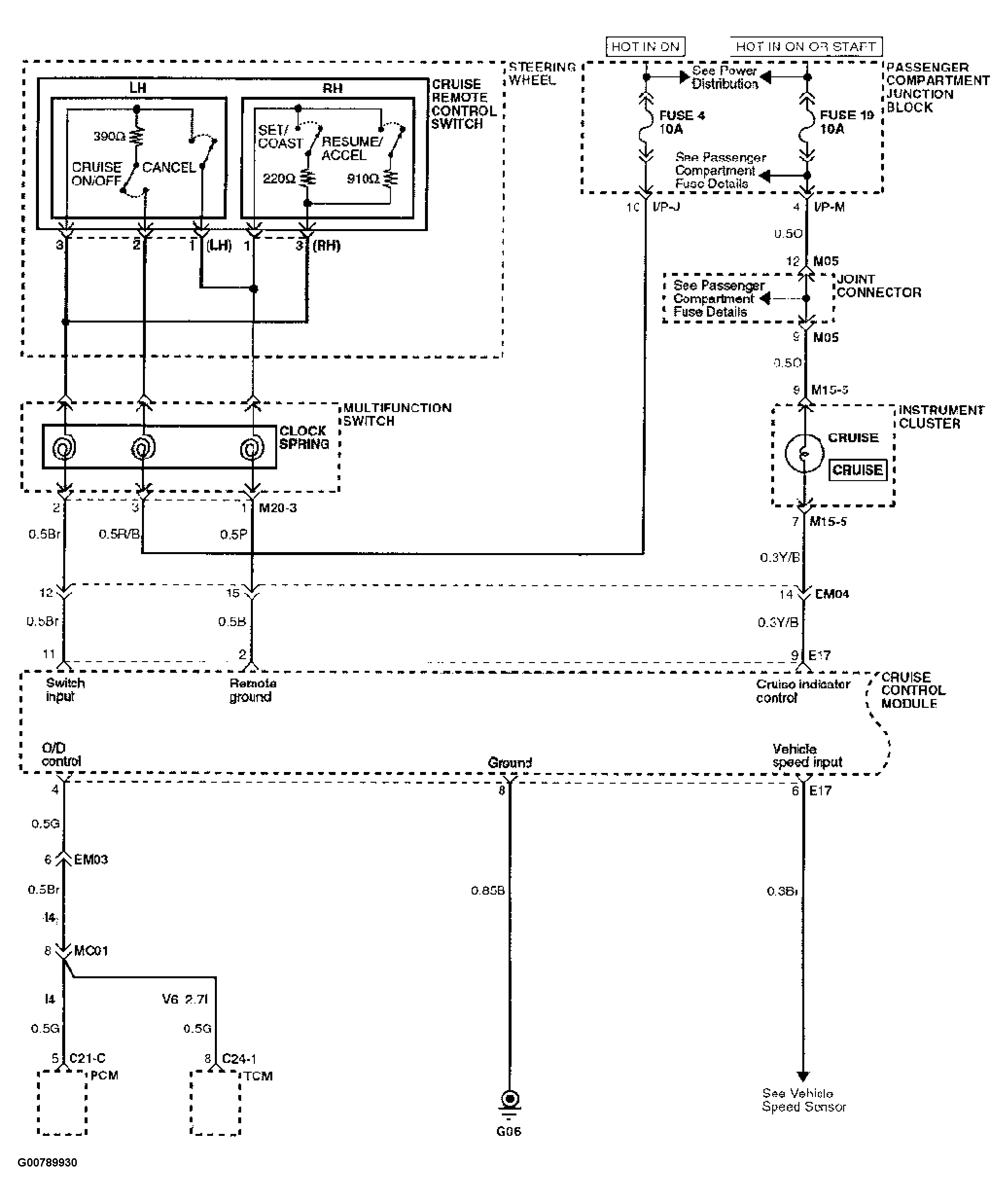

Fig 1: Cruise Control System Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

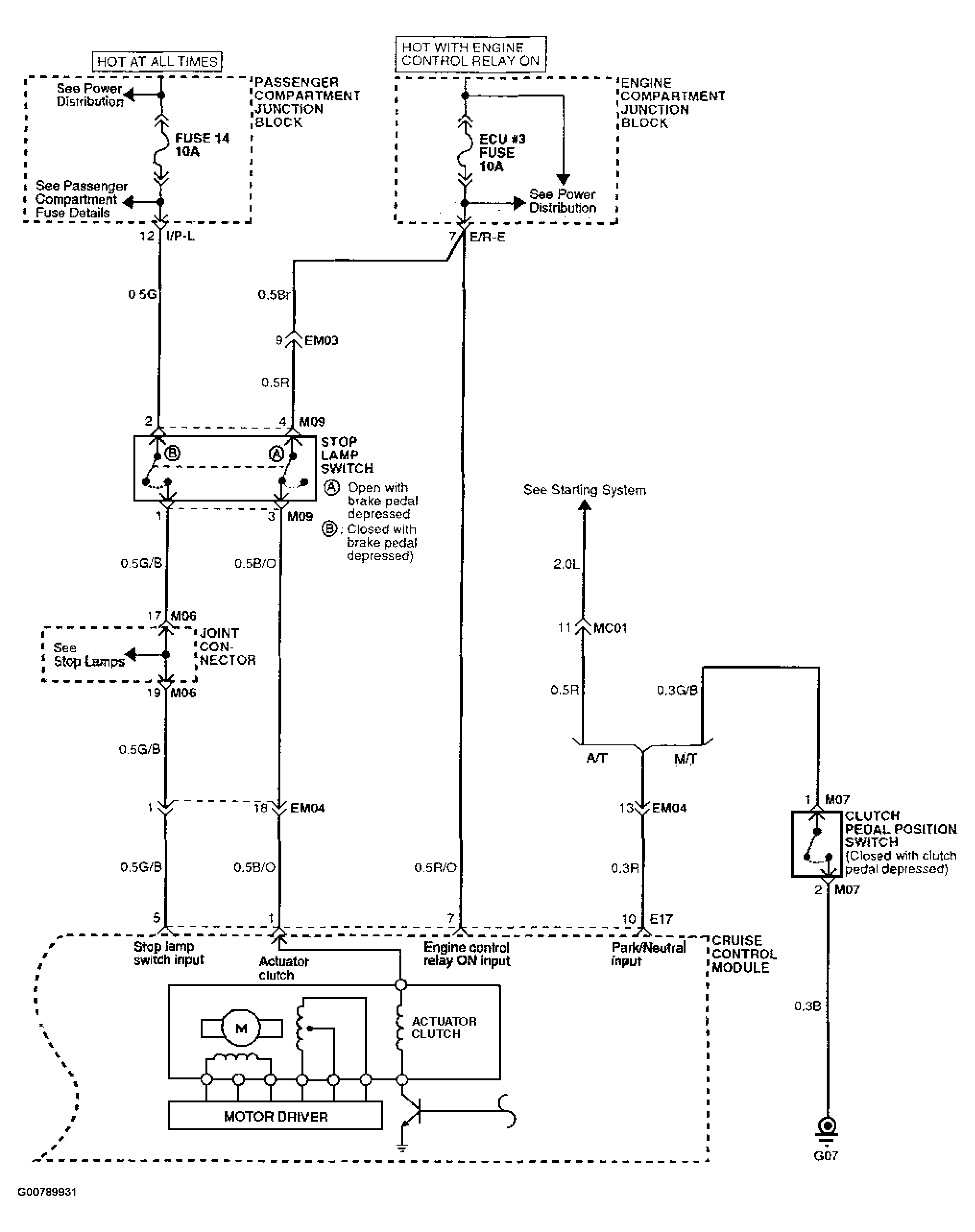

Fig 2: Cruise Control System Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
