Inspection Procedure 6

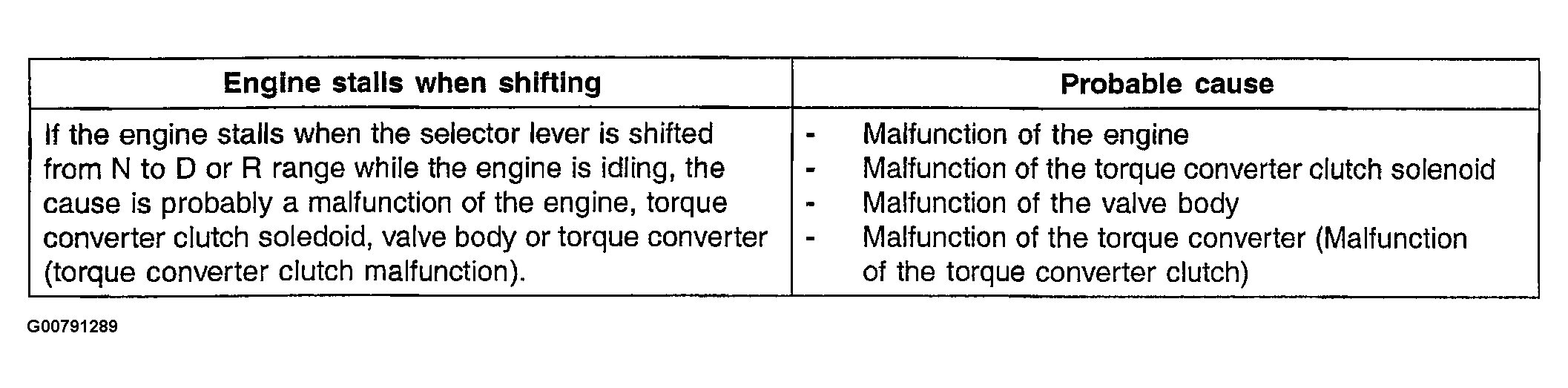

Fig 1: Inspection Procedure 6 Definitions & Probable Causes
G00791289Courtesy of HYUNDAI MOTOR CO.

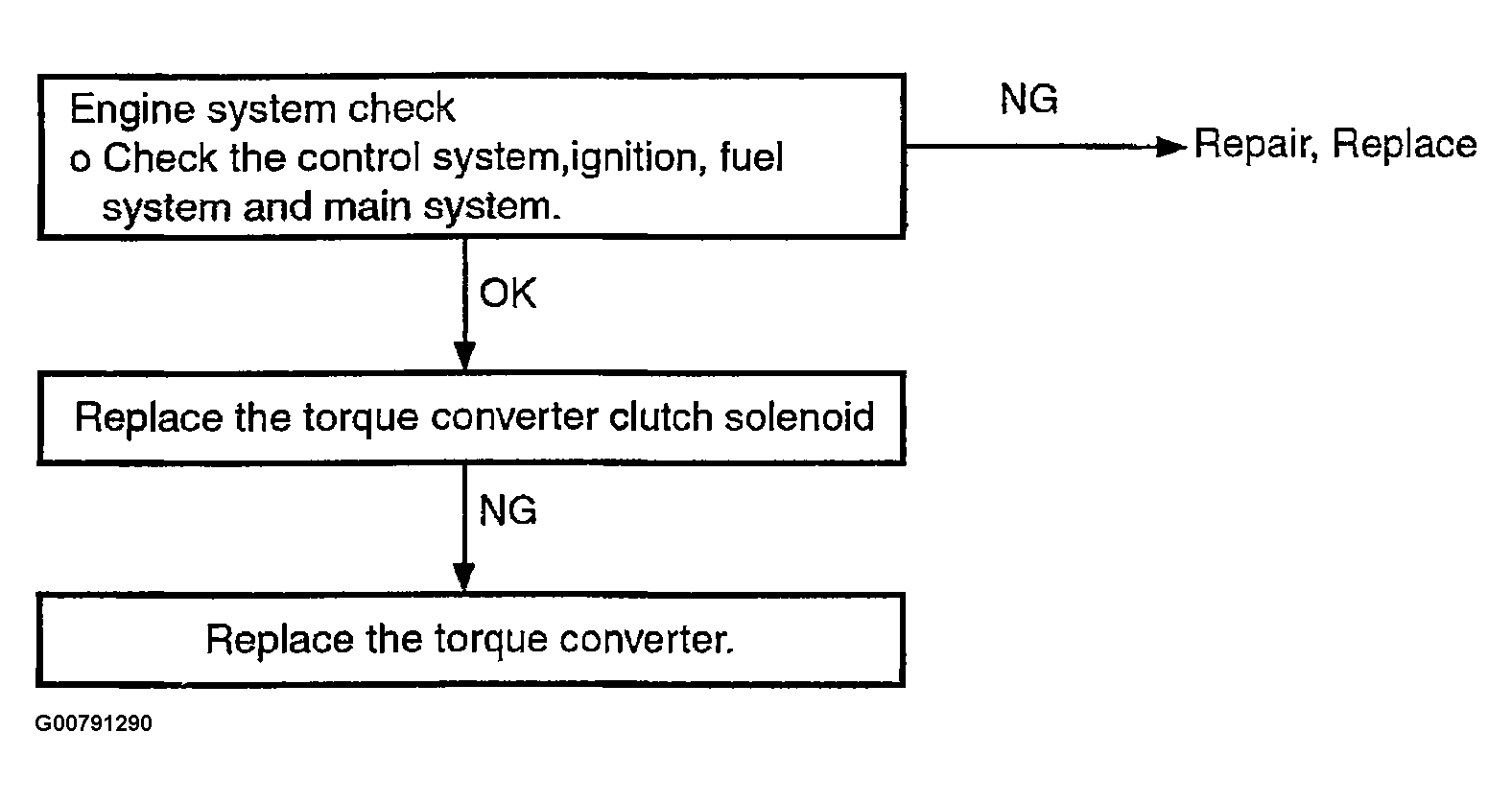

Fig 2: Inspection Procedure 6 Diagnostic Flow Chart
G00791290Courtesy of HYUNDAI MOTOR CO.
