DTC P0507: Idle Control System - Rpm Higher Than Expected: DTC Detecting Condition

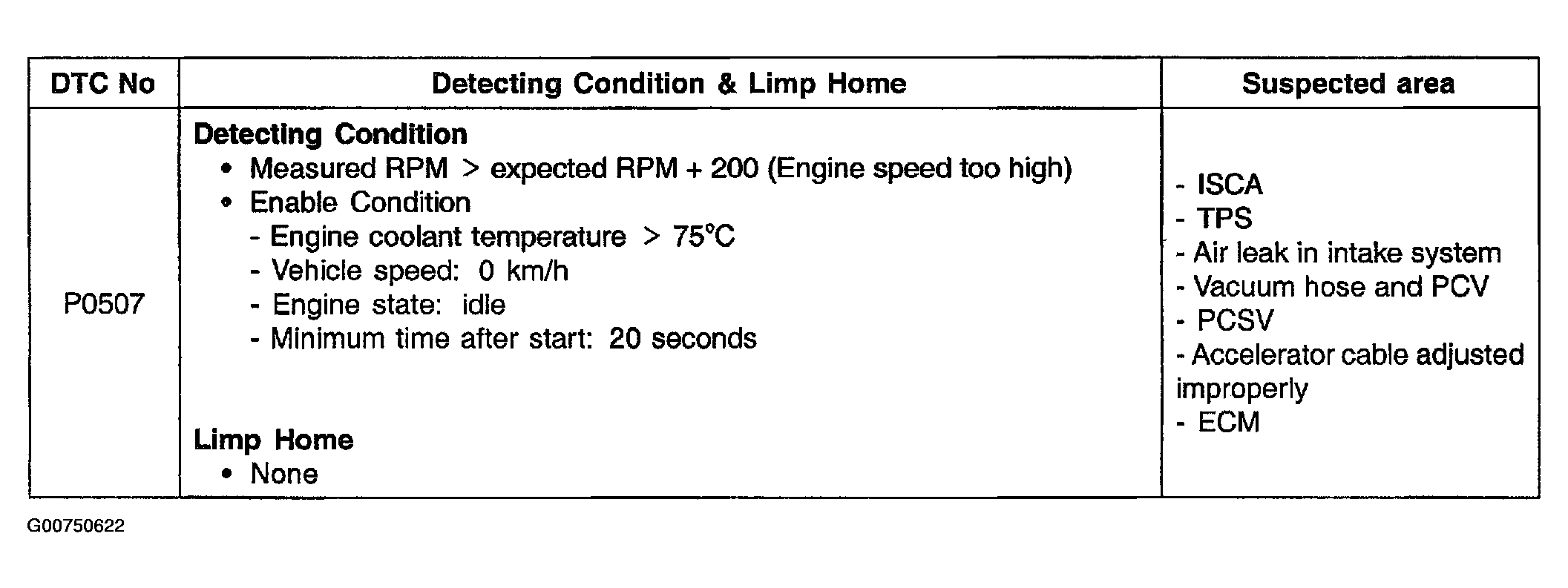

Fig 1: DTC P0507: Detecting Conditions & Probable Causes
G00750622Courtesy of HYUNDAI MOTOR CO.
