DTC P0444: EVAP Emission Control System Purge Control Solenoid Valve (PCSV) Circuit Open
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

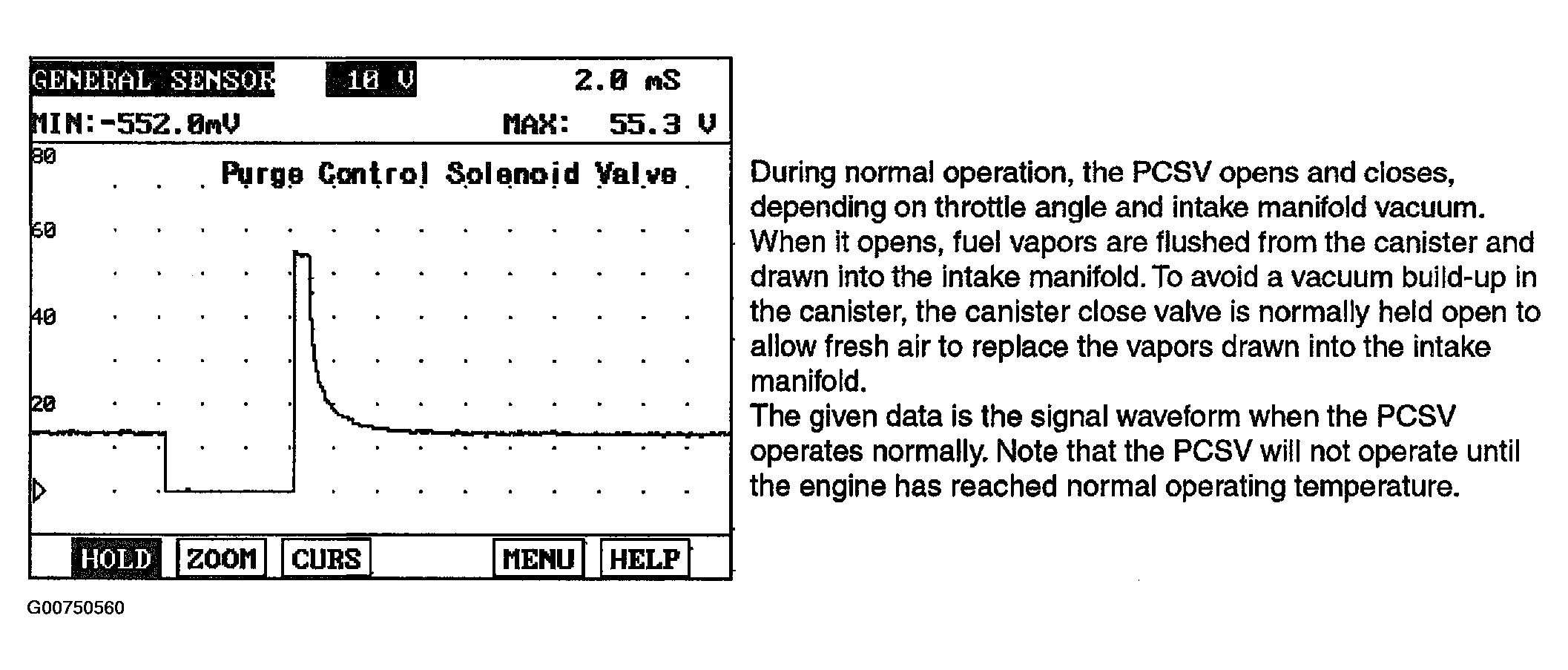

Fig 1: PCSV Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
