DTC P0270: Cylinder 4 - Injector Circuit Low Input: DTC Detecting Condition

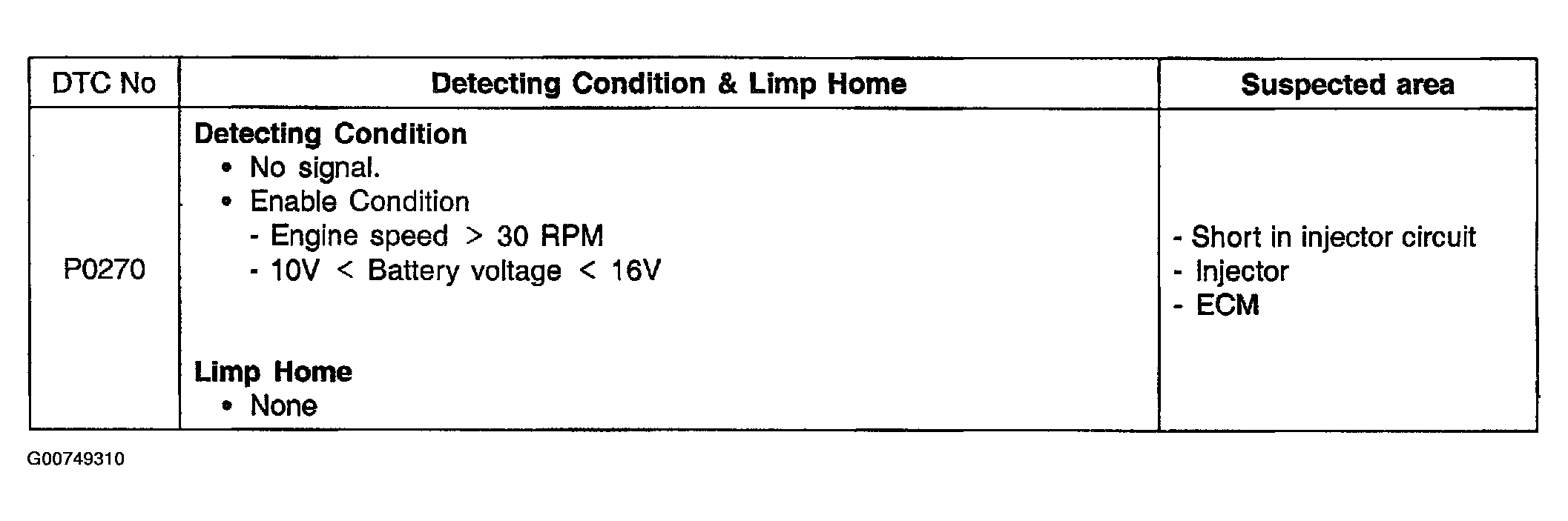

Fig 1: DTC P0270: Detecting Conditions & Probable Causes
G00749310Courtesy of HYUNDAI MOTOR CO.
