DTC P0112: Intake Air Temperature Sensor (IATS) Circuit Low Input
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

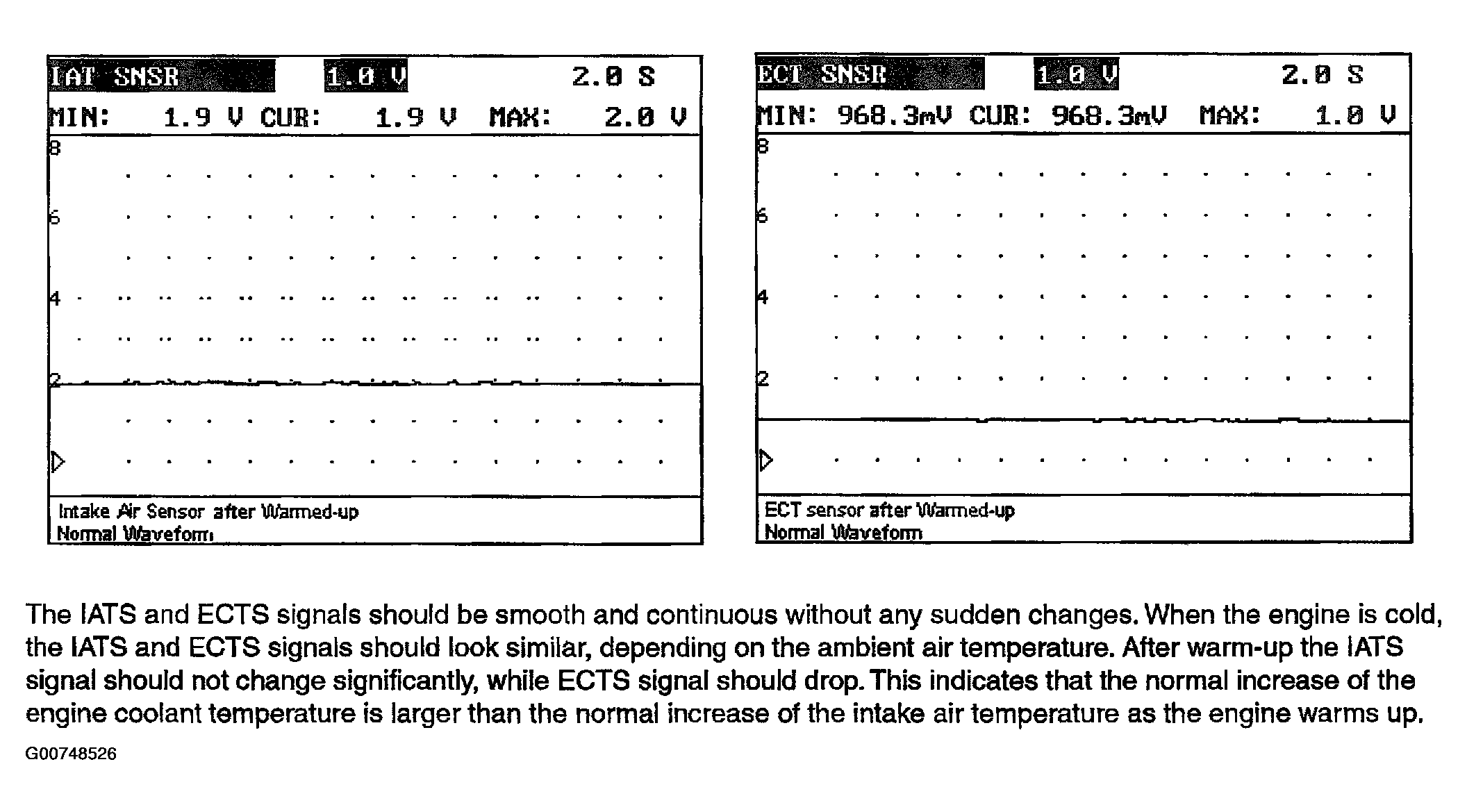

Fig 1: IATS Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
