Front Wheel Speed Sensor

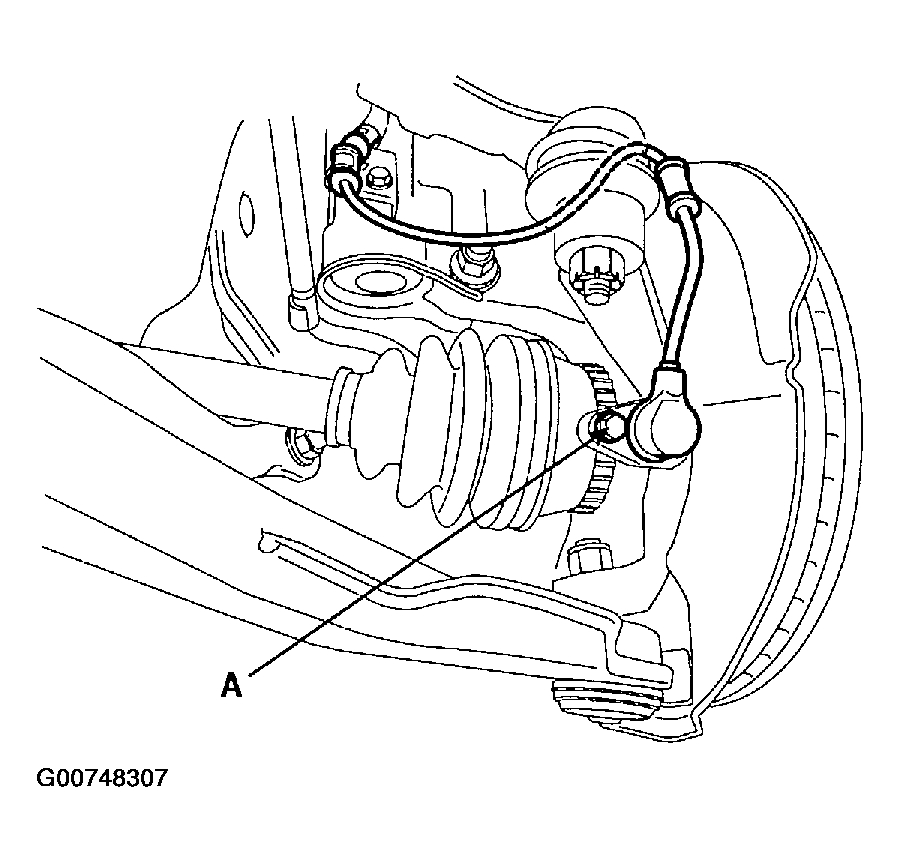

  1. Remove the front wheel speed sensor mounting bolt (A).
    Fig 1: Locating Front Wheel Speed Sensor Mounting Bolt
    G00748307Courtesy of HYUNDAI MOTOR CO.

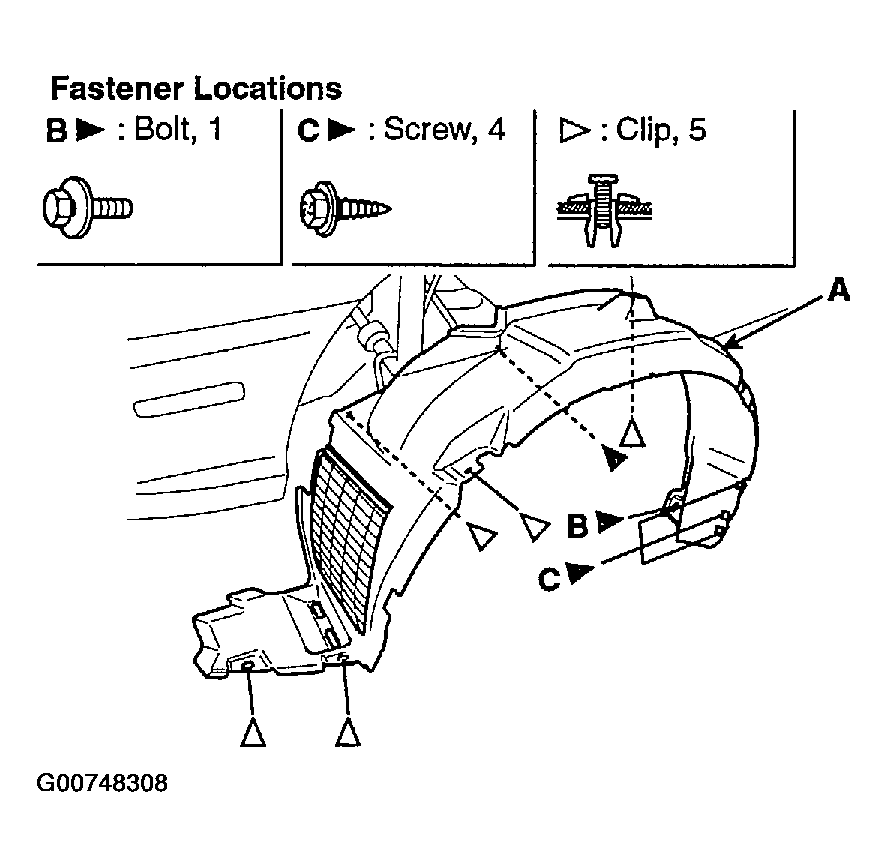

  2. Remove the front wheel guard (A).
    Fig 2: Locating Front Wheel Guard
    G00748308Courtesy of HYUNDAI MOTOR CO.

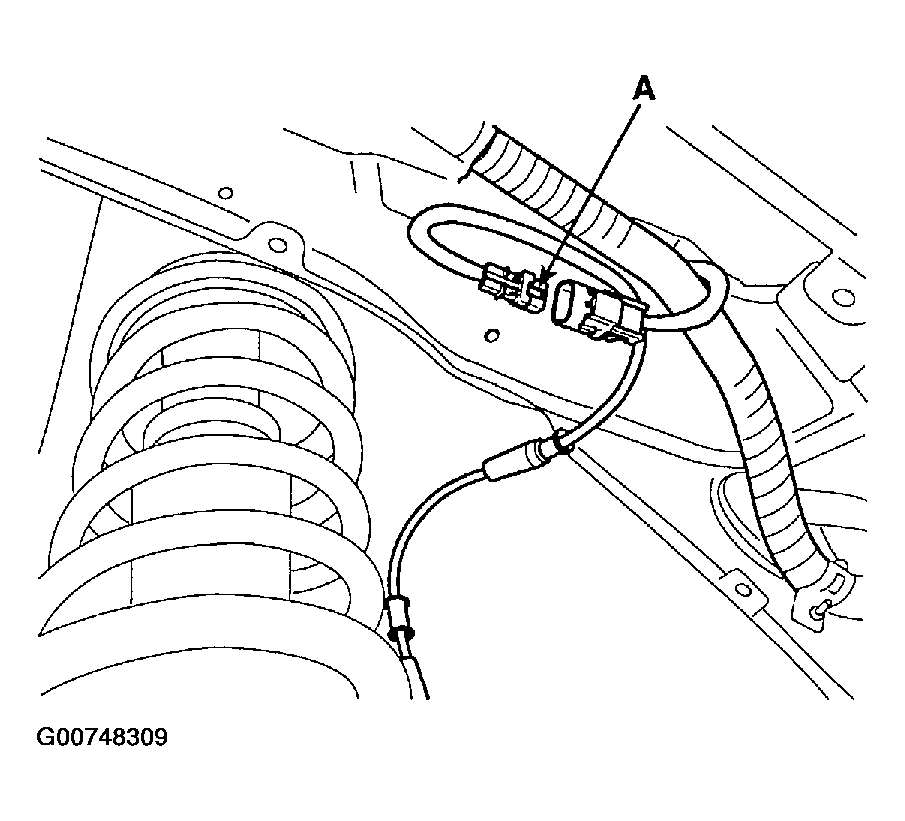

  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
    Fig 3: Removing Front Wheel Speed Sensor Connector
    G00748309Courtesy of HYUNDAI MOTOR CO.
