Inspect Ignition Switch
INSPECT
IGNITION SWITCH
1.
Remove the connector located under the steering column.
2.

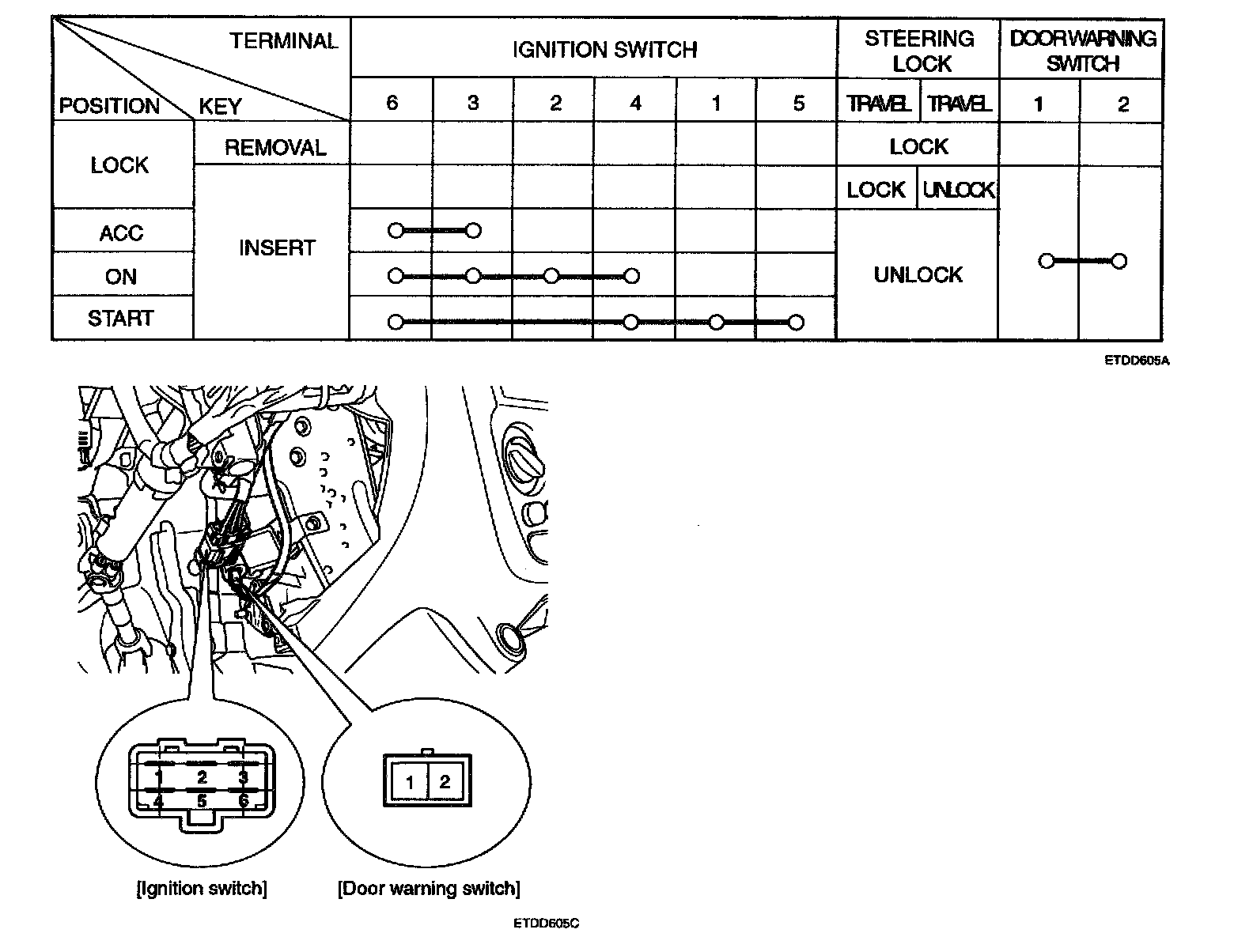

Check for continuity between terminals. If there is no continuity, replace the
ignition switch
.
