Home
>>
Hyundai
>>
2004
>>
Accent GL, 2D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 14
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 14

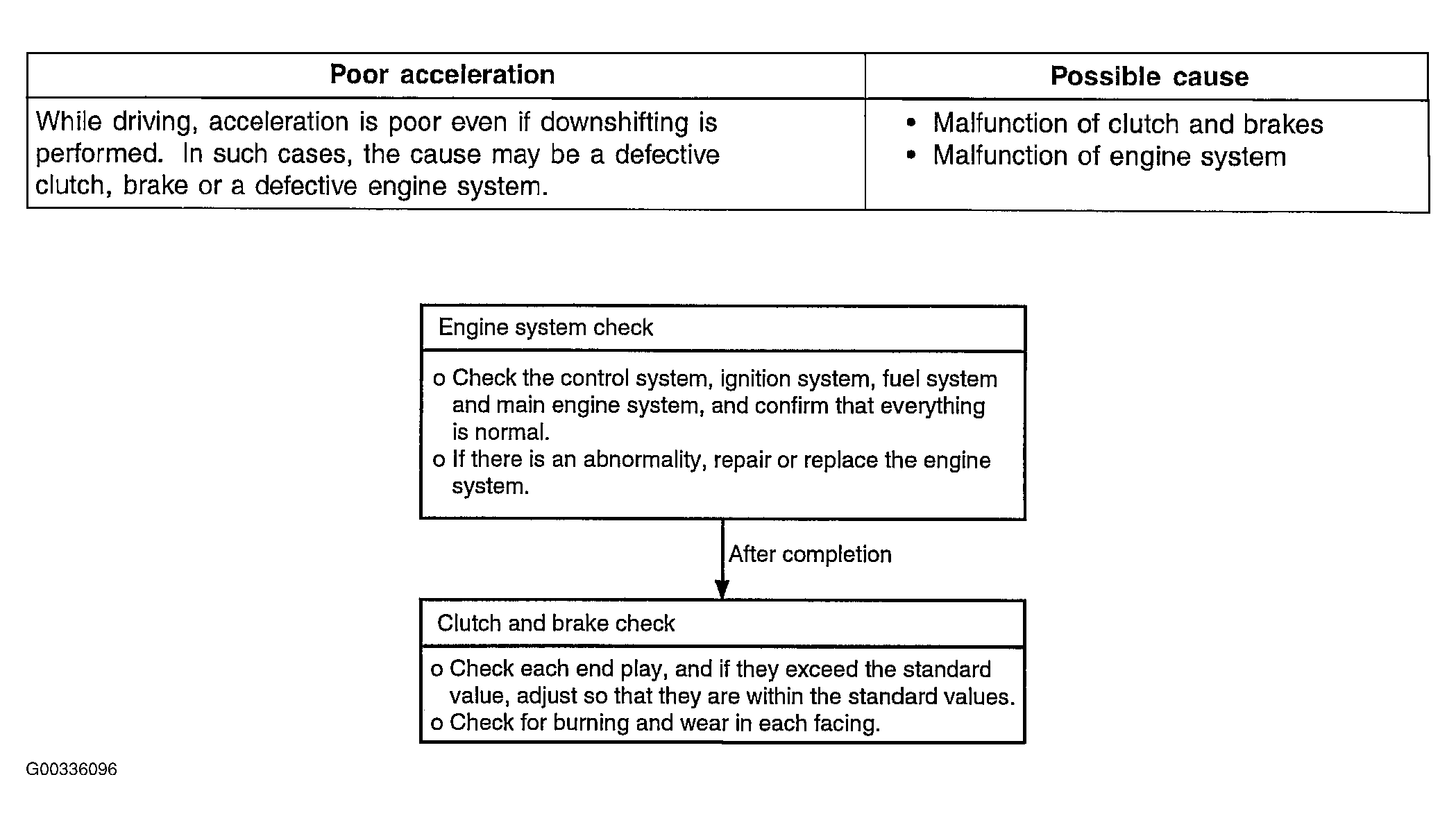

Fig 1: Inspection Procedure 14 Flow Chart
Courtesy of HYUNDAI MOTOR CO.
