Power Steering Hoses: Installation

Support the specified portion of the vehicle with a lift.
Insert the color tube from the front pump upper part to the lower part and install 2 mounting bolts.

Fig 1: Inserting Color Tube
Courtesy of HYUNDAI MOTOR CO.
Connect the color tube to the power steering oil reservoir tank side hose, return tube and hose side and fix it with clips. (When installing the color tube)

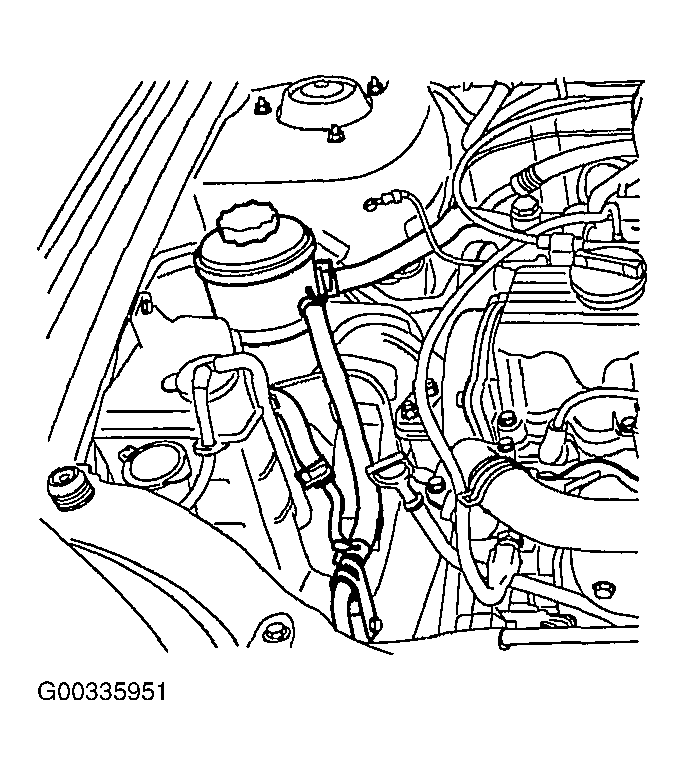

Fig 2: Connecting Color Tube To Power Steering Oil Reservoir Tank Side Hose
Courtesy of HYUNDAI MOTOR CO.
Place the pressure hose and tube assembly in position and connect it to the oil pump. (When installing the pressure hose and tube)

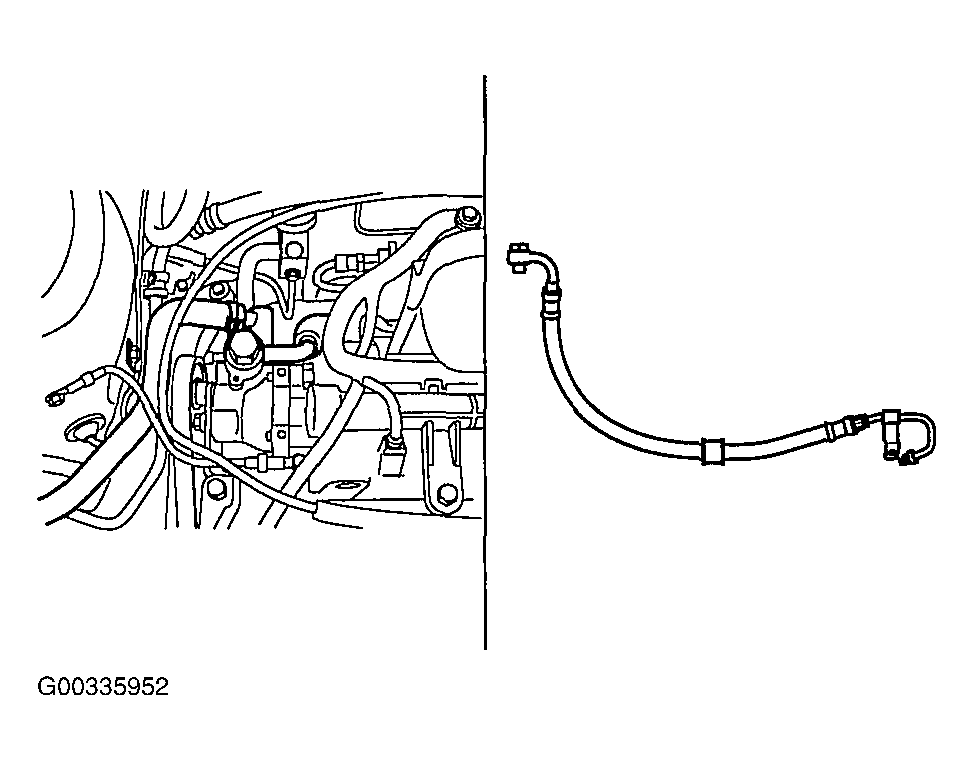

Fig 3: Connecting Pressure Hose & Tube Assembly To Oil Pump
Courtesy of HYUNDAI MOTOR CO.
Raise the vehicle with a lift.
Fix the pressure tube and return tube fitting to the power steering gear box.

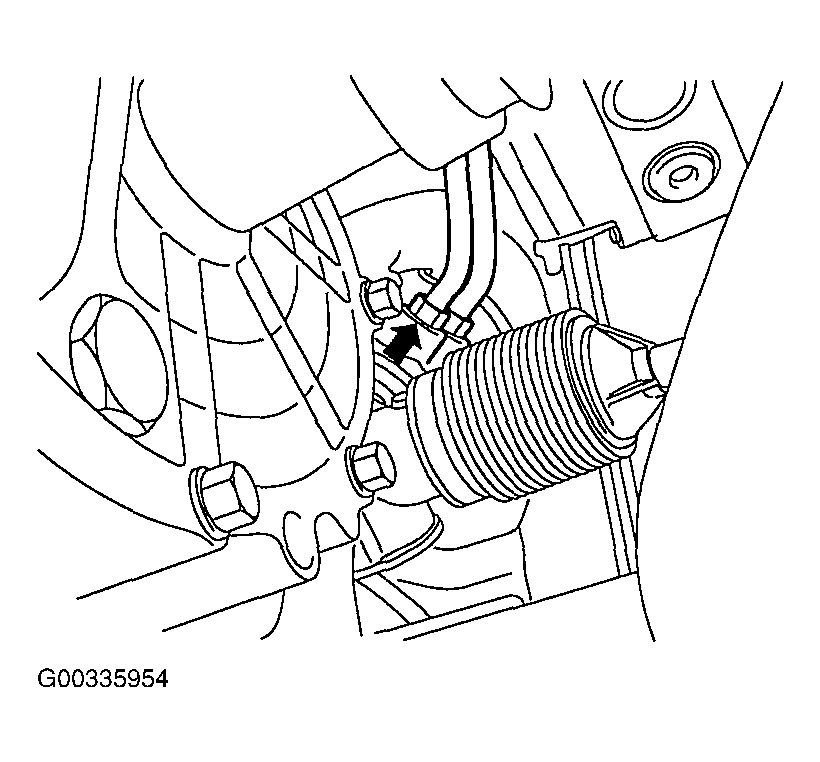

Fig 4: Installing Pressure Tube & Return Tube Fitting To Power Steering Gear Box
Courtesy of HYUNDAI MOTOR CO.
Fix the power steering pressure tube and return tube mounting clamp with a bolt.

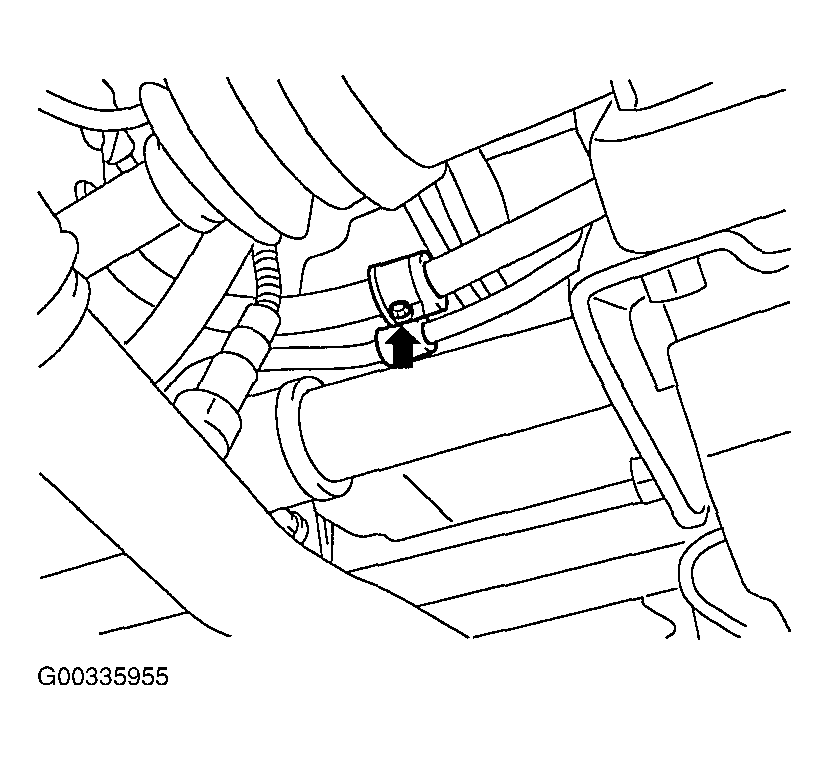

Fig 5: Installing Power Steering Pressure Tube & Return Tube Mounting Clamp With A Bolt
Courtesy of HYUNDAI MOTOR CO.
Lower the vehicle.
Connect the gear box and steering column shaft universal joint in the passenger compartment.

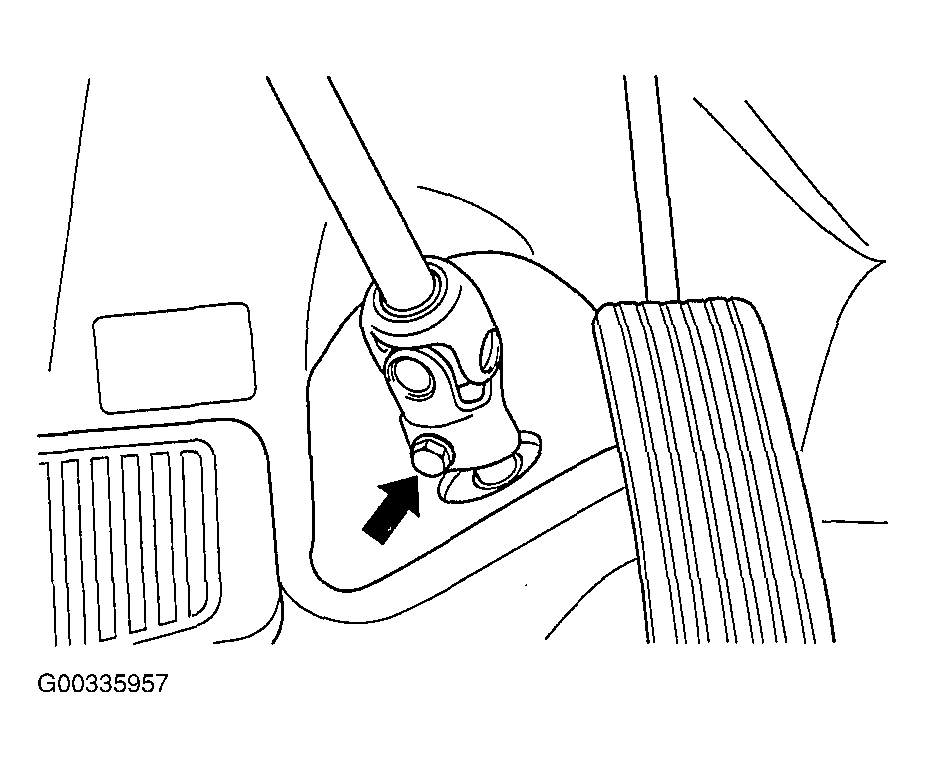

Fig 6: Connecting Gear Box & Steering Column Shaft Universal Joint
Courtesy of HYUNDAI MOTOR CO.
Connect the tie rod end to the LH/RH knuckles.
Install the tires (LH/RH).
Fill the power steering oil reservoir with fluid.
