Power Steering Hoses: Components

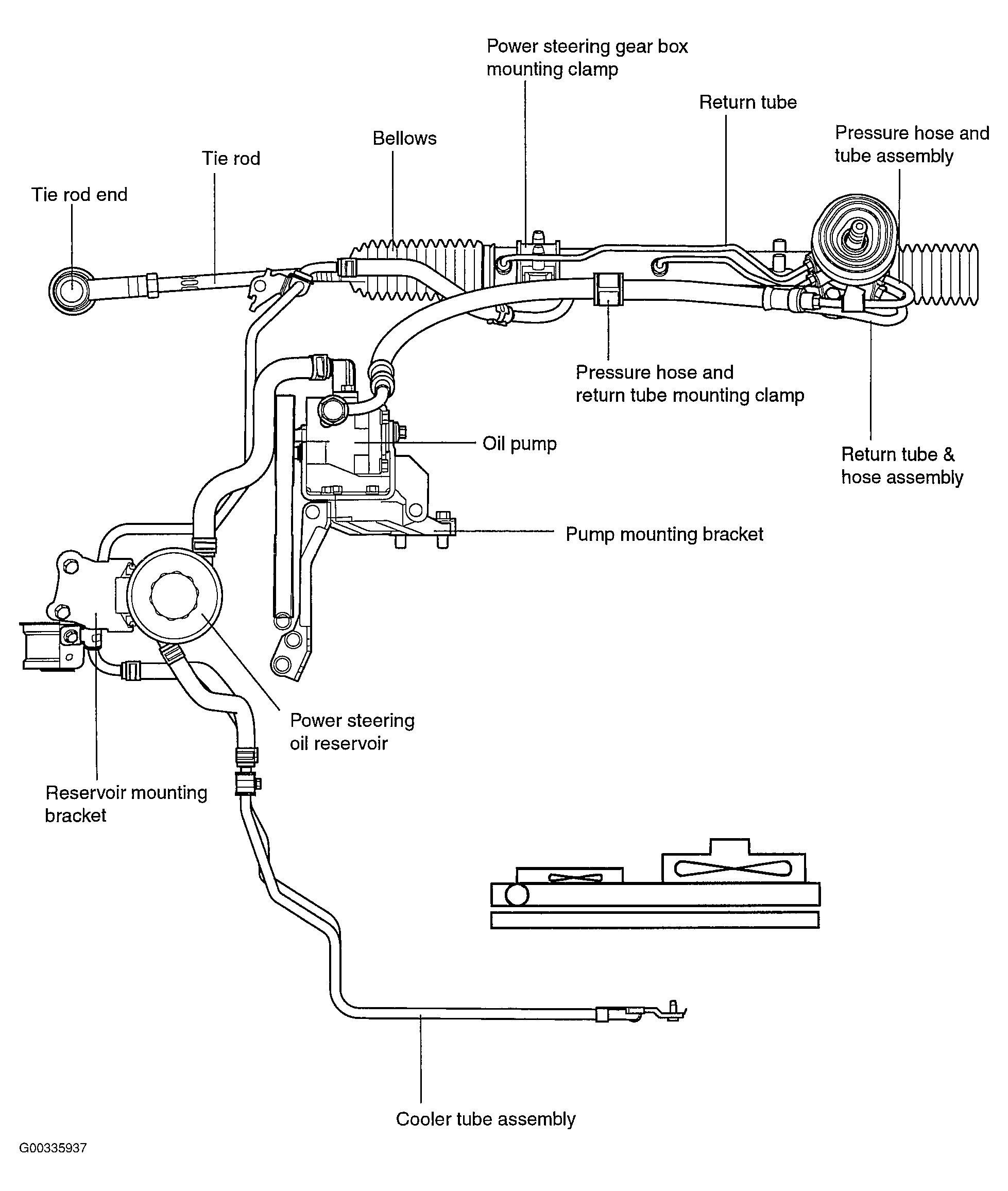

Fig 1: Identifying Power Steering Hoses

G00335937

Courtesy of HYUNDAI MOTOR CO.
