Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (2 Of 2)
>>
DTC Troubleshooting Procedures
>>
DTC P0501: Vehicle Speed Sensor Range/Performance
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

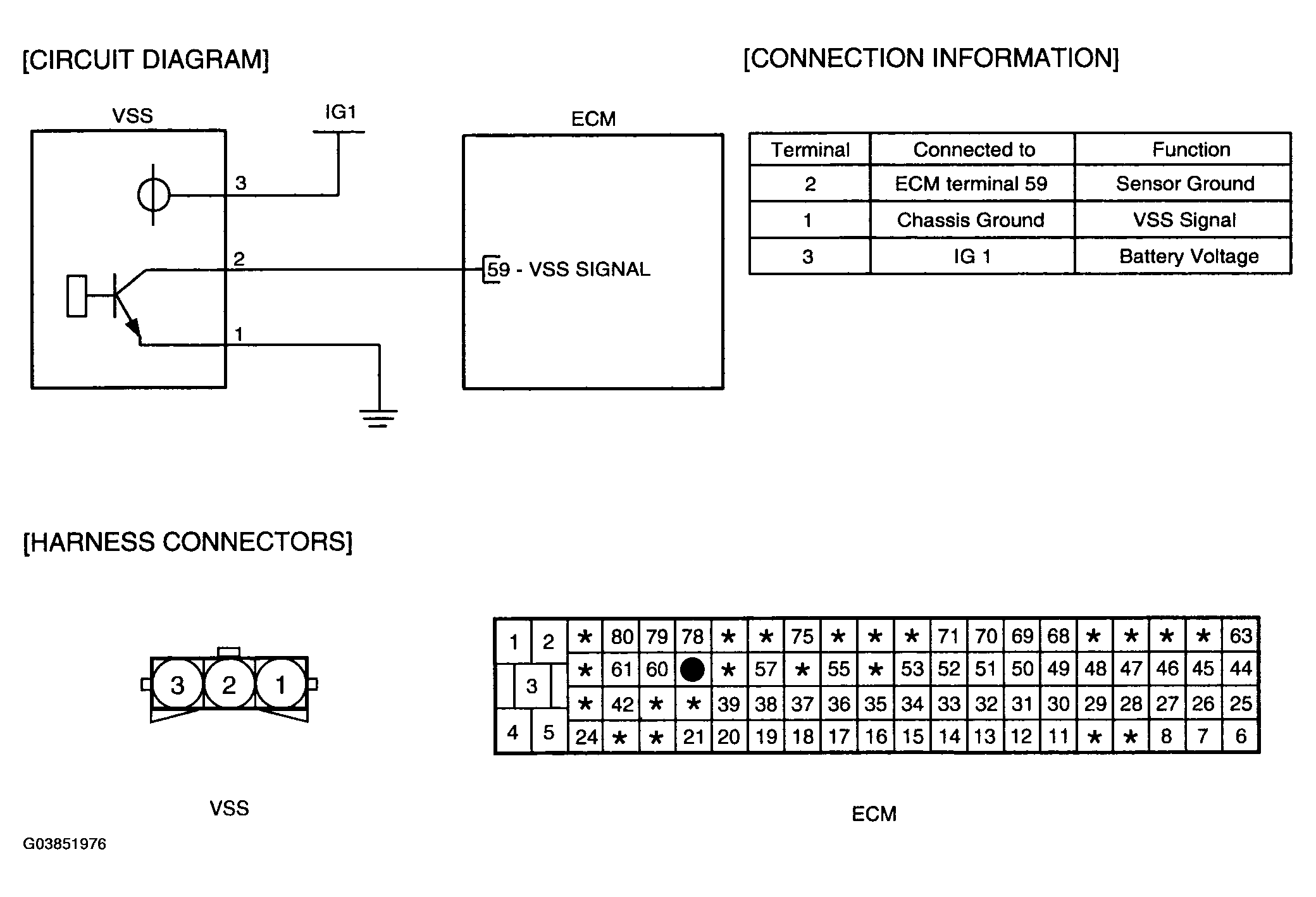

Fig 1: Vehicle Speed Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
