Schematic Diagram

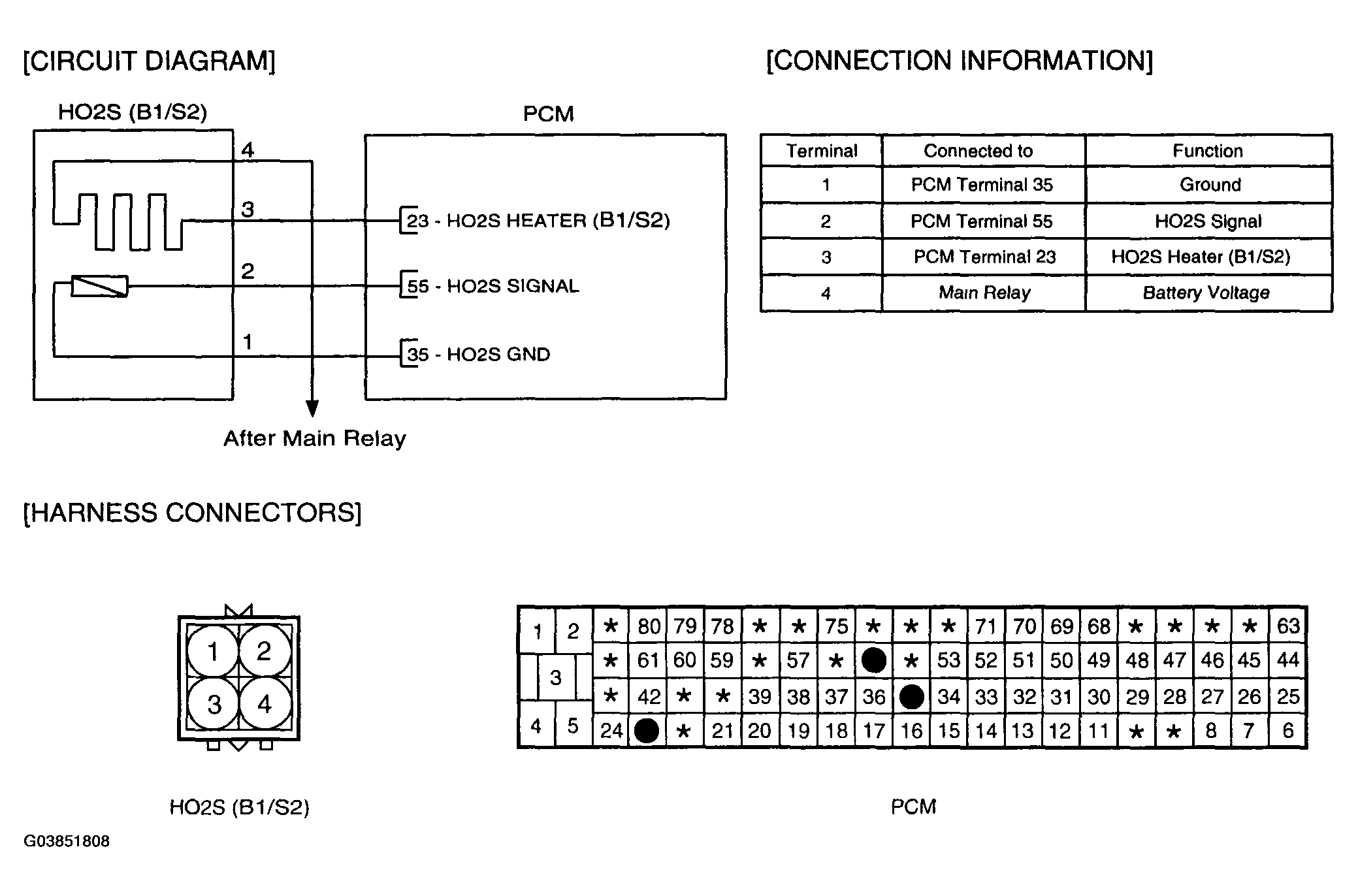

Fig 1: Schematic Diagram - O2 Sensor Circuit Malfunction (Bank1/Sensor2)
G03851808Courtesy of HYUNDAI MOTOR CO.
