Schematic Diagram

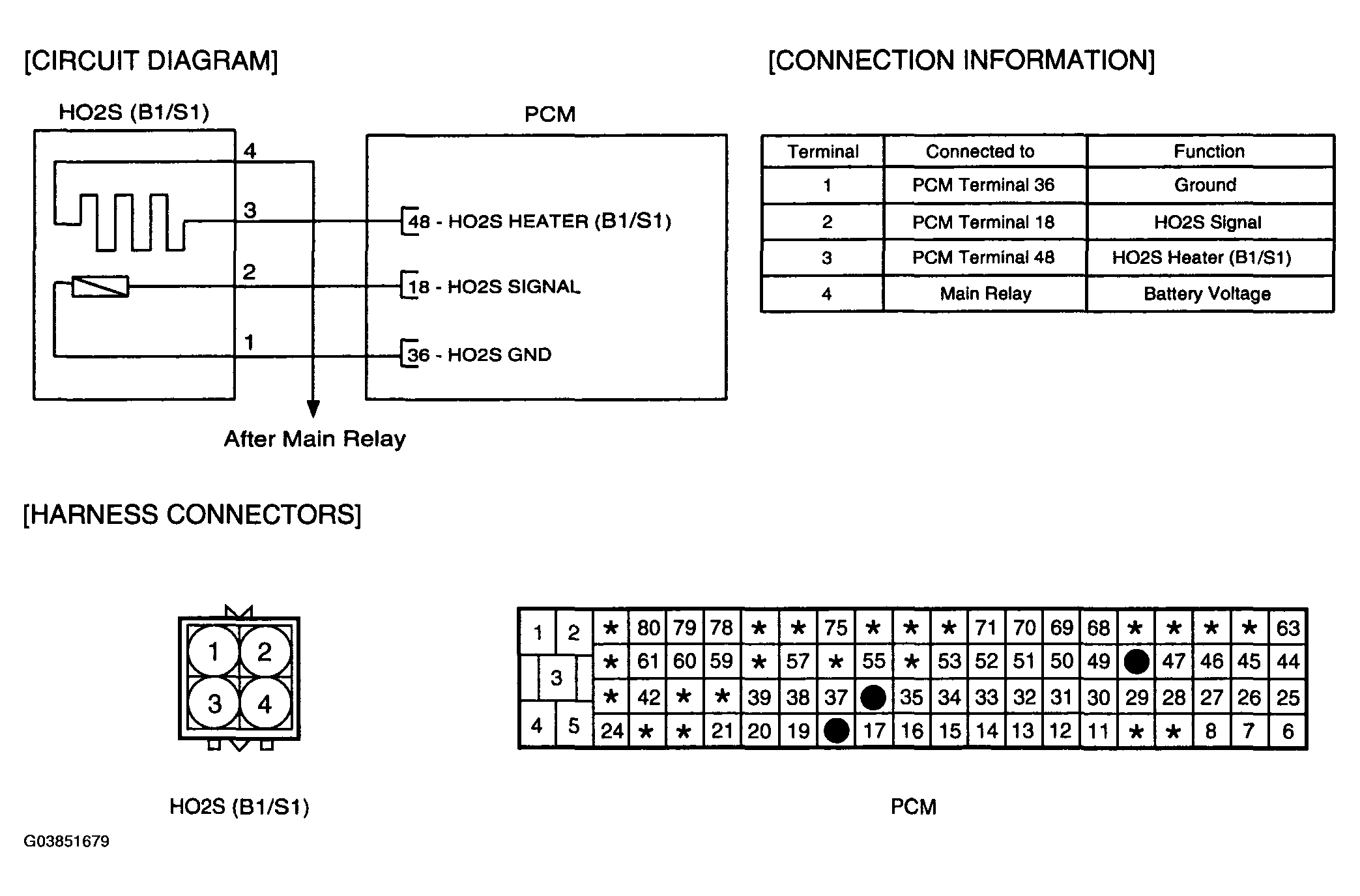

Fig 1: Schematic Diagram - DTC P0032 O2 Sensor Heater Circuit High (Bank 1, Sensor 1)
G03851679Courtesy of HYUNDAI MOTOR CO.
