Harness Inspection Procedures

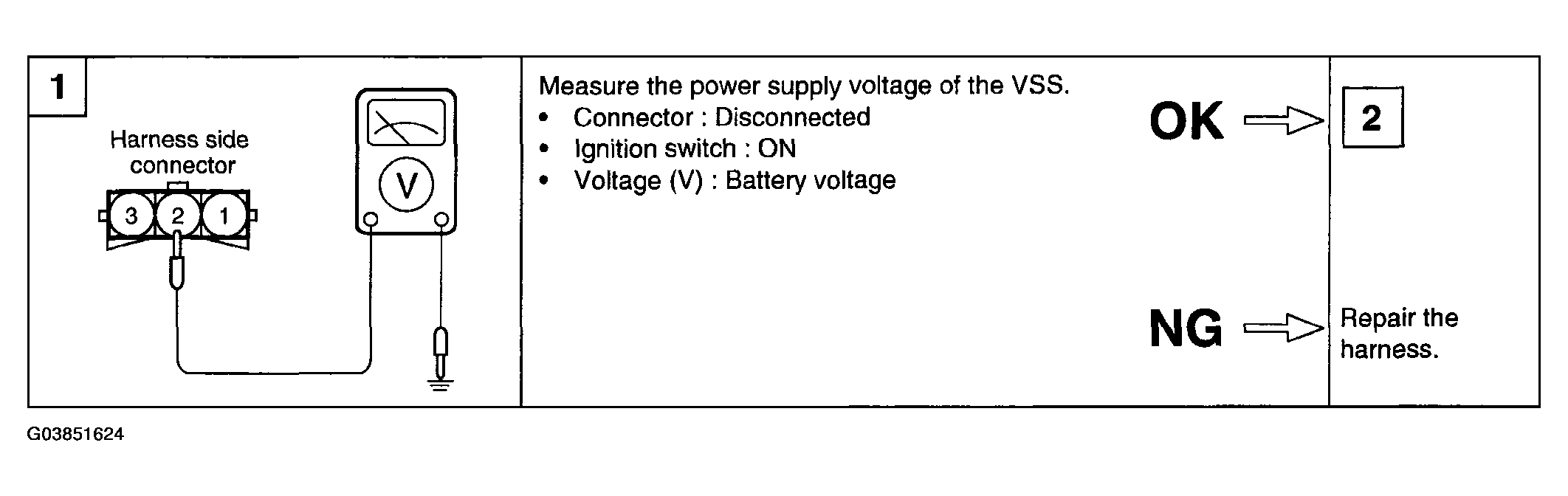

Fig 1: Vehicle Speed Sensor Harness Inspection Procedures Chart (1 Of 3)
G03851624Courtesy of HYUNDAI MOTOR CO.

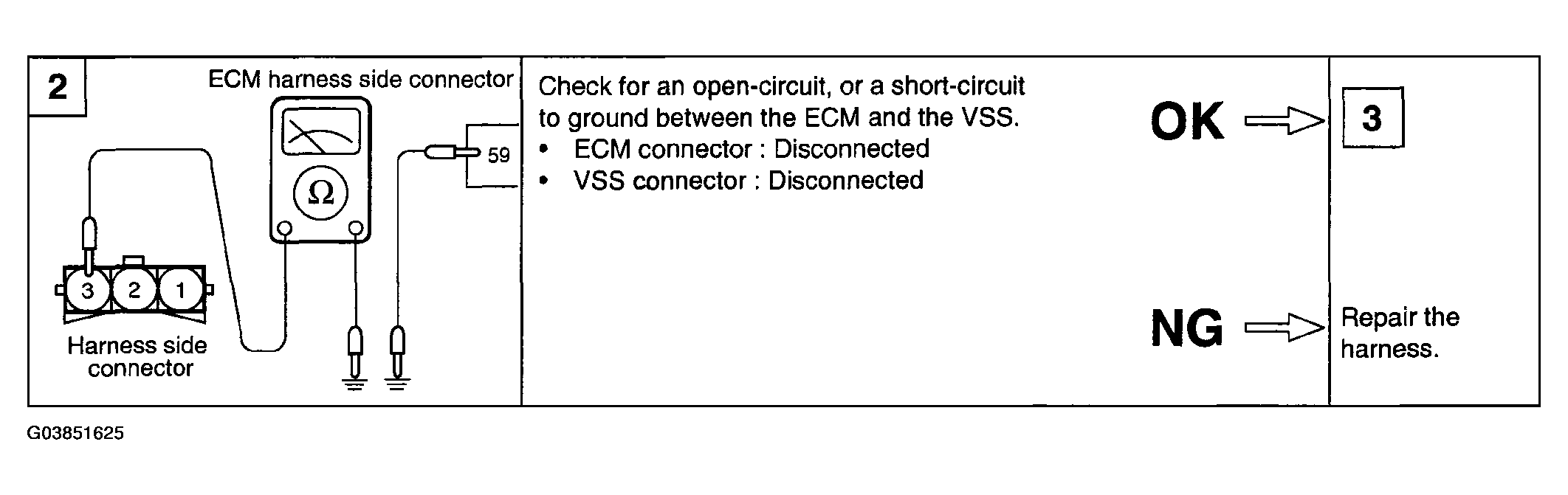

Fig 2: Vehicle Speed Sensor Harness Inspection Procedures Chart (2 Of 3)
G03851625Courtesy of HYUNDAI MOTOR CO.

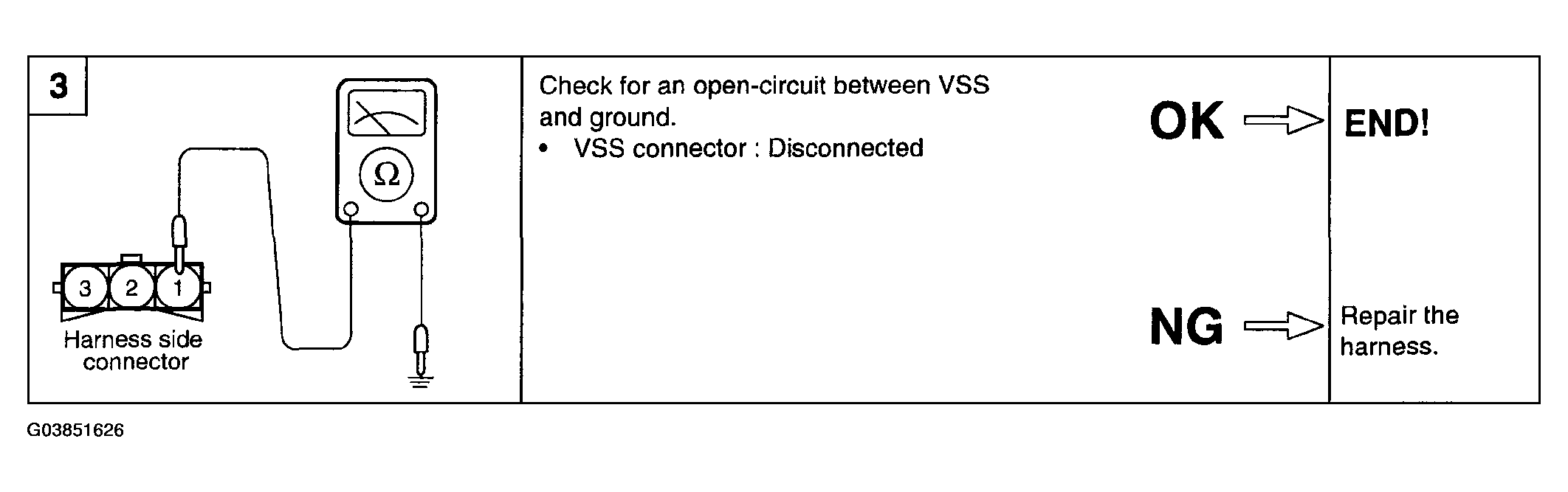

Fig 3: Vehicle Speed Sensor Harness Inspection Procedures Chart (3 Of 3)
G03851626Courtesy of HYUNDAI MOTOR CO.
