Purge Control Solenoid Valve (PCSV): Notes

The evaporative emission canister purge solenoid valve is a duty control type, which controls the flow of purge air from the evaporative emission canister.

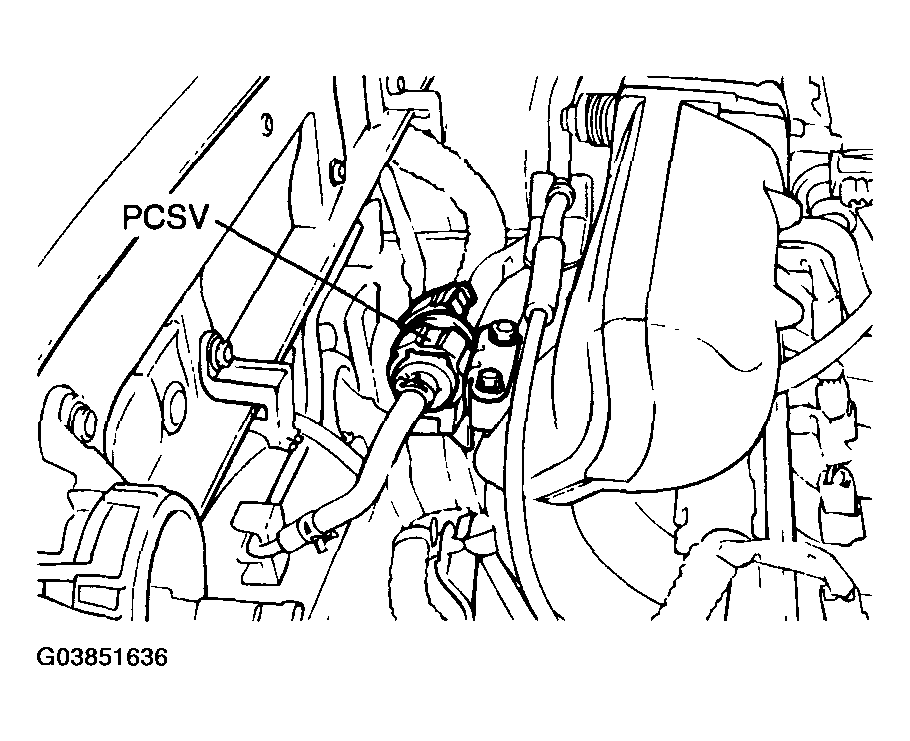

Fig 1: Identifying Purge Control Solenoid Valve Location
G03851636Courtesy of HYUNDAI MOTOR CO.
