Harness Inspection Procedures

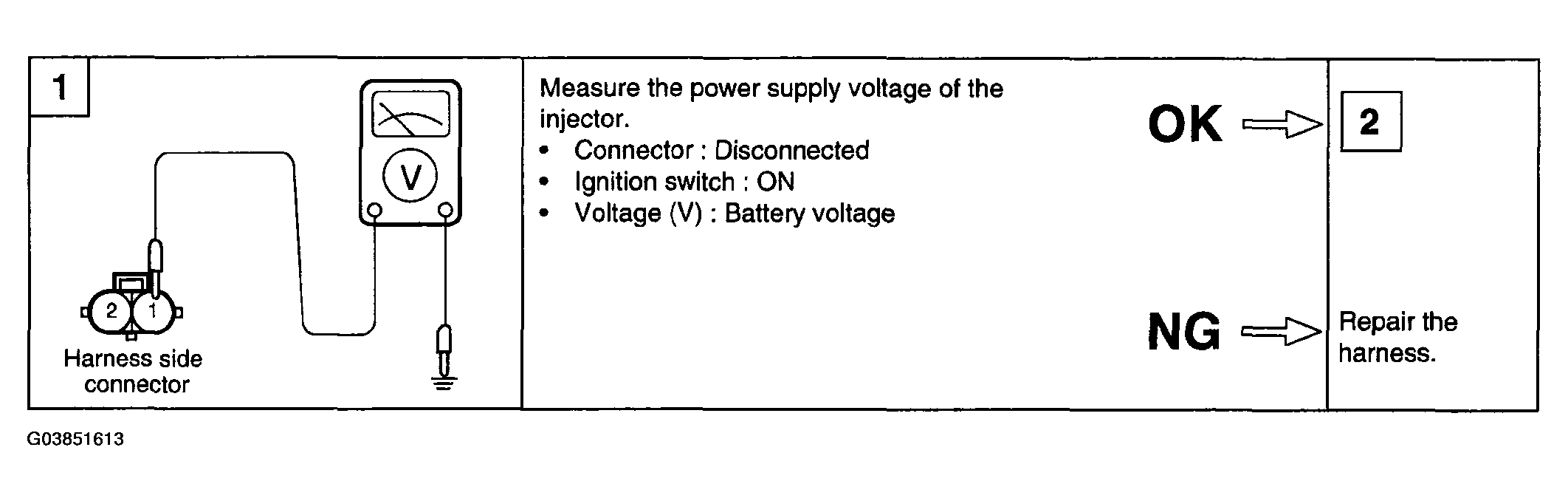

Fig 1: Injectors Harness Inspection Procedures Chart (1 Of 2)
G03851613Courtesy of HYUNDAI MOTOR CO.

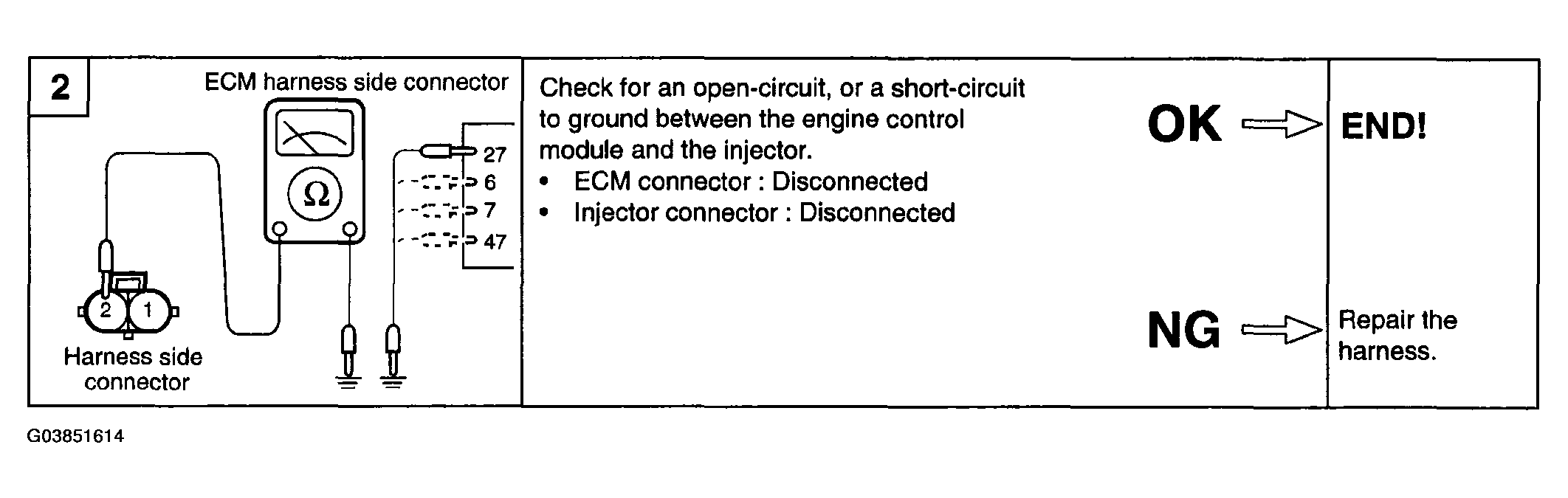

Fig 2: Injectors Harness Inspection Procedures Chart (2 Of 2)
G03851614Courtesy of HYUNDAI MOTOR CO.
