Timing Belt: Components

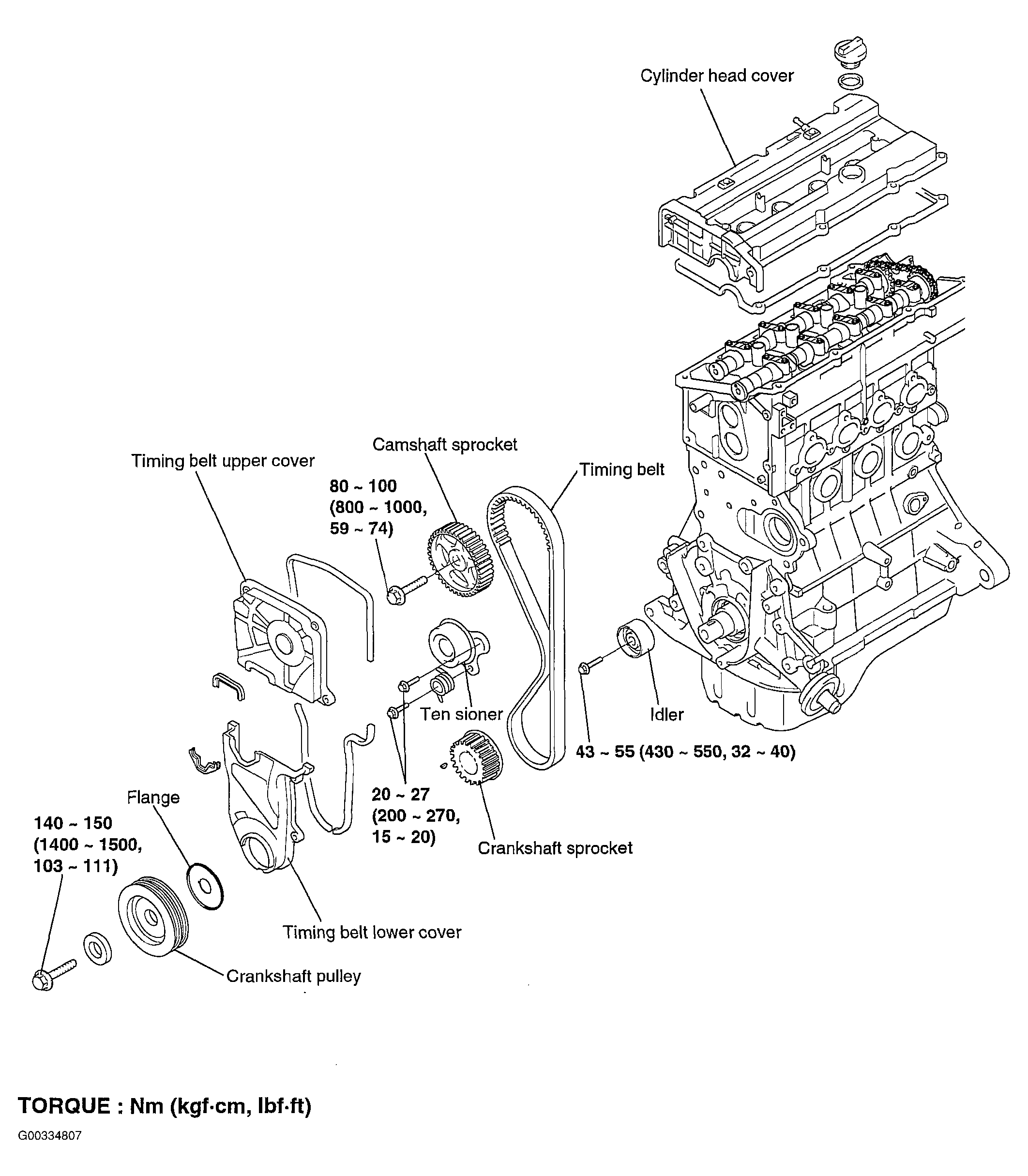

Fig 1: Identifying Timing Belt Components

G00334807

Courtesy of HYUNDAI MOTOR CO.
