Fly Wheel: Components

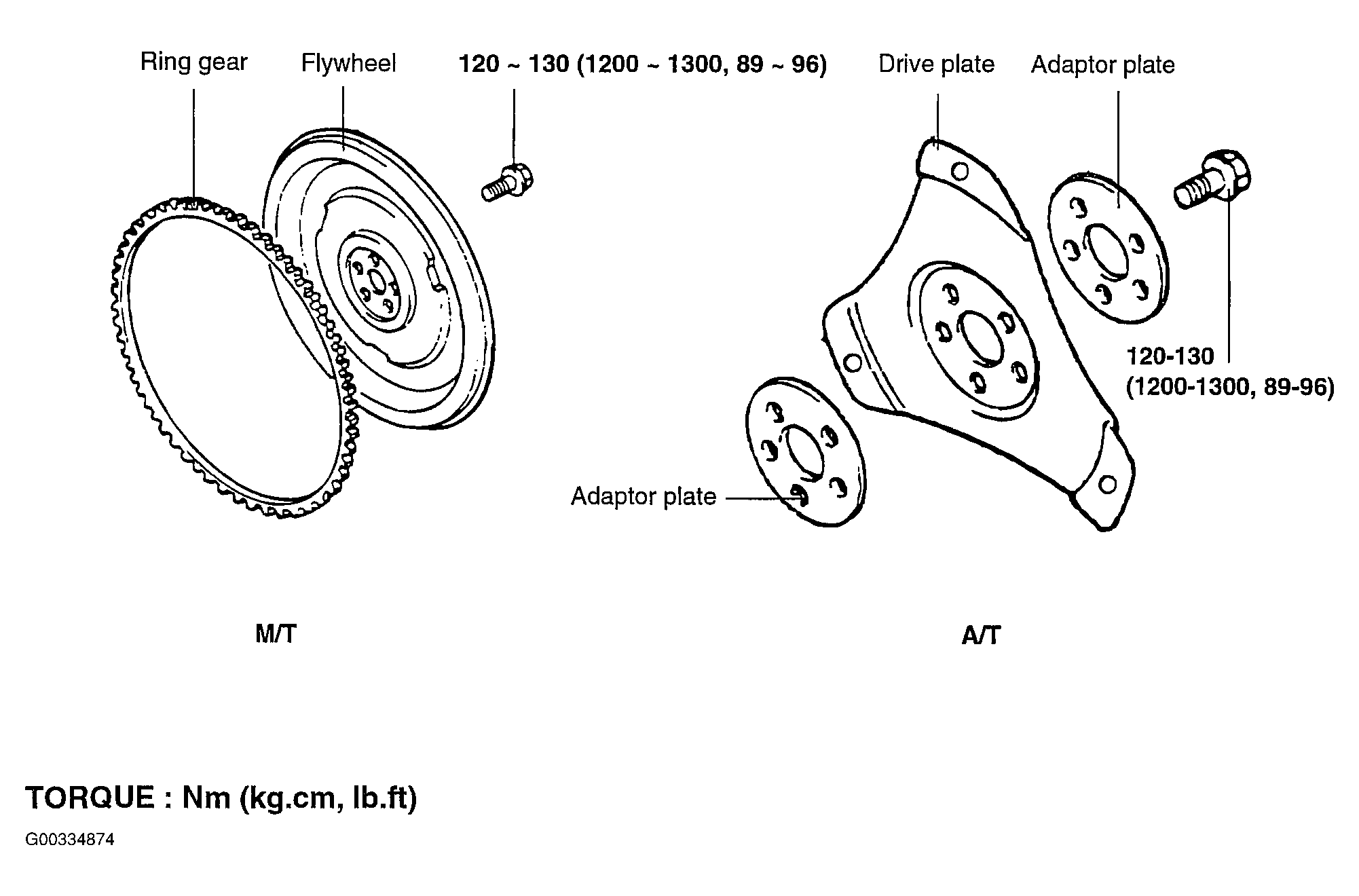

Fig 1: Identifying Flywheel Components
G00334874Courtesy of HYUNDAI MOTOR CO.

M/T: Manual Transmission Vehicles

A/T: Automatic Transmission Vehicles
