Intake Manifold: Components

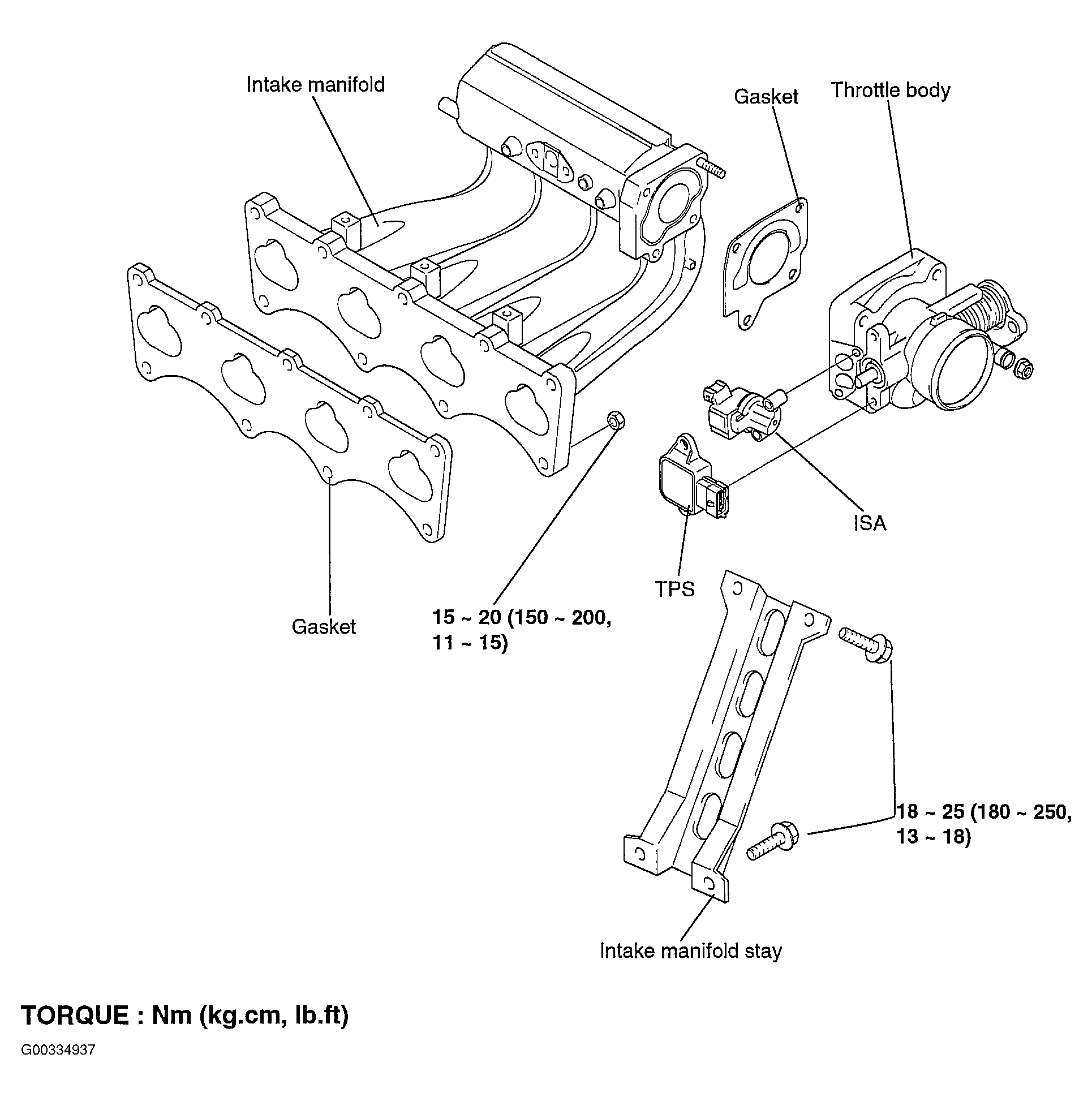

Fig 1: Identifying Intake Manifold Components
G00334937Courtesy of HYUNDAI MOTOR CO.
