Inspection Procedure 2

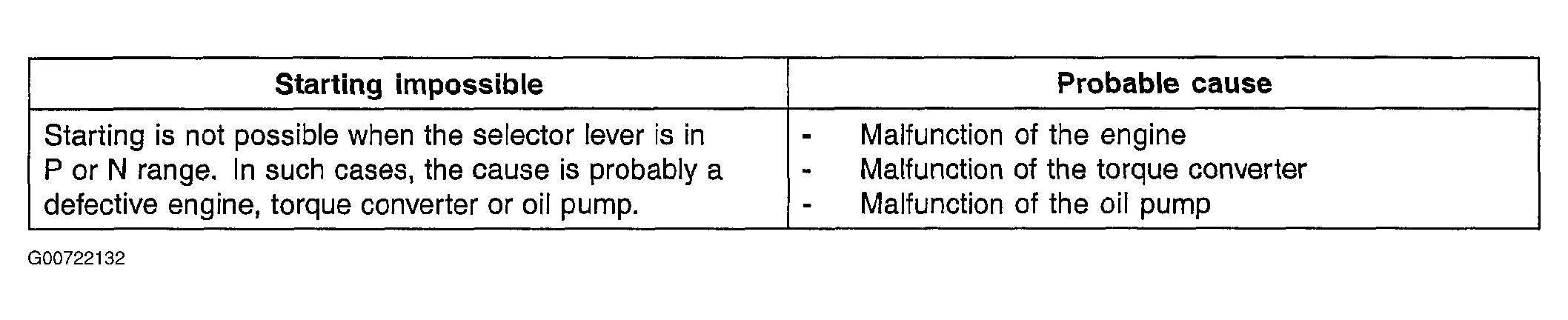

Fig 1: Inspection Procedure 2 (1 Of 2)
G00722132Courtesy of HYUNDAI MOTOR CO.

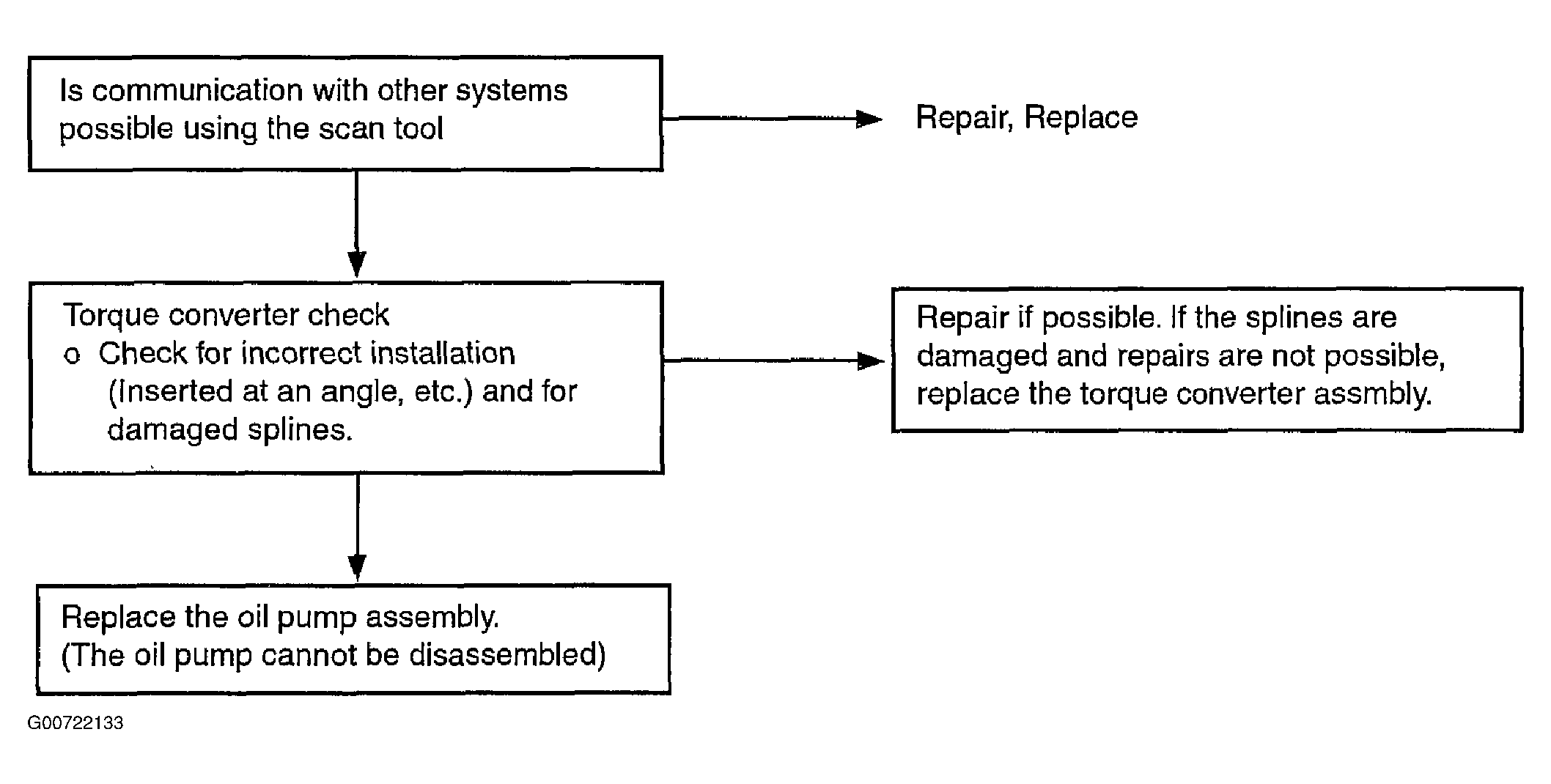

Fig 2: Inspection Procedure 2 (2 Of 2)
G00722133Courtesy of HYUNDAI MOTOR CO.
