Strut Assembly: Components

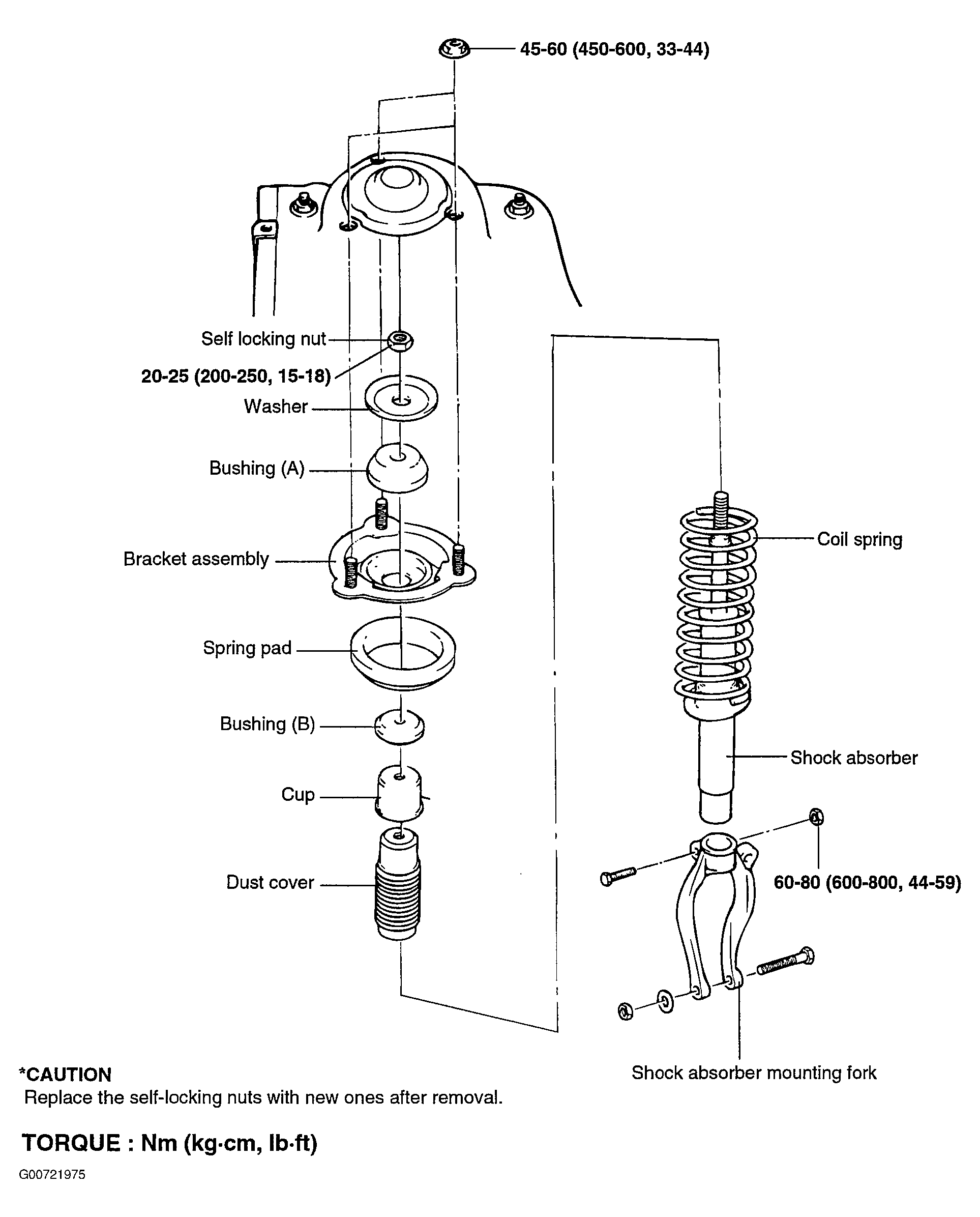

Fig 1: Identifying Strut Assembly Components
G00721975Courtesy of HYUNDAI MOTOR CO.
