Steering Column And Shaft: Installation

  1. Before installation, apply multipurpose grease to the groove inside the bearing and contracting surfaces of the boot and cover assembly.
  2. Connect the steering lower shaft and joint assembly.
    NOTE: When installing, mount the U-joint to the gear box first, then to the steering column shaft.
  3. Install the dust cover to the column shaft assembly.
  4. Install the steering column assembly to the column member assembly.
  5. Install the multifunction switch and connect the connectors.
  6. Install the lower cover and steering column upper and lower shroud.
  7. Install the steering wheel.
    NOTE: When installing, do not use a hammer because the collapsible column shaft could be damaged.

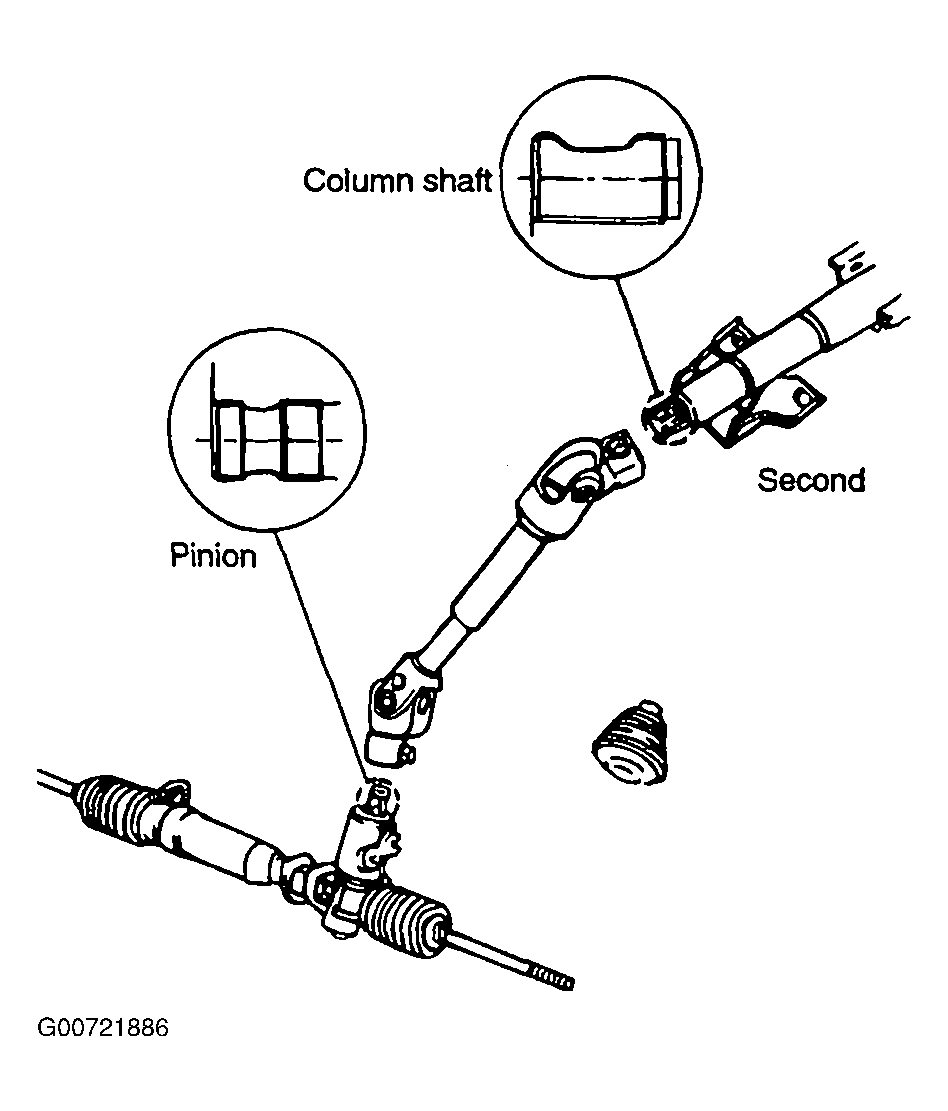

    Fig 1: Connecting Steering Column & Shaft Assembly
    G00721886Courtesy of HYUNDAI MOTOR CO.
