DTC C1503: TCS Switch Error

Fig 1: DTC C1503 Probable Cause Table
G01355147Courtesy of HYUNDAI MOTOR CO.

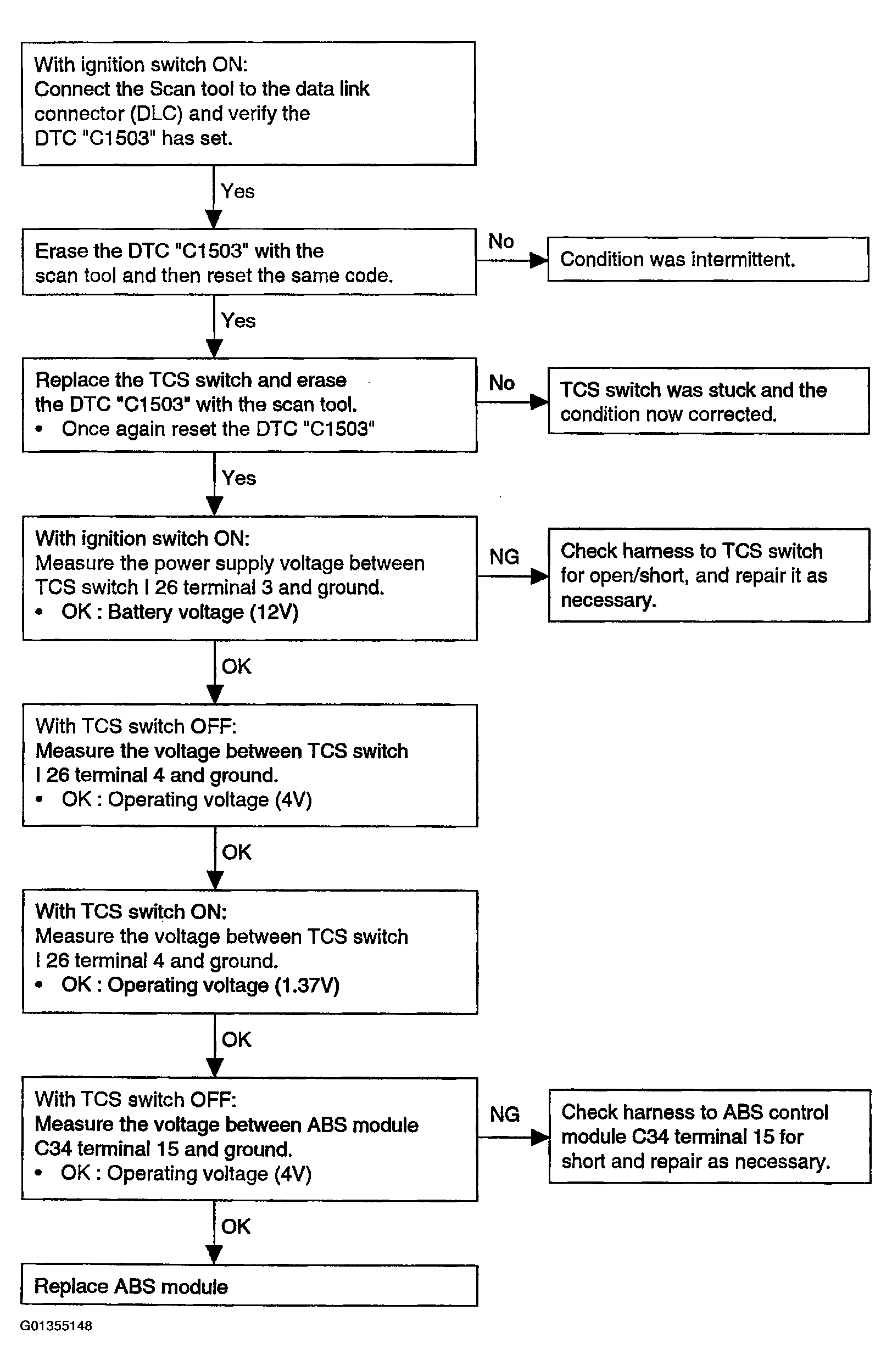

Fig 2: DTC C1503 Diagnostic Flow Chart
G01355148Courtesy of HYUNDAI MOTOR CO.
