Hyundai
>>
2003
>>
XG350 Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Integrated Memory System
>>
IMS (Integrated Memory System)
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

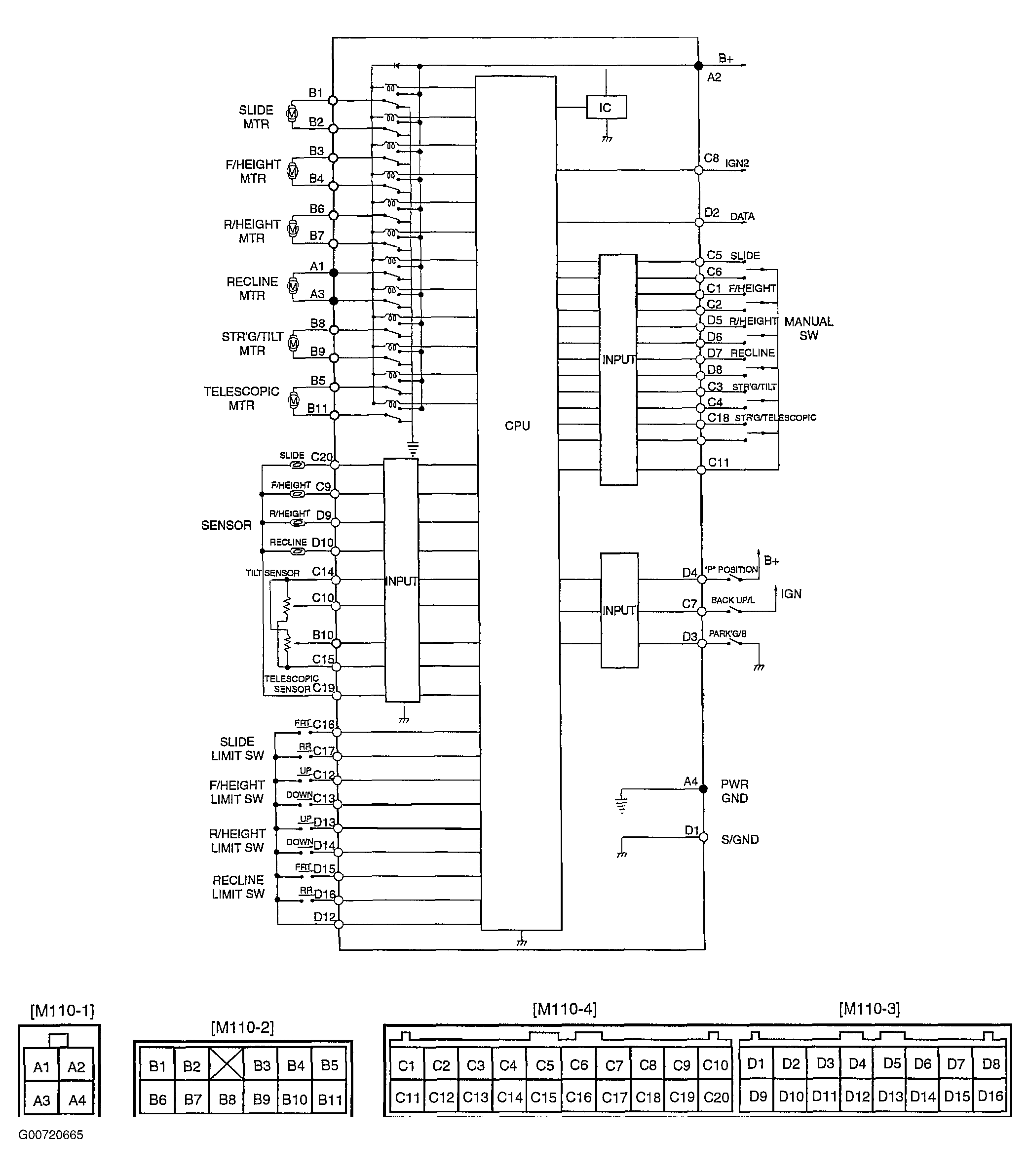

Fig 1: IMS Circuit Overview Diagram
Courtesy of HYUNDAI MOTOR CO.
