Door Module: Locations

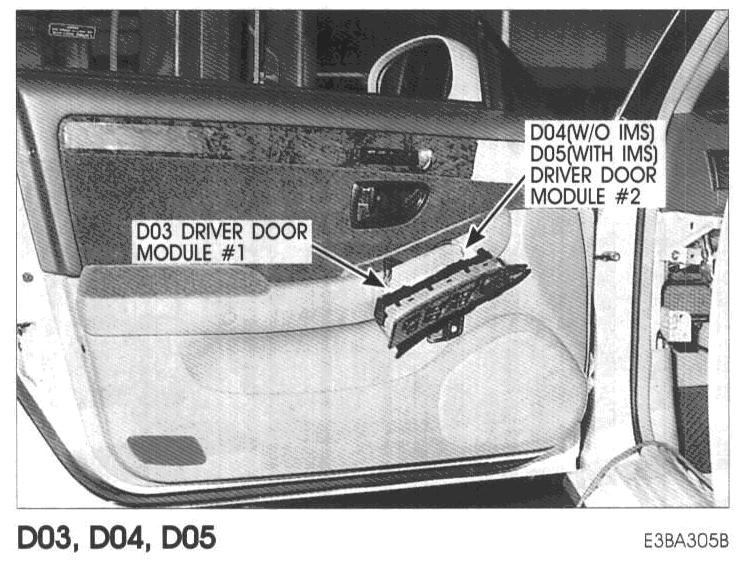

D03 Driver Door Module.1, D04 Driver Door Module.2 (W/O IMS), D05 Driver Door Module.2 (With IMS):

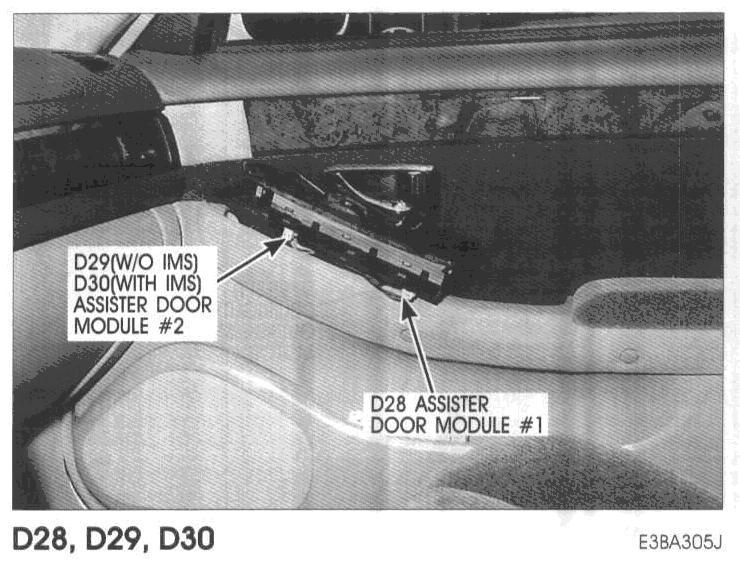

D28 Assister Door Module.1, D29 Assister Door Module.2 (without IMS), D30 Assister Door Module.2 (with IMS):
