Connector Locations

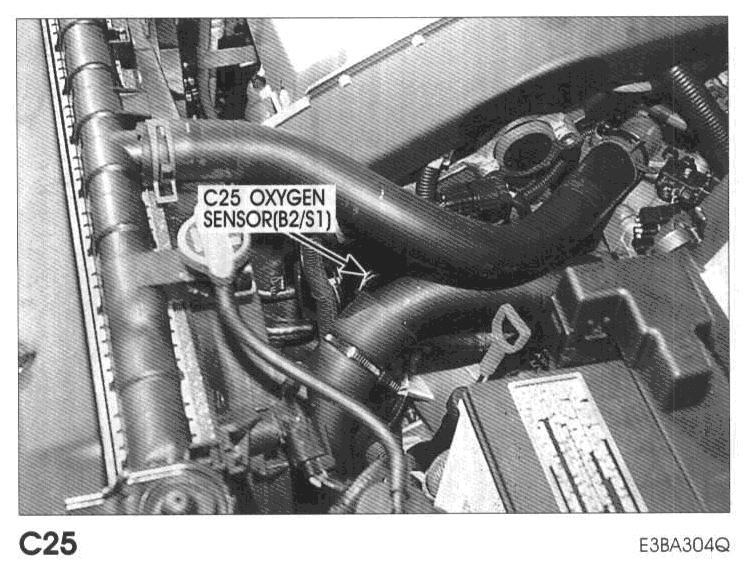

C25 Oxygen sensor (B2/S1):

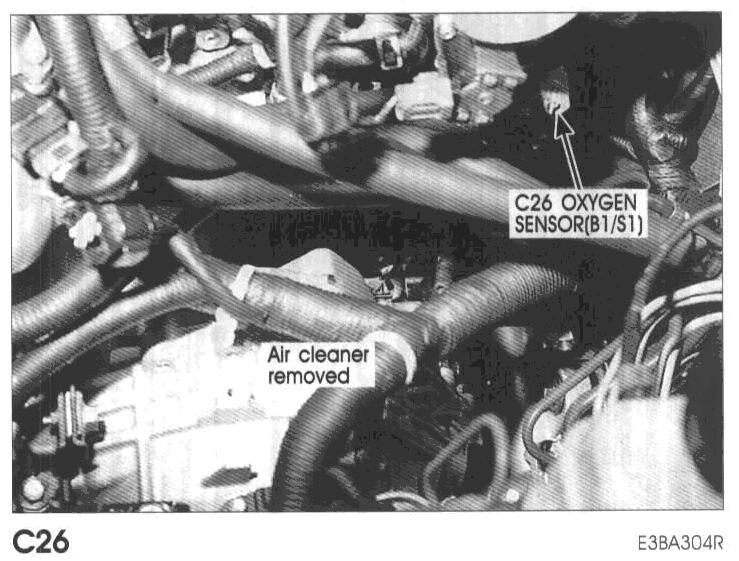

C26 Oxygen sensor (B1/S1):

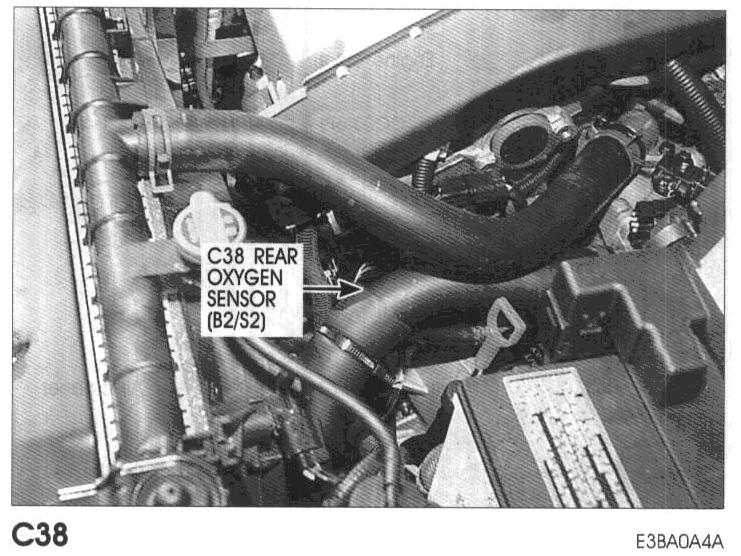

C38 Rear Oxygen Sensor (B2/S2):

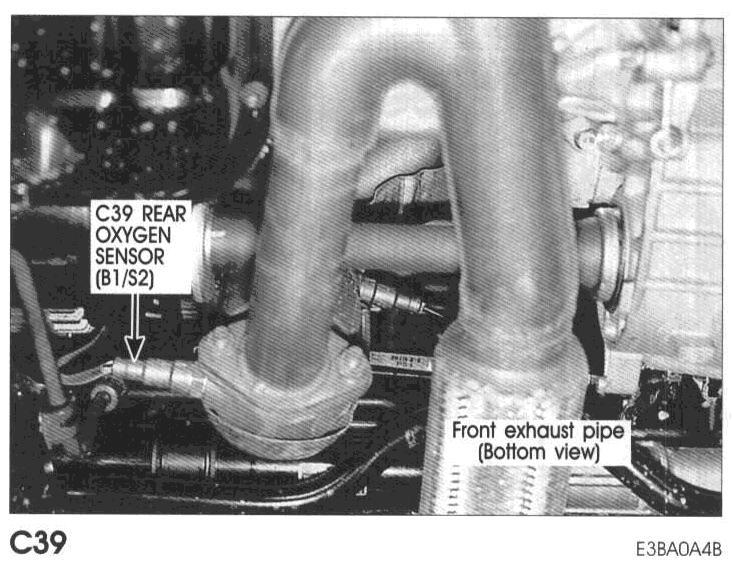

C39 Rear Oxygen Sensor (B1/S2):
