Memory Positioning Systems

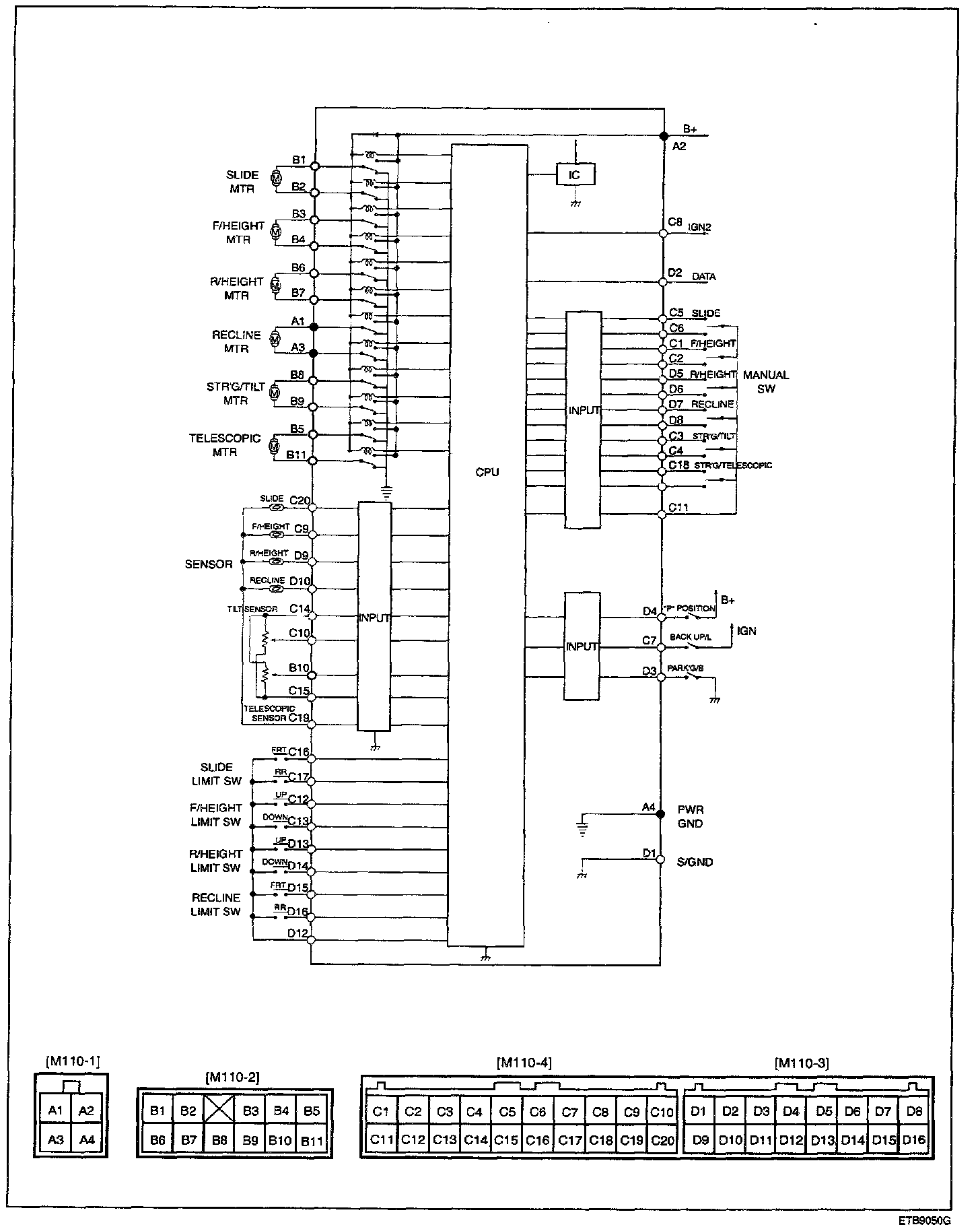

Circuit Diagram:

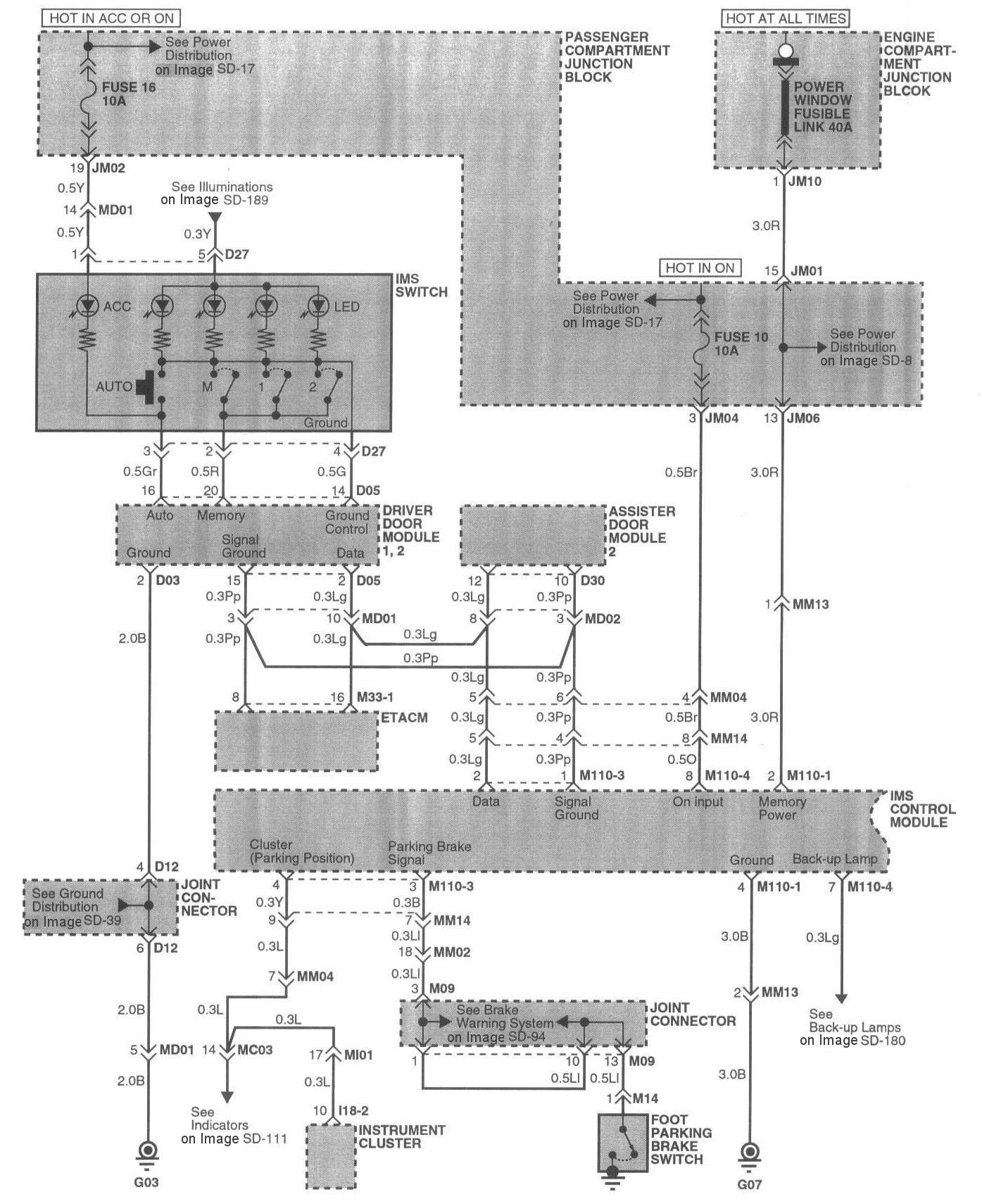

Image SD-136 Integrated Memory System (1):

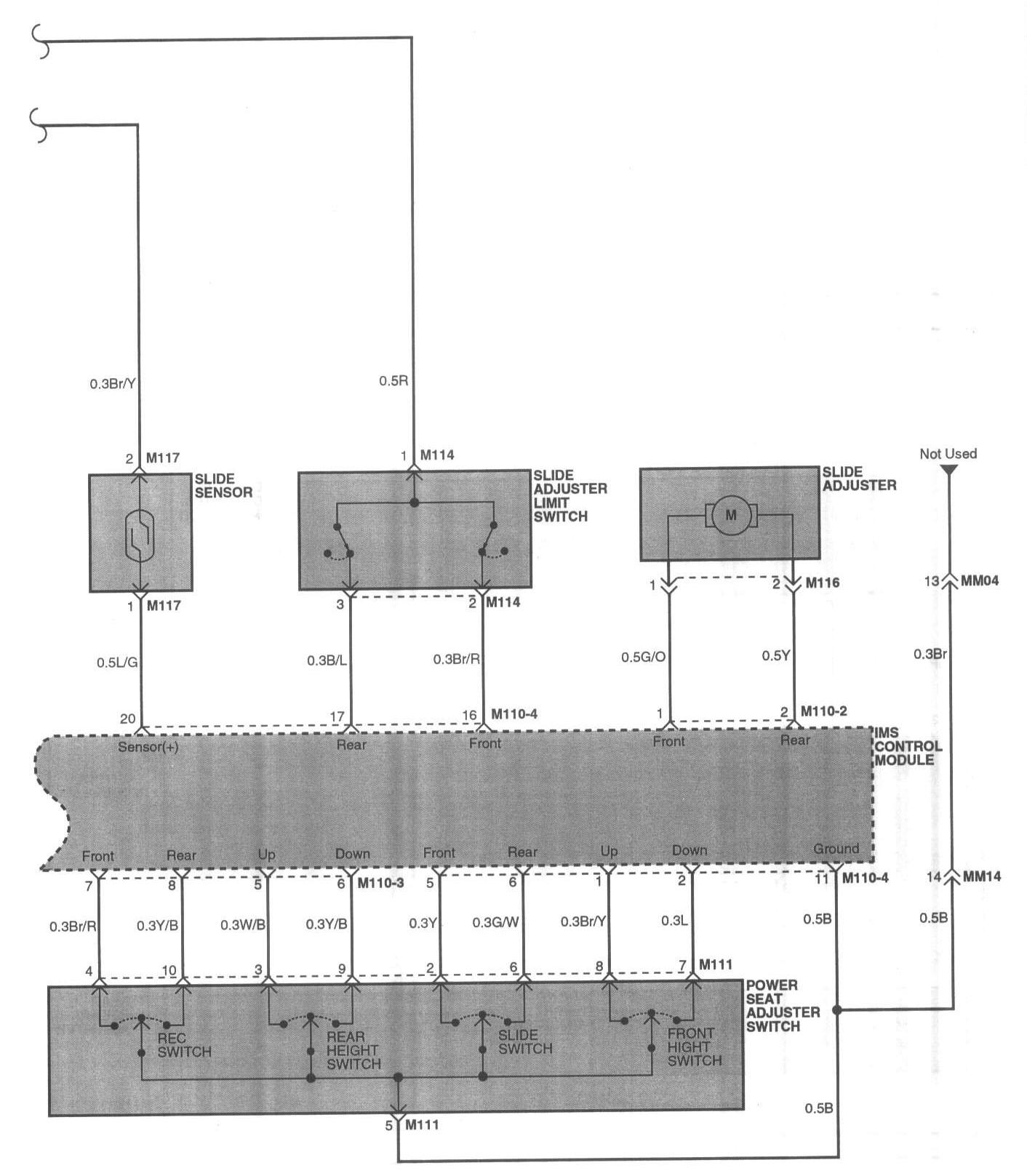

Image SD-137 Integrated Memory System (2):

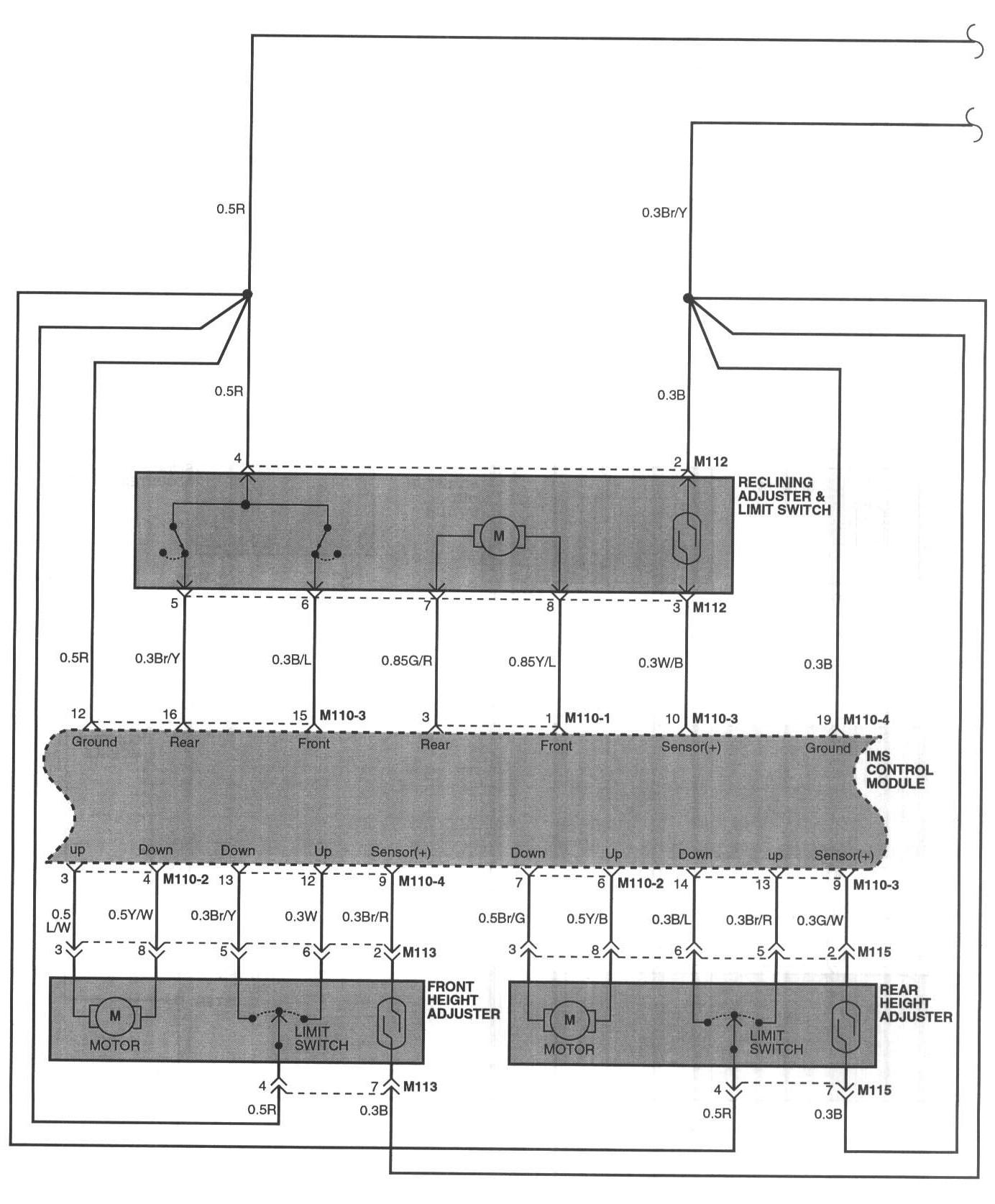

Image SD-138 Integrated Memory System (3):
