Console: Service and Repair

1. Remove the front seat.

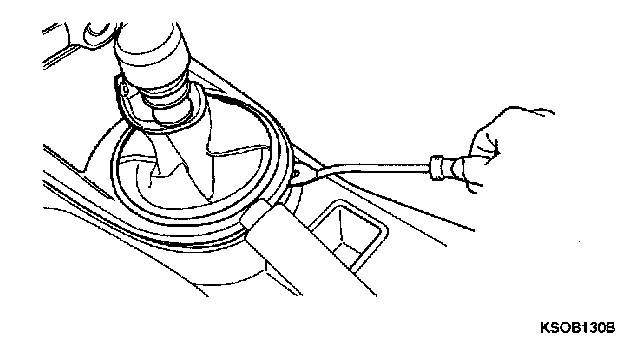

2. Remove the console upper cover.

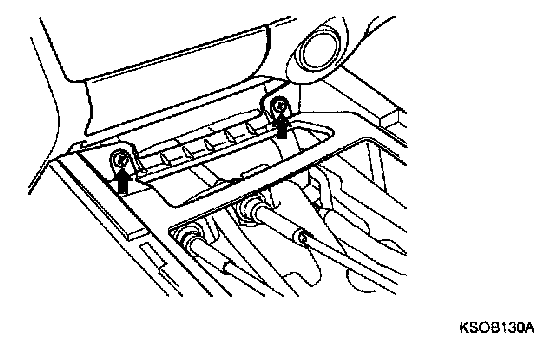

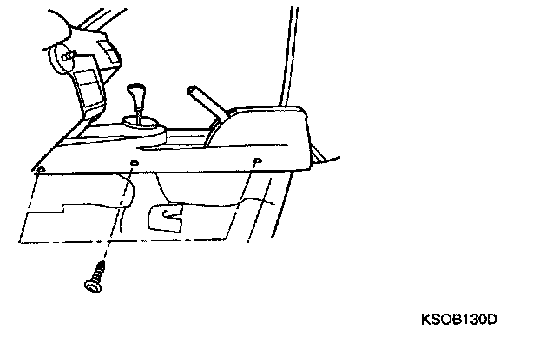

3. Remove the console front mounting screws.




4. Remove the floor console.
5. Installation is the reverse of removal.
