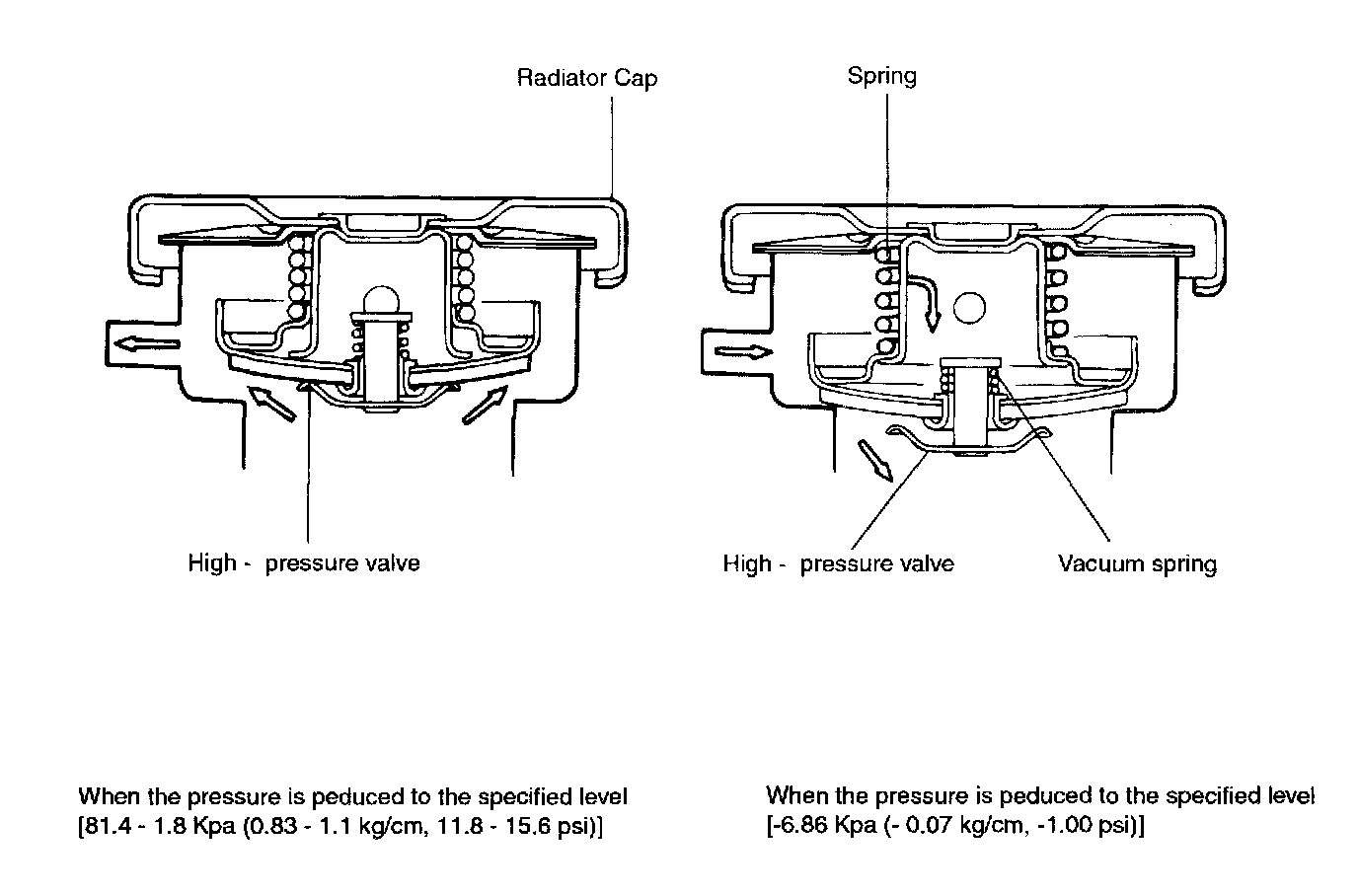

Radiator Cap


RADIATOR CAP 2.0L:






Main valve opening pressure......83 - 110 kPa (12 - 16 psi, 0.83 - 1.1 kg/c M2)

Vacuum valve opening pressure..... - 7 kPa(-1.00 psi, -0.07 kg/cM2) or less
