Manual A/C Compressor Controls: Compressor: Components

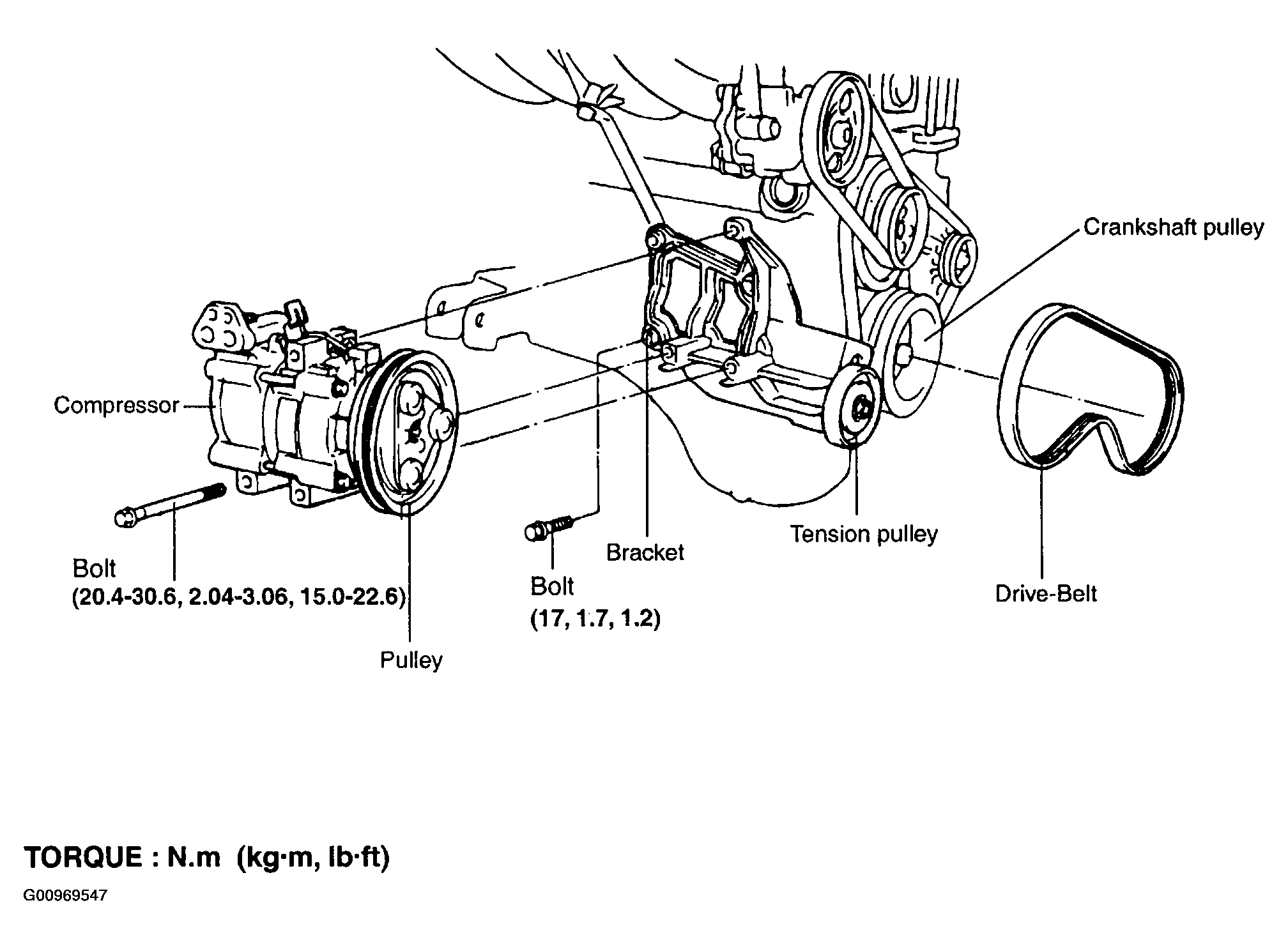

Fig 1: Compressor Components (1 Of 2)
G00969547Courtesy of HYUNDAI MOTOR CO.

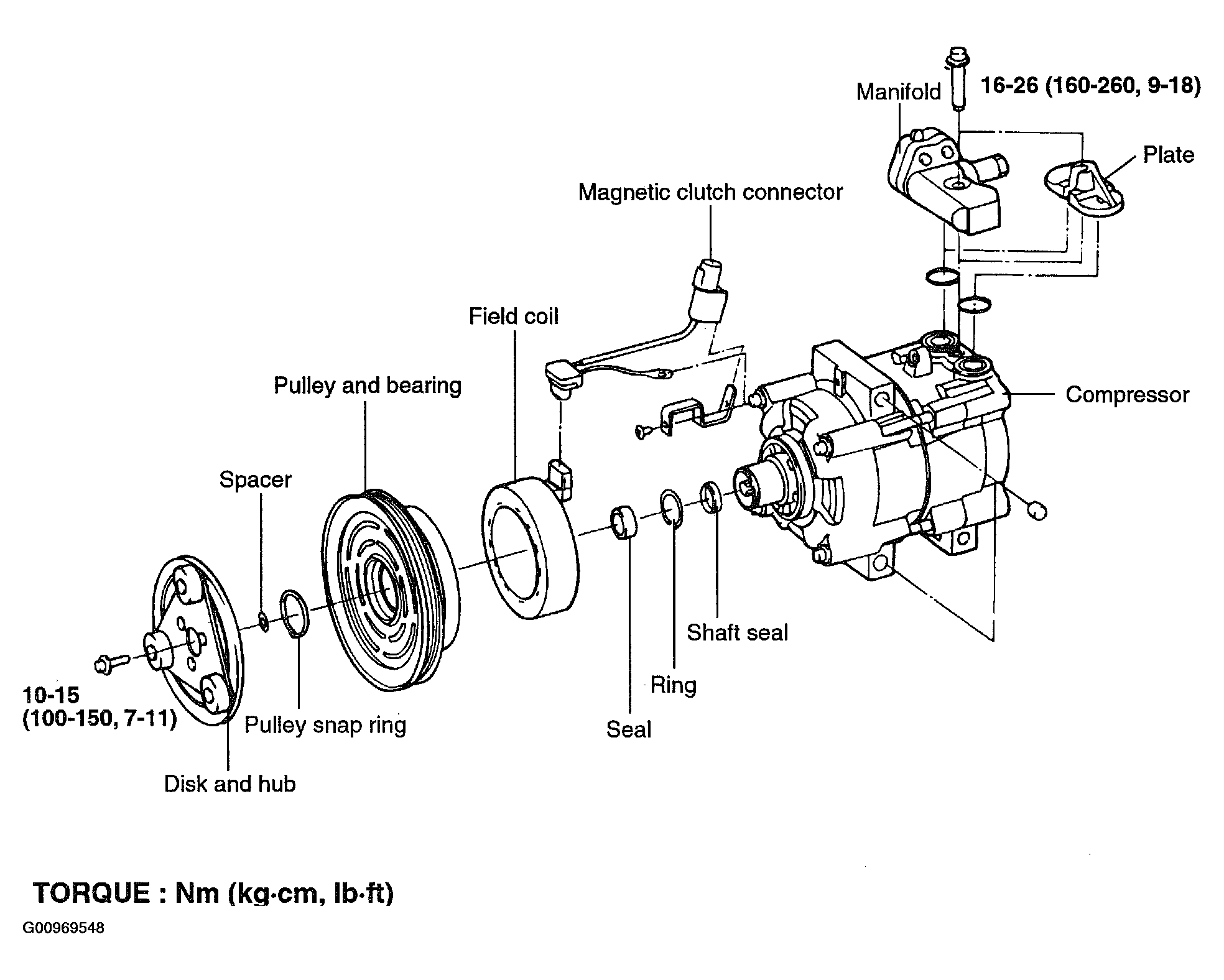

Fig 2: Compressor Components (2 Of 2)
G00969548Courtesy of HYUNDAI MOTOR CO.
